kube-prometheus无法监控kube-schduler和kube-controller-manager

在部署好kube-prometheus之后kube-schduler和kube-controller-manager无法监控（ERROR），这个我们直接看kubernetesControlPlane-serviceMonitorKubeScheduler.yaml和kubernetesControlPlane-serviceMonitorKubeControllerManager.yaml这两个文件

这里我拿其中一个yaml作为说明

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
root@master:~/kube-prometheus/manifests# cat kubernetesControlPlane-serviceMonitorKubeScheduler.yaml
apiVersion: monitoring.coreos.com/v1
kind: ServiceMonitor			# 服务监控
metadata:
  labels:
    app.kubernetes.io/name: kube-scheduler
    app.kubernetes.io/part-of: kube-prometheus
  name: kube-scheduler
  namespace: monitoring
spec:
  endpoints:
  - bearerTokenFile: /var/run/secrets/kubernetes.io/serviceaccount/token
    interval: 30s
    port: https-metrics
    scheme: https
    tlsConfig:
      insecureSkipVerify: true
  - bearerTokenFile: /var/run/secrets/kubernetes.io/serviceaccount/token
    interval: 5s
    metricRelabelings:
    - action: drop
      regex: process_start_time_seconds
      sourceLabels:
      - __name__
    path: /metrics/slis
    port: https-metrics							# kube-scheudler端口
    scheme: https
    tlsConfig:
      insecureSkipVerify: true
  jobLabel: app.kubernetes.io/name
  namespaceSelector:
    matchNames:
    - kube-system								# kube-schduler所在的名称空间
  selector:
    matchLabels:
      app.kubernetes.io/name: kube-scheduler    # 匹配绑定kube-scheduler

在kube-prometheus安装成功之后已经对它俩进行了监控，但是为什么是ERROR状态，这是因为这两服务没有对外开放，同时这两个服务也没有创建service，导致prometheus无法监控到(无法获取到地址)。kubernetes从安全的角度考虑scheduler和ControllerManager只监听127.0.0.1。

解决步骤：

  1. 修改scheduler和controllermanager的配置文件，将127.0.0.1改为0.0.0.0

    1
    2
    3
    root@master:/etc/kubernetes/manifests# ls
    etcd.yaml  kube-apiserver.yaml  kube-controller-manager.yaml  kube-scheduler.yaml
    root@master:/etc/kubernetes/manifests# vi kube-scheduler.yaml
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    spec:
      containers:
      - command:
        - kube-scheduler
        - --authentication-kubeconfig=/etc/kubernetes/scheduler.conf
        - --authorization-kubeconfig=/etc/kubernetes/scheduler.conf
        - --bind-address=0.0.0.0		# 原先是127.0.0.1 现在修改为0.0.0.0
        - --kubeconfig=/etc/kubernetes/scheduler.conf
        - --leader-elect=true
        image: registry.k8s.io/kube-scheduler:v1.31.4
        imagePullPolicy: IfNotPresent
        livenessProbe:
          failureThreshold: 8
          httpGet:
            host: 127.0.0.1
            path: /healthz
            port: 10259
            scheme: HTTPS
          initialDelaySeconds: 10

    controllermanager同理这里略过

  2. 为这两个服务创建service资源

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    apiVersion: v1
    kind: Service
    metadata:
      name: kube-scheduler
      namespace: kube-system
      labels:
        app.kubernetes.io/name: kube-scheduler				# 这里的标签要和上面ServiceMonitor的一致才能匹配上
    spec:
      selector:
        component: kube-scheduler							# 这里是scheduler容器的标签
      ports:
        - name: https-metrics								# 这里的端口名称也要和ServiceMonitor的一致才能匹配上
          protocol: TCP
          port: 10259
          targetPort: 10259
    ---
    apiVersion: v1
    kind: Service
    metadata:
      name: kube-controller-manager
      namespace: kube-system
      labels:
        app.kubernetes.io/name: kube-controller-manager
    spec:
      selector:
        component: kube-controller-manager
      ports:
        - name: https-metrics
          protocol: TCP
          port: 10257
          targetPort: 10257

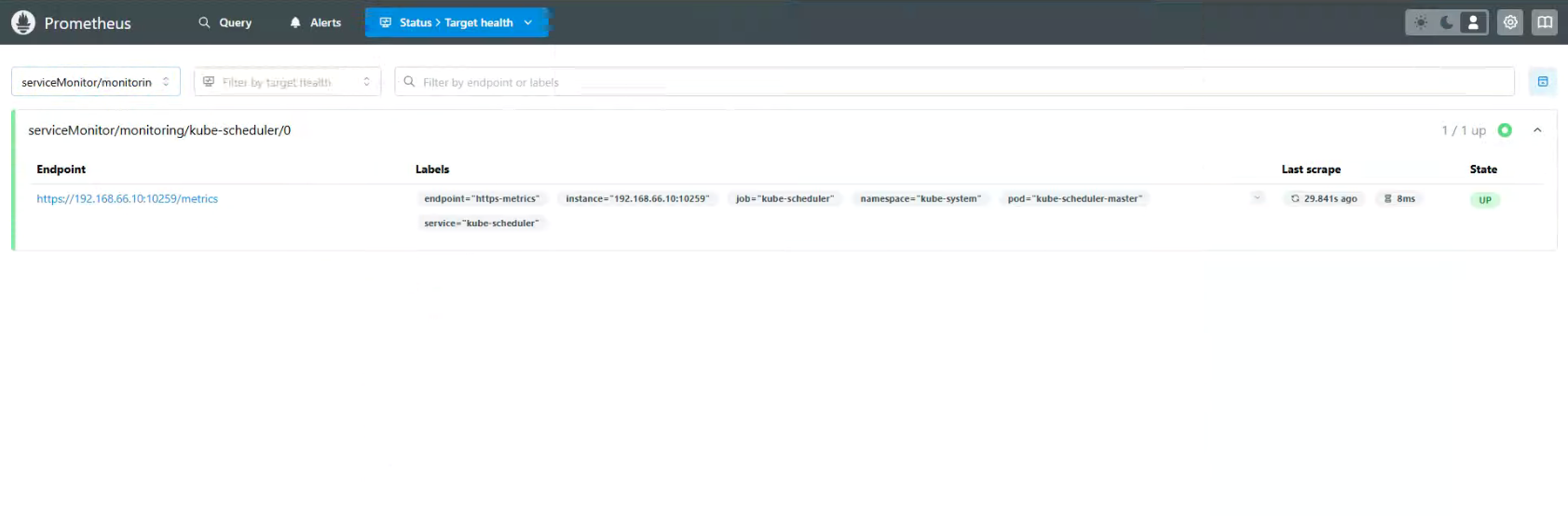

  3. 应用上面的service正常情况这个问题就解决了

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    root@master:~# kubectl get svc -n kube-system
    NAME                      TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)                        AGE
    cilium-envoy              ClusterIP   None             <none>        9964/TCP                       5d23h
    hubble-peer               ClusterIP   10.102.240.168   <none>        443/TCP                        5d23h
    hubble-relay              ClusterIP   10.98.161.138    <none>        80/TCP                         17h
    hubble-ui                 ClusterIP   10.104.108.46    <none>        80/TCP                         17h
    kube-controller-manager   ClusterIP   10.103.25.82     <none>        10257/TCP                      18h
    kube-dns                  ClusterIP   10.96.0.10       <none>        53/UDP,53/TCP,9153/TCP         5d23h
    kube-scheduler            ClusterIP   10.103.174.243   <none>        10259/TCP                      18h
    kubelet                   ClusterIP   None             <none>        10250/TCP,10255/TCP,4194/TCP   3d6h
    metrics-server            ClusterIP   10.105.75.139    <none>        443/TCP                        3d6h

    53b51491-f000-49e1-8871-6e340743cda9
