K8S证书分析
证书
对证书没有基础的先去补一下，前置知识：https://www.xiaowangc.com/2022/08/29/openssl/
我们在通过kubeadm方式安装集群后可以在路径/etc/kubernetes目录下发现文件，他们分别是
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
| [root@master kubernetes]# tree
.
├── admin.conf # kubeconfig文件 暂不做说明
├── controller-manager.conf # kubeconfig文件 暂不做说明
├── kubelet.conf # kubeconfig文件 暂不做说明
├── manifests
│ ├── etcd.yaml # ETCD配置文件
│ ├── kube-apiserver.yaml # apiserver配置文件
│ ├── kube-controller-manager.yaml # CM配置文件
│ └── kube-scheduler.yaml # scheduler配置文件
├── pki
│ ├── apiserver.crt # apiserver组件证书通过kubernetes进行签发
│ ├── apiserver-etcd-client.crt # 用于apiserver连接etcd的证书(etcd客户端认证)，通过etcd-ca进行签发
│ ├── apiserver-etcd-client.key # etcd客户端(apiserver)的私钥
│ ├── apiserver.key # apiserver组件私钥
│ ├── apiserver-kubelet-client.crt # 通过kubernetes根签发的用于kubelet身份验证
│ ├── apiserver-kubelet-client.key # kubelet组件的私钥
│ ├── ca.crt ## kubernetes根证书 `CA`
│ ├── ca.key ## kubernetes私钥
│ ├── etcd
│ │ ├── ca.crt ## etcd根证书 `CA`
│ │ ├── ca.key ## etcd私钥
│ │ ├── healthcheck-client.crt # 通过Pod方式部署etcd需要用到此证书，用于对etcd服务做存活探测
│ │ ├── healthcheck-client.key # 存活探测私钥
│ │ ├── peer.crt # etcd集群中节点互相通信使用的证书
│ │ ├── peer.key # 邻居私钥
│ │ ├── server.crt # etcd服务器证书通过etcd根进行签发
│ │ └── server.key # etcd组件私钥
│ ├── front-proxy-ca.crt # 代理端根证书 `CA`
│ ├── front-proxy-ca.key # 代理端私钥
│ ├── front-proxy-client.crt # 代理客户端证书由代理CA进行签发
│ ├── front-proxy-client.key # 代理客户端私钥
│ ├── sa.key # 私钥 没有关联单独生成即可
│ └── sa.pub # 公钥 没有关联单独生成即可
└── scheduler.conf # kubeconfig文件 暂不做说明
3 directories, 30 files
|

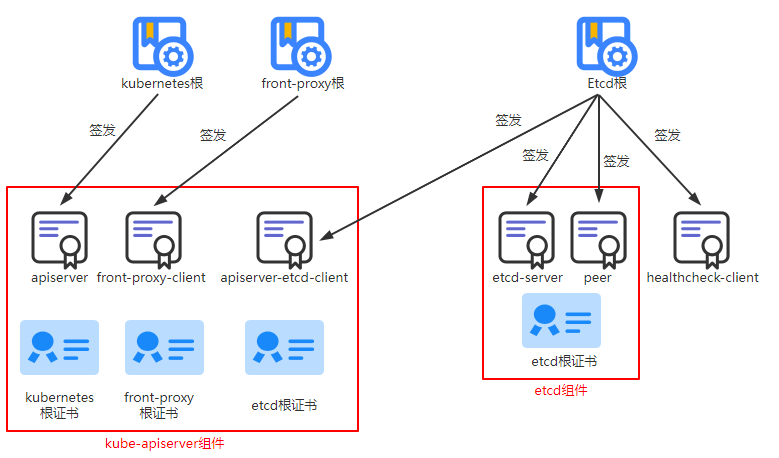

证书关系
通过仔细分析kubeadm生成证书可以得出上图的关系，线条指向是证书签发信任关系，整个红色的方框是组件所需要的所有证书
- kubernetes根为apiserver签发证书
- front-proxy根为client签发证书
- etcd根为etcd-client签发证书
- etcd根为etcd-server签发证书
- etcd根为peer签发证书
- etcd根为healthehck-client签发证书
kubernetes CA详细信息
对证书结构或信息不了解的请仔细查看此小结的注释，后面不做注释(都是重复没啥必要)
通过命令：openssl x509 -in 证书名 -noout -text 即可查看证书详细信息
通过上述命令对/etc/kubernetes/pki下的证书依次进行分析并创建一致的证书
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
| Certificate: # 证书
Data: # 数据
Version: 3 (0x2) # 版本 3
Serial Number: 0 (0x0) # 序号 0
Signature Algorithm: sha256WithRSAEncryption # 签名算法 sha256
Issuer: CN = kubernetes # 发行者： CN=kubernetes
Validity # 有效期
Not Before: Sep 17 10:20:04 2022 GMT # 创建时间
Not After : Sep 14 10:20:04 2032 GMT # 失效时间
Subject: CN = kubernetes # 主体：CN = kubernetes
Subject Public Key Info: # 主体公钥信息
Public Key Algorithm: rsaEncryption # 公钥算法rsa
RSA Public-Key: (2048 bit) # RSA公钥：2048位
Modulus:
00:a4:90:11:1a:ed:40:fa:4e:ef:5e:13:7a:7c:43:
f5:e1:6d:c2:79:b8:41:55:e7:cf:f6:1b:3c:d2:f8:
35:4b:b0:7e:a0:8e:31:7e:74:6c:c3:25:6e:76:36:
93:38:5f:89:12:5d:22:55:3e:cf:c1:15:f9:d6:f3:
5f:64:f0:05:35:dd:ab:b6:4d:c7:5a:af:96:f9:59:
9d:df:53:72:66:30:cb:3c:89:04:40:cd:57:b7:f4:
a1:e6:a5:4c:80:74:d1:e4:1a:fd:bd:55:cb:e3:bf:
47:8e:47:9d:cb:96:3f:c2:ec:8a:95:ab:c9:2a:f9:
67:88:ab:cb:f5:5b:fa:7a:71:3a:55:32:cd:2f:e9:
9a:e5:c0:36:01:4f:7a:2f:cb:ef:52:22:2d:a9:02:
7b:a7:cc:0f:e2:f4:cc:5c:ca:06:d7:94:c9:99:d8:
7c:bf:65:ad:59:b5:c6:63:d1:e4:4b:c6:63:b7:19:
e7:dc:1b:92:39:a8:c5:36:b9:9f:b5:0e:e3:32:7c:
7f:06:e3:36:1e:2e:29:6e:e3:f3:3a:23:e5:26:36:
03:41:47:80:34:67:bf:de:90:a9:53:51:24:1f:a1:
73:e0:f4:90:b3:03:bd:d1:aa:0b:80:19:65:2d:82:
98:22:90:00:c1:45:40:81:47:db:6d:3e:00:5c:7f:
e1:cf
Exponent: 65537 (0x10001)
X509v3 extensions: # x509v3 扩展
X509v3 Key Usage: critical # x509v3 密钥用法
Digital Signature, Key Encipherment, Certificate Sign # 数字签名、密钥加密、证书签名
X509v3 Basic Constraints: critical # 基本约束
CA:TRUE # 是否是CA根
X509v3 Subject Key Identifier: # 密钥标识符
2B:F7:47:CB:41:4C:A9:B4:DA:93:18:30:E0:EA:10:7E:31:26:04:4A
X509v3 Subject Alternative Name: # 主体名称
DNS:kubernetes # DNS:kubernetes
Signature Algorithm: sha256WithRSAEncryption # 签名算法： sha256
6c:69:8e:0a:6b:e4:d7:e5:ab:60:40:77:fa:2e:48:09:b1:5f:
6d:95:fd:63:5b:61:dd:c2:68:fe:ae:3f:47:1a:c0:0c:15:da:
8d:5c:ca:7a:f7:a5:53:a4:c6:8d:61:eb:34:74:39:91:a8:e0:
18:ac:91:e6:01:24:fb:1d:ed:cc:97:a4:37:a5:c7:cb:e8:77:
f4:7b:e7:90:fd:36:0d:3d:7b:69:58:44:08:9f:1c:e3:1e:cb:
f9:fb:5e:80:4a:e5:c4:11:38:94:24:7d:f9:68:69:a0:03:56:
5e:8f:b8:f4:79:ad:a4:20:b6:c1:c7:78:4d:16:fd:a3:7e:8d:
4e:3e:a3:fb:d3:47:13:6f:b2:e2:83:11:95:9c:66:b6:e9:37:
d0:50:7f:91:6c:3a:81:34:d9:69:d6:17:f9:d0:53:db:29:57:
d7:e3:ad:44:81:f7:45:e3:2e:61:6d:e0:44:26:9e:b9:c8:67:
87:35:37:a3:6b:8c:22:b7:34:c3:2d:61:bb:50:e9:4c:fa:de:
a0:96:e2:67:dd:87:ea:84:fc:2a:de:18:ce:2e:39:12:b6:a5:
c5:7a:d1:b4:06:f5:74:bc:50:26:30:f2:67:2e:21:09:cd:4e:
2b:0d:32:2b:34:97:e7:73:52:e4:7f:8d:a4:58:29:0d:ad:19:
9d:74:65:42
|
kubernetes CA创建方法
对参数不了解的请看
1
2
3
4
5
6
7
8
9
| -extensions v3_req 指定使用X.509 v3版本签发证书(其实就是cnf文件中对于配置块信息)
-extensions v3_ca
-extfile 指定特殊的v3配置文件
-days 36500 设置证书过期时间 36500为100年 365为一年
-set_serial 0 设置序列号
-signkey 指定CA私钥
-sha256 指定为sha256算法
-in 导入文件
-out 输出文件
|
对于cnf v3配置详细信息请参考官网：https://www.openssl.org/docs/man1.1.1/man5/x509v3_config.html
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
| # 创建cnf文件
[root@master pki]# cat xiaowangc.cnf
[ v3_ca ]
keyUsage = critical, keyCertSign, digitalSignature, keyEncipherment # 指定密钥用法
basicConstraints = critical,CA:true # 指定是否为CA根
subjectKeyIdentifier = hash # 密钥标识符
subjectAltName = DNS:kubernetes # 主体备用名称
[ v3_req ]
keyUsage = critical, digitalSignature, keyEncipherment # 指定密钥用法
extendedKeyUsage = serverAuth # 扩展密钥用法：服务器验证
basicConstraints = critical, CA:FALSE # 指定是否为CA根
authorityKeyIdentifier = keyid,issuer # 密钥标识符
subjectAltName = DNS:kubernetes, DNS:kubernetes.default, DNS:kubernetes.default.svc, DNS:kubernetes.default.svc.cluster.local, DNS:master, IP:127.0.0.1, IP:192.168.64.11 # 主体备用名称
===============================================================================
[root@master pki]# openssl genrsa -out ca.pem # 生成私钥
[root@master pki]# openssl req -new -key ca.pem -out ca.csr -subj '/CN=kubernetes' # 生成证书请求文件并设置CN为kubernetes
[root@master pki]# openssl x509 -req -days 36500 -sha256 -extfile xiaowangc.cnf -extensions v3_ca -set_serial 0 -signkey ca.pem -in ca.csr -out ca.crt
Signature ok
subject=CN = kubernetes
Getting Private key
[root@master pki]# openssl x509 -in ca.crt -noout -text
Certificate:
Data:
Version: 3 (0x2)
Serial Number: 0 (0x0)
Signature Algorithm: sha256WithRSAEncryption
Issuer: CN = kubernetes
Validity
Not Before: Sep 17 13:40:22 2022 GMT
Not After : Aug 24 13:40:22 2122 GMT
Subject: CN = kubernetes
Subject Public Key Info:
Public Key Algorithm: rsaEncryption
RSA Public-Key: (2048 bit)
Modulus:
00:ca:29:5b:e0:f0:d1:cf:3e:55:a5:dd:e7:0f:e5:
86:05:e1:e4:e2:0b:f5:e6:0e:cf:f9:a6:75:5c:76:
f7:76:91:90:91:fb:3b:65:25:63:1f:24:8f:7f:43:
17:1a:01:24:bd:2e:3a:c2:e3:3a:2b:10:3c:07:13:
b8:63:7a:ac:9c:21:f4:48:d3:84:17:a9:60:b5:44:
00:58:18:01:34:e7:d2:35:e3:0e:fe:de:22:c1:09:
f3:4b:f8:5d:f4:1d:ae:7d:31:b1:19:42:00:cb:62:
69:29:3d:90:eb:9d:d8:3e:51:e5:3b:bb:7e:c1:04:
93:97:92:d9:47:62:b5:40:5f:8c:0b:82:de:f7:88:
23:2e:7b:75:bb:ea:a3:ec:11:7f:48:62:66:a7:33:
e3:16:bc:25:ea:91:89:b7:f6:fb:2f:be:a8:9b:3d:
a6:1e:da:01:f5:23:d5:b3:1b:40:34:cd:1a:c2:45:
0d:a5:a5:0f:2b:be:df:8f:e8:4b:72:05:33:ae:49:
36:38:84:4a:87:34:fc:1d:d8:ca:a4:b5:13:ad:54:
9b:52:08:16:e5:78:d4:01:a6:04:3e:83:23:77:38:
b4:24:66:b1:de:15:e6:56:89:18:a2:af:41:99:63:
ee:81:9d:a5:96:01:26:42:3c:f4:7d:37:35:64:1c:
be:33
Exponent: 65537 (0x10001)
X509v3 extensions:
X509v3 Key Usage: critical
Digital Signature, Key Encipherment, Certificate Sign
X509v3 Basic Constraints: critical
CA:TRUE
X509v3 Subject Key Identifier:
CA:C2:0C:4E:A2:79:5D:1F:39:FF:09:AE:B7:9A:4F:6C:37:66:6E:A7
X509v3 Subject Alternative Name:
DNS:kubernetes
Signature Algorithm: sha256WithRSAEncryption
ba:22:cc:db:36:c4:6a:00:c1:0e:c2:69:e7:d2:4a:49:a3:df:
2b:a3:1a:34:4e:89:de:77:fe:f6:25:2b:9c:8c:b2:78:f8:7f:
58:28:dc:ef:92:18:30:18:2f:b1:f0:48:7b:47:64:ec:c8:bf:
27:22:b1:b5:ae:65:44:01:47:a9:14:5a:b3:17:3b:f1:13:8a:
d4:44:78:c9:bc:e5:ce:dd:bf:94:2e:d1:40:53:fe:0e:b7:99:
58:aa:59:c5:3e:dc:5c:c8:7b:f0:77:ce:29:04:53:ec:dc:ba:
14:cd:e3:65:4a:76:65:2e:fa:21:94:7a:37:cb:b1:b3:5b:b2:
cd:1f:0f:d7:35:fe:67:c5:8b:43:f6:dc:47:c8:d2:cd:93:f8:
d5:74:0e:f5:35:5d:a7:65:3e:ea:67:cb:51:60:22:4b:04:96:
c4:ed:1f:65:36:6c:9d:79:78:7d:32:c6:9f:52:26:7a:ef:ba:
da:88:80:52:84:41:88:3a:5d:84:39:14:03:75:8a:4e:86:b8:
a5:21:67:e0:93:66:dc:b3:08:1b:f4:61:63:4a:d9:c8:7d:c3:
24:7f:f9:cd:60:18:5e:5d:ba:6e:03:a7:31:99:a0:58:da:a6:
68:7d:df:08:4b:10:cf:5c:16:9a:37:ba:34:74:7f:ba:15:91:
21:36:4a:ad
|
apiserver证书详细信息
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
| # 参数意思大致和上面差不多
Certificate:
Data:
Version: 3 (0x2)
Serial Number: 7046502440896354319 (0x61ca34a2d28cd80f)
Signature Algorithm: sha256WithRSAEncryption
Issuer: CN = kubernetes
Validity
Not Before: Sep 17 10:20:04 2022 GMT
Not After : Sep 17 10:20:04 2023 GMT
Subject: CN = kube-apiserver
Subject Public Key Info:
Public Key Algorithm: rsaEncryption
RSA Public-Key: (2048 bit)
Modulus:
00:94:4c:68:af:91:68:bf:3d:c2:59:0e:07:57:14:
c2:85:38:18:ed:f7:73:19:d3:5b:18:49:a9:e7:3c:
19:86:af:f8:bb:23:97:03:b0:74:9c:e2:2c:76:6e:
59:64:dd:2d:a4:1e:ec:78:ff:7a:83:2b:44:71:3c:
c6:c0:50:6c:23:49:8d:64:e4:88:20:38:2b:20:d9:
0a:28:75:4c:7e:d2:30:1a:05:12:0b:38:8c:9b:8b:
ba:5a:69:e4:7d:82:91:db:46:9f:f8:2c:42:7d:71:
ee:60:24:cc:71:89:ce:89:7d:1c:ec:c3:9a:b5:e5:
bd:ad:2c:d1:ad:b1:74:1b:b1:19:04:d6:a3:64:a4:
2a:5b:90:d5:c7:ee:0a:9c:89:24:c7:e8:df:46:05:
22:38:29:a5:78:40:a2:80:09:4c:06:1c:a8:cd:c3:
73:13:f9:4f:a4:e9:41:61:52:e9:9a:d4:9a:d0:9b:
9f:a6:86:2f:8a:b6:a6:1d:de:9f:09:72:55:49:71:
4a:3c:64:44:ef:fd:0a:c6:21:f8:0d:cd:1f:77:95:
61:41:4f:49:61:8a:32:f1:88:04:26:3b:3e:53:05:
4d:47:6a:c6:a1:22:11:3c:d8:4d:44:87:b7:47:ee:
ea:1d:17:14:e8:7c:7b:14:44:42:76:a9:f8:1c:06:
04:43
Exponent: 65537 (0x10001)
X509v3 extensions:
X509v3 Key Usage: critical
Digital Signature, Key Encipherment
X509v3 Extended Key Usage:
TLS Web Server Authentication
X509v3 Basic Constraints: critical
CA:FALSE
X509v3 Authority Key Identifier:
keyid:2B:F7:47:CB:41:4C:A9:B4:DA:93:18:30:E0:EA:10:7E:31:26:04:4A
X509v3 Subject Alternative Name:
DNS:kubernetes, DNS:kubernetes.default, DNS:kubernetes.default.svc, DNS:kubernetes.default.svc.cluster.local, DNS:master, IP Address:192.12.0.1, IP Address:192.168.64.11
Signature Algorithm: sha256WithRSAEncryption
4f:f3:64:08:c1:6e:a8:03:c4:a2:94:d3:36:2c:06:0e:95:0d:
dc:b6:77:ca:5b:ee:41:b9:31:d3:75:79:fc:37:b8:d2:cc:92:
0d:18:ad:bd:e5:b4:0a:b0:2b:ba:51:94:bf:e4:d3:9d:49:e7:
2b:b7:df:44:38:a0:4f:e5:48:4a:bd:2d:d3:8d:76:60:f1:41:
2f:c0:6f:e2:fa:4c:79:a0:7f:ad:6d:3a:9d:0a:ac:82:d7:bc:
23:0f:ca:66:7f:7d:95:3f:f0:f3:75:41:2b:55:a1:66:6b:98:
58:4d:35:77:5f:3d:71:00:3a:3c:c9:00:e4:90:4b:9c:1e:42:
0d:47:e6:25:c2:77:7e:93:65:44:03:4c:d3:7e:f1:cf:e8:eb:
c1:72:08:35:6a:da:84:2a:f0:22:e2:57:4a:72:83:a9:c6:5c:
9e:38:fb:21:51:21:d0:12:92:af:63:a0:9c:c9:4b:ff:01:2a:
af:c3:ef:b5:64:ff:a3:47:44:24:75:8a:03:ed:b0:fe:54:22:
7c:b9:8b:05:8f:b0:3f:67:48:35:40:bc:97:34:59:48:92:37:
ba:d1:60:8a:bb:0c:00:a2:1a:15:d5:1f:17:f7:64:42:25:3c:
09:e7:70:5c:a0:c2:a0:20:65:fb:e4:6d:ae:59:b1:4f:09:60:
89:88:78:56
|
apisever证书创建方法
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
| [root@master pki]# cat xiaowangc.cnf
[ v3_ca ]
keyUsage = critical, keyCertSign, digitalSignature, keyEncipherment
basicConstraints = critical,CA:true
subjectKeyIdentifier = hash
subjectAltName = DNS:kubernetes
[ v3_req ]
keyUsage = critical, digitalSignature, keyEncipherment
extendedKeyUsage = serverAuth
basicConstraints = critical, CA:FALSE
authorityKeyIdentifier = keyid,issuer
subjectAltName = DNS:kubernetes, DNS:kubernetes.default, DNS:kubernetes.default.svc, DNS:kubernetes.default.svc.cluster.local, DNS:master, IP:127.0.0.1, IP:192.168.64.11
==============================================
[root@master pki]# openssl req -new -newkey rsa:2048 -keyout apiserver.key -out apiserver.csr -nodes -subj '/CN=kube-apiserver'
[root@master pki]# openssl x509 -req -sha256 -days 36500 -extfile xiaowangc.cnf -extensions v3_req -in apiserver.csr -CA ca.crt -CAkey ca.pem -out apiserver.crt -CAcreateserial
[root@master pki]# openssl x509 -in apiserver.crt -noout -text
Certificate:
Data:
Version: 3 (0x2)
Serial Number:
19:39:ff:4c:dd:c2:d6:76:f3:cc:7e:f9:b8:8c:fb:4e:b5:17:5b:20
Signature Algorithm: sha256WithRSAEncryption
Issuer: CN = kubernetes
Validity
Not Before: Sep 17 14:33:08 2022 GMT
Not After : Aug 24 14:33:08 2122 GMT
Subject: CN = kube-apiserver
Subject Public Key Info:
Public Key Algorithm: rsaEncryption
RSA Public-Key: (2048 bit)
Modulus:
00:e1:08:2b:cd:46:37:e7:3e:9f:c0:99:28:e2:91:
d6:82:60:55:8f:69:e8:69:b2:3b:99:f0:05:77:cb:
a9:35:e8:b5:07:a4:bc:f2:30:07:33:f4:a3:12:b6:
f5:1b:8e:bd:c1:36:d8:b5:d0:fb:4c:4c:92:fb:38:
ac:51:52:87:28:ea:e6:c8:49:0f:38:c6:b9:68:0c:
79:2c:a7:aa:99:fa:f9:80:47:36:e7:0e:19:f1:96:
07:ea:13:c0:5d:30:3c:3e:d6:33:28:f4:49:c1:b1:
13:d7:4f:4f:ec:ac:c1:52:98:83:59:e6:df:5f:a1:
2b:b3:81:4c:7b:84:d8:2d:29:bd:b3:b6:3d:b5:3a:
da:2e:c1:d0:d1:f9:40:ff:e6:ff:c0:9c:e4:d5:19:
31:1d:6c:70:4d:1c:9c:c2:0c:9f:51:1e:8a:ba:7c:
b1:c4:e1:6e:f2:5b:9c:a6:f4:4c:6e:a2:d6:cf:db:
1a:e7:94:d7:6f:2d:b2:10:4f:6a:bb:33:5c:56:bd:
45:d1:1a:86:a2:34:9a:32:00:e9:39:c7:10:ce:22:
e3:c1:95:56:e3:50:c0:a5:cd:93:ea:f0:f1:48:ef:
9d:b0:29:ac:13:6b:fa:f8:73:49:44:30:5d:c4:12:
cc:d0:b3:b9:7e:c6:4f:7a:06:19:e5:10:6f:f7:5e:
eb:61
Exponent: 65537 (0x10001)
X509v3 extensions:
X509v3 Key Usage: critical
Digital Signature, Key Encipherment
X509v3 Extended Key Usage:
TLS Web Server Authentication
X509v3 Basic Constraints: critical
CA:FALSE
X509v3 Authority Key Identifier:
keyid:33:AC:40:D4:C2:3E:E9:64:2B:F5:00:C7:EB:E9:78:45:62:DD:3E:15
X509v3 Subject Alternative Name:
DNS:kubernetes, DNS:kubernetes.default, DNS:kubernetes.default.svc, DNS:kubernetes.default.svc.cluster.local, DNS:master, IP Address:127.0.0.1, IP Address:192.168.64.11
Signature Algorithm: sha256WithRSAEncryption
67:5f:de:8e:7f:39:b6:55:2a:c1:20:07:fb:60:fa:0d:b9:fc:
8b:22:ff:fb:31:8f:b8:6d:cd:2f:7a:56:cd:23:0f:94:68:a4:
57:90:05:88:e9:b9:08:1e:fa:08:d2:02:ed:1e:87:07:e6:7f:
40:ba:ca:90:27:19:7f:87:54:5f:1c:96:63:db:19:3a:1a:1c:
c2:cb:9b:fc:47:39:4d:4c:a2:d4:6d:26:0b:5f:b1:4e:f1:62:
8b:99:47:62:8f:28:6e:be:4b:94:de:02:f8:75:47:2e:08:81:
2e:8f:ca:7b:d8:72:c3:18:81:9d:5f:47:b6:5a:c5:5a:13:7f:
3d:a3:bb:86:2a:68:d5:45:b0:cd:dc:1b:78:d9:ec:4e:1b:d4:
8e:25:48:0d:b8:16:c7:49:08:f7:66:bb:18:6e:03:42:d8:6c:
e1:1a:7b:2f:de:19:07:4e:e6:60:d4:21:b5:b0:94:d0:7e:06:
9c:72:5d:57:b7:36:19:eb:30:5e:40:ea:6a:0b:c9:40:9c:22:
91:59:93:3e:af:40:06:77:1b:80:72:a1:e4:9d:e0:ac:a8:7d:
86:3c:a0:9f:67:a2:69:68:30:74:ff:67:ef:8c:5d:db:31:73:
7c:a9:8c:51:ac:25:e8:f5:bb:0f:8e:63:ba:fb:39:4d:14:bb:
b0:b0:96:a3
|
front-proxy CA详细信息
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
| [root@master pki]# openssl x509 -in front-proxy-ca.crt -noout -text
Certificate:
Data:
Version: 3 (0x2)
Serial Number: 0 (0x0)
Signature Algorithm: sha256WithRSAEncryption
Issuer: CN = front-proxy-ca
Validity
Not Before: Sep 17 10:20:05 2022 GMT
Not After : Sep 14 10:20:05 2032 GMT
Subject: CN = front-proxy-ca
Subject Public Key Info:
Public Key Algorithm: rsaEncryption
RSA Public-Key: (2048 bit)
Modulus:
00:ce:fc:51:d7:ab:33:de:d9:bb:e4:b7:e1:34:37:
af:ac:67:48:3e:7c:06:c1:35:6d:94:1d:5d:24:d4:
79:fc:ac:ce:7c:7a:95:f2:1b:00:51:78:bf:4d:48:
cb:6a:78:42:f7:3f:72:1c:60:74:64:8c:d4:01:74:
17:e8:1f:9e:d6:ce:7a:63:a9:81:58:cd:fa:83:56:
05:7e:25:6a:1a:0d:ea:e6:f9:5e:e8:92:4b:e7:19:
80:d9:86:f9:bd:da:7d:53:30:37:ad:fc:4e:e1:dd:
5c:ee:e0:50:31:9b:ba:87:cc:4a:e6:3c:c6:87:ca:
0c:81:fa:f4:e0:95:4b:41:e9:ea:2b:11:36:c4:26:
d8:e0:98:3c:f6:bb:0d:fc:70:e3:de:ba:14:ca:95:
56:11:4b:6c:3a:bf:56:1f:00:e0:bf:40:6b:8d:4f:
a0:a5:59:fb:35:d9:26:d9:b3:0d:9d:eb:f0:cf:24:
a1:85:db:a6:8c:05:f7:fa:de:40:1c:aa:37:4d:36:
8f:07:45:ff:ce:63:3f:f5:0f:8e:85:56:d5:3c:64:
7c:c9:3d:ef:c8:47:01:ed:97:e7:c9:9c:83:68:da:
6b:66:b7:01:41:4a:ab:9e:e2:f3:08:2b:38:73:c0:
92:f7:d1:81:7d:06:92:10:1f:47:5d:7a:87:19:09:
b3:0f
Exponent: 65537 (0x10001)
X509v3 extensions:
X509v3 Key Usage: critical
Digital Signature, Key Encipherment, Certificate Sign
X509v3 Basic Constraints: critical
CA:TRUE
X509v3 Subject Key Identifier:
4A:89:5F:73:59:04:A9:CE:8C:2E:D8:C2:29:3B:99:0E:B4:ED:54:D3
X509v3 Subject Alternative Name:
DNS:front-proxy-ca
Signature Algorithm: sha256WithRSAEncryption
b2:12:96:0c:a5:7b:ac:56:60:24:c4:ab:71:34:90:ae:2e:df:
17:44:10:52:8d:b0:92:93:dc:fd:12:d5:98:b7:03:14:6c:cc:
4e:8d:c8:74:6d:31:58:0f:50:5d:57:00:0e:8b:82:7b:8e:3a:
f7:7e:9a:a3:7f:3f:8e:7a:8e:55:1c:51:ab:7e:b6:3f:a6:28:
5d:6c:17:2d:05:2c:4f:69:bb:e7:aa:95:a7:7e:51:76:fc:66:
9e:22:21:2a:b1:19:d0:0b:2d:8e:91:9d:c6:eb:a1:86:93:9a:
b9:a4:e3:af:4e:f5:56:5c:7d:d2:0f:03:3c:98:ad:f9:da:13:
63:f9:15:86:03:8e:09:fd:93:34:c8:dd:ae:9b:b7:cd:29:a5:
41:89:b3:29:21:40:e7:18:dc:16:4c:0c:ec:0a:1e:02:81:27:
41:2d:5d:02:67:9b:a0:02:46:ad:a7:8d:c6:2d:a2:55:8c:b1:
c3:eb:4d:46:51:29:4d:49:8b:f0:b8:24:78:dd:30:ac:40:c9:
e4:61:65:ee:64:5f:7d:35:1d:2a:50:92:0a:d6:e7:3d:28:9c:
45:14:69:95:f3:76:de:2e:fb:1c:57:f1:ca:6e:1d:9f:8a:3a:
80:35:82:78:48:c5:19:8d:bf:da:21:28:2a:ad:62:d5:aa:66:
94:e3:73:f4
|
front-proxy CA创建方法
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
| # front-proxy CA创建方法和kubernetes CA相同，可对比证书详细信息,变化不大
[root@master pki]# cat xiaowangc.cnf
[ v3_ca ]
keyUsage = critical, keyCertSign, digitalSignature, keyEncipherment
basicConstraints = critical,CA:true
subjectKeyIdentifier = hash
subjectAltName = DNS:front-proxy-ca
===============================================================================================
[root@master pki]# openssl req -new -newkey rsa:2048 -keyout front-proxy-ca.key -out front-proxy-ca.csr -nodes -subj '/CN=front-proxy-ca'
Generating a RSA private key
..+++++
...............................+++++
writing new private key to 'front-proxy-ca.key'
-----
[root@master pki]# openssl x509 -req -days 36500 -sha256 -extfile xiaowangc.cnf -extensions v3_ca -set_serial 0 -signkey front-proxy-ca.key -in front-proxy-ca.csr -out front-proxy-ca.crt
[root@master pki]# openssl x509 -in front-proxy-ca.crt -noout -text
Certificate:
Data:
Version: 3 (0x2)
Serial Number: 0 (0x0)
Signature Algorithm: sha256WithRSAEncryption
Issuer: CN = front-proxy-ca
Validity
Not Before: Sep 17 18:23:03 2022 GMT
Not After : Aug 24 18:23:03 2122 GMT
Subject: CN = front-proxy-ca
Subject Public Key Info:
Public Key Algorithm: rsaEncryption
RSA Public-Key: (2048 bit)
Modulus:
00:b0:db:55:92:4f:f4:a7:ec:db:5a:ad:a4:97:c9:
84:4f:5b:10:d8:f4:28:54:a5:ec:02:62:8c:95:c4:
7b:90:da:ca:76:ca:49:4b:3c:cc:98:79:0e:c3:6d:
8f:80:b5:e1:26:dd:82:83:8d:8e:03:6e:b5:31:0e:
8e:55:e6:41:3a:77:11:4e:9d:ad:10:8d:4c:77:a4:
25:2b:02:c0:10:93:fd:18:53:d5:ab:43:70:2d:8d:
6b:70:a8:84:d6:3d:df:ad:5f:7d:7f:0b:b6:b0:ba:
bc:7c:e5:45:86:57:5b:a4:0a:2a:71:15:76:50:42:
eb:e0:22:3a:c3:f0:ec:12:f9:47:f6:21:33:78:8d:
87:fa:6d:23:8d:25:91:69:e8:99:a5:78:f9:63:c8:
fc:c9:48:b8:b1:0c:fd:1b:14:c3:b8:55:c9:f5:ba:
74:37:e4:98:17:69:3e:06:ce:80:1e:a6:e3:3d:de:
8f:9b:be:3a:de:c1:8c:89:b3:17:b5:14:d4:2a:37:
86:1c:37:71:15:5e:1f:df:02:85:16:5c:4e:3d:e6:
d2:35:93:ad:f7:b7:00:4e:44:27:bf:9f:ce:da:45:
33:57:1f:87:c5:4c:77:36:44:29:58:d6:53:00:6c:
16:00:53:a8:f1:17:50:19:e5:75:e9:e1:96:ad:0d:
e7:a5
Exponent: 65537 (0x10001)
X509v3 extensions:
X509v3 Key Usage: critical
Digital Signature, Key Encipherment, Certificate Sign
X509v3 Basic Constraints: critical
CA:TRUE
X509v3 Subject Key Identifier:
63:70:65:AC:BF:B0:9E:D2:93:57:C3:E7:2B:55:0F:01:08:FC:16:30
X509v3 Subject Alternative Name:
DNS:front-proxy-ca
Signature Algorithm: sha256WithRSAEncryption
43:bb:c2:61:96:68:74:72:44:34:06:f2:2e:57:03:1e:73:e9:
dd:dc:70:49:e1:04:36:1e:d1:35:29:b9:bc:cb:7b:99:0a:c9:
95:ae:62:42:0a:10:bb:e9:01:6c:57:3b:d0:59:69:56:a3:84:
83:90:45:fe:9f:90:78:10:38:be:f9:3b:03:c0:14:7e:17:15:
32:d4:d2:c8:40:8d:84:fe:0b:85:6d:70:04:ea:eb:56:05:a3:
cd:15:d2:94:fe:bc:04:7f:83:ac:bd:52:e5:f7:b5:17:cb:e4:
cc:e1:83:62:98:4a:de:f8:6f:cf:d4:b2:57:56:e3:41:e1:37:
d1:66:72:0b:1e:1c:5f:7d:bb:f7:eb:4e:48:b6:48:cc:3e:47:
02:a0:69:54:bf:b8:c1:ba:32:fa:7f:89:1d:c6:0a:85:36:81:
af:5c:74:98:3d:27:bb:ae:12:ac:4b:1b:6f:db:44:c3:66:aa:
18:8b:c9:4d:b4:b6:31:03:92:34:ce:20:81:73:7d:5c:b9:44:
4b:7f:ae:bd:da:77:a5:43:0d:83:04:97:30:05:8d:20:9d:42:
c6:59:50:fe:7c:c8:ca:d4:77:8e:ba:2d:15:53:04:1f:2c:d3:
03:ba:14:02:36:e6:02:9c:56:db:01:d9:dc:3d:66:6c:34:1c:
a7:52:82:32
|
front-proxy-client证书详细信息
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
| [root@master pki]# openssl x509 -in front-proxy-client.crt -noout -text
Certificate:
Data:
Version: 3 (0x2)
Serial Number: 8717535010990851132 (0x78fae7e7af24043c)
Signature Algorithm: sha256WithRSAEncryption
Issuer: CN = front-proxy-ca
Validity
Not Before: Sep 17 10:20:05 2022 GMT
Not After : Sep 17 10:20:05 2023 GMT
Subject: CN = front-proxy-client
Subject Public Key Info:
Public Key Algorithm: rsaEncryption
RSA Public-Key: (2048 bit)
Modulus:
00:e0:7c:d8:e6:03:aa:4e:d1:35:d4:9a:0f:46:a7:
fe:58:43:10:c2:d6:7b:84:3b:36:42:f7:dd:f0:29:
d7:cc:cb:83:05:d5:80:70:18:aa:bf:b1:6a:f4:44:
74:b2:1d:9a:2e:ac:f9:36:3f:18:ed:5e:b8:c9:53:
9c:71:65:c4:af:32:ab:c5:0e:d5:a3:b9:f2:55:91:
ef:4a:54:42:b2:26:4e:97:5a:9f:67:fd:ea:1a:c3:
03:01:b5:ca:9b:d0:78:99:26:5c:da:01:12:40:3b:
12:88:cc:25:0b:be:00:73:78:bb:d7:7e:e3:1b:07:
ca:f7:f5:c4:73:9e:42:23:1e:e2:b7:58:a7:e5:33:
71:dd:13:27:9d:44:5c:ce:b4:f9:50:19:ff:92:ed:
37:3e:4a:00:23:4a:a4:8f:94:92:8f:f0:e2:ad:87:
43:67:26:dd:d7:f3:c4:60:0e:c2:2f:ca:21:6c:dd:
b5:5f:b1:a2:9a:ce:5f:5f:a2:aa:99:25:32:61:bd:
be:1d:a4:fc:dd:91:d6:5e:60:32:f4:63:e4:69:ee:
90:f2:63:01:ba:5e:64:60:48:7c:42:3f:50:9a:f9:
b3:13:a7:e2:50:5d:bb:b2:2d:34:ee:38:8f:49:ac:
de:a6:a1:32:d6:2b:83:77:47:1f:5d:36:e4:fc:b4:
60:a1
Exponent: 65537 (0x10001)
X509v3 extensions:
X509v3 Key Usage: critical
Digital Signature, Key Encipherment
X509v3 Extended Key Usage:
TLS Web Client Authentication
X509v3 Basic Constraints: critical
CA:FALSE
X509v3 Authority Key Identifier:
keyid:4A:89:5F:73:59:04:A9:CE:8C:2E:D8:C2:29:3B:99:0E:B4:ED:54:D3
Signature Algorithm: sha256WithRSAEncryption
49:15:87:5e:b1:7a:bd:be:83:be:0c:55:54:0f:bb:ee:79:21:
21:03:6e:e6:d2:7b:69:74:fb:b0:a6:6b:b3:d4:d7:60:23:3b:
5c:89:16:9d:26:7a:be:4f:40:ad:b7:c7:a2:62:3e:ec:7c:ae:
df:30:05:d9:1f:61:44:8c:57:f7:7e:ba:dc:9c:b8:b9:09:2e:
83:59:da:44:4d:9a:23:02:51:56:7f:95:e8:59:88:7c:ee:33:
5f:0d:fe:93:79:1f:48:12:83:8a:2a:99:0c:f4:93:0a:c0:e6:
c1:ea:17:05:c2:de:e5:31:50:2a:bc:8f:0e:80:57:57:38:4a:
61:40:c4:12:de:17:53:f7:4a:72:55:4c:9b:5a:d9:48:8d:2b:
0c:69:16:b2:c9:2a:3e:7b:75:2b:89:c4:89:14:bf:e0:d4:64:
d0:31:9e:98:d2:5d:bc:c4:54:5f:f8:d0:0f:3e:49:c7:1a:d6:
83:51:f2:1f:f7:a4:61:bf:8d:58:ca:a4:18:bd:60:7c:bf:d1:
78:57:bd:2e:87:ff:c8:07:41:b2:ae:1b:36:c6:6d:c0:43:9b:
c1:44:c6:c3:7e:64:e3:9d:e6:5f:d7:36:a0:d5:a0:c4:2c:d0:
77:ab:5b:44:44:e8:47:3d:2a:9b:40:7d:ea:39:15:e4:81:32:
49:9d:21:86
|
front-proxy-client证书创建方法
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
| [root@master pki]# vi xiaowangc.cnf
[ v3_req ]
keyUsage = critical, digitalSignature, keyEncipherment
extendedKeyUsage = clientAuth
basicConstraints = critical, CA:FALSE
authorityKeyIdentifier = keyid,issuer
=================================================================
[root@master pki]# openssl req -new -newkey rsa:2048 -keyout front-proxy-client.key -out front-proxy-client.csr -nodes -subj '/CN=front-proxy-client'
[root@master pki]# openssl x509 -req -sha256 -days 36500 -extfile xiaowangc.cnf -extensions v3_req -in front-proxy-client.csr -CA front-proxy-ca.crt -CAkey front-proxy-ca.key -out front-proxy-client.crt -CAcreateserial
Signature ok
subject=CN = front-proxy-client
Getting CA Private Key
[root@master pki]# openssl x509 -in front-proxy-client.crt -noout -text
Certificate:
Data:
Version: 3 (0x2)
Serial Number:
7a:ab:72:43:b0:71:af:fe:8e:63:f7:c9:5f:d3:e4:c1:1c:93:ec:56
Signature Algorithm: sha256WithRSAEncryption
Issuer: CN = front-proxy-ca
Validity
Not Before: Sep 17 18:32:01 2022 GMT
Not After : Aug 24 18:32:01 2122 GMT
Subject: CN = front-proxy-client
Subject Public Key Info:
Public Key Algorithm: rsaEncryption
RSA Public-Key: (2048 bit)
Modulus:
00:b3:f6:af:47:98:65:d7:60:b5:ab:86:75:96:9b:
fc:5a:16:63:62:6d:17:a0:cd:f9:2b:af:ac:5c:8b:
41:ed:3d:89:90:6b:c4:bf:a0:90:8b:4c:9a:48:07:
03:6b:1e:f7:a7:c1:64:b1:c1:c8:ac:48:c1:db:e1:
8f:60:73:5c:d3:4b:bc:13:8a:62:d2:7e:0e:e3:57:
87:ae:f1:bb:6d:0f:b8:79:57:4d:73:36:be:b2:fc:
3c:b3:8c:b3:ba:ea:cb:58:a9:c9:ba:89:7e:ec:c3:
08:eb:4f:41:7d:8d:d0:2e:db:ef:10:af:6d:5b:7c:
c8:ca:89:a4:58:43:e5:10:43:da:6a:65:eb:db:fe:
d1:cf:7e:29:9d:33:aa:a1:9f:d2:bd:e1:0a:11:15:
da:7d:fa:4f:a8:c2:99:ed:be:dd:55:26:01:5a:7d:
c4:c0:53:e4:2c:ac:9e:c1:44:aa:0e:cf:26:e3:87:
38:dd:47:8f:2b:40:e8:86:a7:64:48:67:86:ed:b6:
8b:6e:bd:1f:ea:d5:21:da:39:d7:24:61:2d:33:ff:
22:78:8d:4d:1e:ed:89:a4:48:ac:6a:e7:76:a2:4d:
72:08:c4:25:1c:13:0f:5e:11:f0:83:70:52:f1:a8:
ff:fc:ff:f1:03:ae:c8:d8:e3:cc:89:b5:72:4b:97:
71:87
Exponent: 65537 (0x10001)
X509v3 extensions:
X509v3 Key Usage: critical
Digital Signature, Key Encipherment
X509v3 Extended Key Usage:
TLS Web Client Authentication
X509v3 Basic Constraints: critical
CA:FALSE
X509v3 Authority Key Identifier:
keyid:63:70:65:AC:BF:B0:9E:D2:93:57:C3:E7:2B:55:0F:01:08:FC:16:30
Signature Algorithm: sha256WithRSAEncryption
a7:b1:36:2f:d2:9c:8c:8a:64:c4:2a:65:57:4d:e6:6d:38:de:
2c:60:53:3c:b0:96:17:1d:8f:c7:24:cc:03:12:9a:a6:af:98:
5d:9b:52:9b:11:88:63:58:ab:33:8f:d4:19:f4:c5:d5:1f:3a:
95:d2:97:a3:b9:a2:73:69:be:2c:60:42:2b:d2:de:f9:a8:2c:
ee:d2:b8:62:fb:8e:57:44:93:b7:27:f9:ce:76:9c:d5:ad:cb:
47:95:de:d0:62:97:46:f3:a2:d9:bf:20:b2:d4:36:a4:2e:e8:
08:61:ea:4a:db:35:58:5e:31:20:a1:f7:4c:21:23:2f:c8:db:
d4:2c:d7:e4:6c:e5:48:e6:8f:0d:69:78:5c:a4:23:91:e0:13:
4c:58:4a:10:9b:8f:1b:7d:c5:f9:68:7c:de:69:85:31:74:90:
f1:00:cb:d9:0d:23:8e:4b:5d:79:26:8b:3d:95:f7:7c:5a:f4:
a4:7d:fd:db:f4:d3:e2:75:17:18:40:16:b1:b0:c2:73:07:2a:
3b:b8:17:2a:c4:11:d1:a7:2e:17:e0:71:31:a7:2c:b5:d2:7a:
db:46:94:ec:09:68:5e:00:14:2d:9a:9d:7e:68:e1:bd:cd:e0:
48:2e:94:63:01:c3:49:2b:69:a7:db:f4:3c:96:a3:6d:5f:37:
eb:86:f6:bf
|
etcd CA详细信息
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
| [root@master etcd]# openssl x509 -in ca.crt -noout -text
Certificate:
Data:
Version: 3 (0x2)
Serial Number: 0 (0x0)
Signature Algorithm: sha256WithRSAEncryption
Issuer: CN = etcd-ca
Validity
Not Before: Sep 17 10:20:05 2022 GMT
Not After : Sep 14 10:20:05 2032 GMT
Subject: CN = etcd-ca
Subject Public Key Info:
Public Key Algorithm: rsaEncryption
RSA Public-Key: (2048 bit)
Modulus:
00:da:27:fa:1a:96:1a:d6:0f:e0:ab:ab:45:c0:7b:
33:69:fe:c2:de:78:e1:7f:e7:50:7b:aa:c3:d5:d7:
0f:43:c8:01:83:be:cc:8e:a5:d2:05:28:17:ed:30:
e2:d1:92:d5:6d:c7:52:76:76:aa:28:d2:21:4b:2a:
c0:6c:06:b9:a0:26:8e:80:3e:5a:dc:93:f7:61:4f:
fa:de:28:1a:41:df:0b:5f:13:50:2c:e3:49:b1:34:
42:c9:7a:f4:7c:8e:04:40:8b:ea:af:d6:85:96:6a:
37:d0:8b:1c:81:a6:98:17:7a:e7:ef:52:15:4e:83:
46:8e:1f:23:68:90:ea:65:52:46:e6:02:cf:98:90:
87:22:85:5e:5b:58:a7:68:90:13:b0:5b:15:57:2e:
7f:01:f4:7f:b7:80:10:1e:ff:75:f4:28:3b:a5:bc:
9c:5a:14:d0:02:e5:ea:33:79:22:99:97:7a:25:46:
94:91:79:bc:a6:7b:6a:0b:d7:75:2e:b7:11:cb:3a:
dd:0c:83:34:d8:a5:e3:2b:e2:1d:2c:82:c4:c3:e9:
67:41:2e:9b:53:dd:51:c2:cf:27:e8:79:5b:8c:c5:
33:f5:a8:87:0b:f5:f8:29:62:05:0b:2c:27:f8:c8:
65:ed:ba:c2:fe:30:1a:b2:8e:1a:9f:49:14:84:6d:
2c:73
Exponent: 65537 (0x10001)
X509v3 extensions:
X509v3 Key Usage: critical
Digital Signature, Key Encipherment, Certificate Sign
X509v3 Basic Constraints: critical
CA:TRUE
X509v3 Subject Key Identifier:
6A:87:F2:2F:84:67:97:88:97:A3:1B:55:18:AD:1E:AB:5C:33:5B:14
X509v3 Subject Alternative Name:
DNS:etcd-ca
Signature Algorithm: sha256WithRSAEncryption
15:9a:c9:5f:d8:b7:a9:38:02:5d:5b:76:2c:b0:8d:c6:9a:74:
89:2c:05:5c:a5:b3:d9:23:11:70:7b:91:bb:bb:4e:e7:f5:a4:
84:11:72:42:5d:ff:78:80:f8:ef:ee:4b:e2:00:13:8d:0c:c4:
43:53:44:d4:85:6a:d3:12:1e:e6:b0:ef:09:65:2e:d7:d3:fe:
83:dc:c8:e3:51:c0:e8:b4:68:32:59:f2:2d:9c:c5:de:c1:78:
fd:46:36:06:db:39:ff:65:3a:2f:3a:f6:1f:c9:4e:60:87:53:
39:db:b4:71:d6:87:16:da:a1:6a:fc:10:33:67:6b:78:68:ff:
ce:fe:cf:a7:62:fc:b4:ea:1d:9d:e7:14:de:79:22:69:d4:d0:
9b:c1:59:c0:28:92:80:bc:5d:39:d9:39:09:4b:48:56:6c:f6:
1a:54:de:31:2f:ca:ef:64:a1:6a:d5:da:e9:ff:d9:a2:52:7a:
88:fc:5b:7a:60:92:e3:1c:5c:b1:b0:80:18:1d:fe:14:22:69:
d8:8f:28:0c:4e:42:bc:a5:97:a1:4e:f4:db:22:b1:e4:3f:51:
ba:f9:04:bc:94:17:43:b0:7c:58:d6:da:11:3e:52:63:41:34:
4e:5d:c8:bc:01:b8:2a:30:ae:93:8a:92:6b:f0:e6:d3:bd:95:
89:b1:a7:ec
|
etcd CA创建方法
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
| [root@master etcd]# ls
xiaowangc.cnf
[root@master etcd]# cat xiaowangc.cnf
[ v3_ca ]
keyUsage = critical, keyCertSign, digitalSignature, keyEncipherment
basicConstraints = critical,CA:true
subjectKeyIdentifier = hash
subjectAltName = DNS:etcd-ca
==============================================================
[root@master etcd]# openssl req -new -newkey rsa:2048 -keyout etcd-ca.key -out etcd-ca.csr -nodes -subj '/CN=etcd-ca'
Generating a RSA private key
.........+++++
............................................................................................+++++
writing new private key to 'etcd-ca.key'
-----
[root@master etcd]# ls
etcd-ca.csr etcd-ca.key xiaowangc.cnf
[root@master etcd]# openssl x509 -req -days 36500 -sha256 -extfile xiaowangc.cnf -extensions v3_ca -set_serial 0 -signkey etcd-ca.key -in etcd-ca.csr -out etcd-ca.crt
Signature ok
subject=CN = etcd-ca
Getting Private key
[root@master etcd]# openssl x509 -in etcd-ca.crt -noout -text
Certificate:
Data:
Version: 3 (0x2)
Serial Number: 0 (0x0)
Signature Algorithm: sha256WithRSAEncryption
Issuer: CN = etcd-ca
Validity
Not Before: Sep 17 18:39:44 2022 GMT
Not After : Aug 24 18:39:44 2122 GMT
Subject: CN = etcd-ca
Subject Public Key Info:
Public Key Algorithm: rsaEncryption
RSA Public-Key: (2048 bit)
Modulus:
00:b9:c9:cf:21:2a:e1:4f:b3:5c:5c:cc:0c:8e:6d:
bc:86:18:97:0a:5c:ea:da:b8:88:9d:d4:9f:e1:d1:
56:48:db:a4:c6:4c:27:63:68:27:70:b6:8b:4b:e0:
fd:cb:60:c1:e5:a0:ce:5c:18:a0:4d:65:59:42:c4:
ee:32:d2:57:74:7f:b3:2a:de:88:c8:54:b9:f3:f5:
21:ee:79:88:11:73:f0:df:52:91:09:62:31:b1:67:
a9:61:47:1d:6e:25:d2:0b:7a:4b:29:ce:06:0b:42:
8b:e0:c5:aa:58:69:41:b3:b6:ab:ac:62:02:9b:c7:
ab:88:23:9e:c0:6d:e4:49:2b:cc:c3:15:71:22:db:
fb:14:90:60:c3:4d:6c:4a:4e:3e:53:01:ab:51:ac:
33:94:a4:0c:3b:5c:c3:d7:fc:64:f4:a7:f8:75:70:
2b:ad:32:e6:18:3d:92:78:fb:5c:bd:be:18:f8:07:
95:8a:e3:71:aa:0a:85:e5:ae:1c:7c:64:ec:6e:2b:
97:19:f5:0e:71:d0:17:78:13:92:76:8e:bc:3f:53:
c7:0d:2a:d6:9d:f1:82:8d:ef:d2:dd:02:2e:39:a5:
00:26:35:7e:99:47:93:5a:44:9a:d7:03:05:3d:df:
14:47:dc:03:47:9f:31:6f:a5:0a:d1:27:7d:5c:9c:
3b:51
Exponent: 65537 (0x10001)
X509v3 extensions:
X509v3 Key Usage: critical
Digital Signature, Key Encipherment, Certificate Sign
X509v3 Basic Constraints: critical
CA:TRUE
X509v3 Subject Key Identifier:
99:DC:10:B3:F8:63:BA:F7:DB:B2:B5:97:24:77:D2:DC:6D:F2:E1:1B
X509v3 Subject Alternative Name:
DNS:etcd-ca
Signature Algorithm: sha256WithRSAEncryption
0c:08:05:9c:0c:56:6e:52:c8:17:da:42:5a:2f:94:ee:ba:9e:
ca:7c:b3:f0:cd:1e:55:f5:6b:2d:1c:e8:da:40:e6:b7:55:da:
6c:7e:2e:33:3c:8e:15:1c:b0:03:ba:e2:cd:a9:51:28:f0:fa:
c4:a9:70:74:d7:6d:82:ec:47:38:72:b8:dc:aa:61:f4:8b:7f:
6f:ae:a1:c9:e1:86:a9:16:94:1c:5d:5e:0f:32:95:9c:40:12:
f1:8c:df:00:91:0d:39:3f:8f:15:b1:93:aa:15:71:af:bb:bb:
ca:b9:28:ef:6c:cd:e0:7f:65:ce:1c:ef:2f:71:cf:c0:aa:47:
16:34:62:4a:63:ef:44:e9:c2:0c:cd:22:fb:f4:4a:21:6d:26:
ad:cc:ac:af:ab:97:a2:14:23:97:3b:be:ec:3b:ca:ff:36:b5:
b0:1f:00:60:c8:40:6a:61:8d:df:56:fd:c4:08:9d:f7:a6:fc:
20:71:62:bf:34:74:4b:34:dc:d5:b6:a5:c9:5f:ee:94:5d:01:
f3:cf:a0:48:3d:74:6b:d5:e3:e4:1a:89:d4:d7:05:84:f2:e3:
b8:43:8b:c7:15:0c:a6:8f:d9:8f:18:9c:96:9f:c3:a2:bb:43:
89:6f:8c:8b:51:c8:6c:50:33:d8:ff:ff:c7:4e:d8:db:0d:3b:
f7:83:f4:aa
|
etcd证书详细信息
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
| [root@master etcd]# openssl x509 -in server.crt -noout -text
Certificate:
Data:
Version: 3 (0x2)
Serial Number: 1417249744485671725 (0x13ab15223a14e32d)
Signature Algorithm: sha256WithRSAEncryption
Issuer: CN = etcd-ca
Validity
Not Before: Sep 17 10:20:05 2022 GMT
Not After : Sep 17 10:20:05 2023 GMT
Subject: CN = master
Subject Public Key Info:
Public Key Algorithm: rsaEncryption
RSA Public-Key: (2048 bit)
Modulus:
00:c5:6a:dc:04:22:d5:86:1d:ab:af:97:90:bc:49:
91:ed:3a:5b:37:f3:4b:7c:55:1f:4b:bc:9b:d2:89:
db:7d:aa:8d:a5:a9:b2:2c:a0:00:6d:ee:b2:cd:18:
22:b6:87:df:f5:6e:5b:4a:90:92:cc:51:76:af:7c:
8c:2a:26:9b:9c:31:c4:b6:c6:b9:28:ea:60:1e:1e:
93:86:40:aa:74:10:08:e9:b2:d6:ec:48:b0:54:e2:
a3:9e:8f:03:57:44:fd:33:83:11:c9:e1:29:8f:38:
4c:82:62:f4:55:f7:40:bd:f3:64:1b:be:f4:f0:3b:
c7:e1:b3:09:81:fe:70:44:b8:cb:5e:0e:fd:ac:6c:
70:78:c5:1d:5e:a8:2c:4e:8b:6c:00:11:63:d7:39:
6f:b8:47:bc:ef:f7:f2:de:c5:d2:24:37:ad:ae:22:
75:40:04:96:61:e4:d3:20:94:a6:0f:84:1c:7a:8b:
32:7e:54:a3:00:d9:57:8e:d5:23:cd:a6:32:fb:ae:
92:25:51:24:f3:39:92:9c:86:6d:94:ab:f5:bf:f7:
52:17:03:de:b5:ba:4f:82:6b:79:13:54:bb:2d:ca:
b4:7e:88:40:8a:b6:f5:b3:2d:8a:88:f8:9e:f4:77:
7e:d5:13:67:0e:bc:2a:a0:6e:d0:76:95:66:00:e3:
47:25
Exponent: 65537 (0x10001)
X509v3 extensions:
X509v3 Key Usage: critical
Digital Signature, Key Encipherment
X509v3 Extended Key Usage:
TLS Web Server Authentication, TLS Web Client Authentication
X509v3 Basic Constraints: critical
CA:FALSE
X509v3 Authority Key Identifier:
keyid:6A:87:F2:2F:84:67:97:88:97:A3:1B:55:18:AD:1E:AB:5C:33:5B:14
X509v3 Subject Alternative Name:
DNS:localhost, DNS:master, IP Address:192.168.64.11, IP Address:127.0.0.1, IP Address:0:0:0:0:0:0:0:1
Signature Algorithm: sha256WithRSAEncryption
21:2b:05:67:46:e1:3b:b5:77:c5:9b:29:6b:06:70:6f:9d:09:
44:24:40:21:79:77:06:0e:3a:c8:27:2e:89:44:67:af:9e:91:
0e:4a:a6:4d:03:98:c7:92:36:f5:28:68:68:97:ec:fb:03:25:
13:54:90:b3:ac:0c:14:cf:d0:6c:d5:be:13:ef:05:3a:4d:43:
bf:03:d2:7e:c5:16:64:f2:a7:ec:a5:22:2b:3d:50:ef:6e:40:
c1:43:5e:76:20:19:06:2f:39:cc:b0:71:cb:24:6f:e6:bf:48:
0b:3f:14:5a:bb:f6:27:b6:a1:25:38:55:db:ea:4c:84:57:9d:
19:74:66:e1:78:3d:be:04:ad:24:7a:af:d1:a6:fa:e9:26:39:
bd:14:ba:bc:31:b4:a4:2a:6e:34:db:ca:0c:d9:b2:3a:11:9b:
f2:15:67:9f:db:a2:54:30:29:d1:be:e9:f3:6f:80:79:f4:35:
88:4e:6f:d3:6d:f7:4e:88:20:f1:50:ba:71:c3:d7:93:dc:b5:
07:3d:44:75:4d:75:f3:65:5a:80:b8:29:7a:64:bb:23:c9:03:
59:22:37:25:57:1f:8f:99:5c:5e:f6:ee:3b:d8:06:60:4d:0d:
d4:9a:44:3e:79:4a:04:40:5d:6c:16:88:a7:88:d5:d4:00:f9:
8a:31:13:73
|
etcd证书创建方法
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
| [root@master etcd]# cat xiaowangc.cnf
[ v3_req ]
keyUsage = critical, digitalSignature, keyEncipherment
extendedKeyUsage = serverAuth,clientAuth
basicConstraints = critical, CA:FALSE
authorityKeyIdentifier = keyid,issuer
subjectAltName = DNS:localhost, DNS:master,IP:127.0.0.1, IP:192.168.64.11
================================================================================================
[root@master etcd]# openssl req -new -newkey rsa:2048 -keyout etcd.key -out etcd.csr -nodes -subj '/CN=master'
Generating a RSA private key
..........+++++
........+++++
writing new private key to 'etcd.key'
-----
[root@master etcd]# openssl x509 -req -sha256 -days 36500 -extfile xiaowangc.cnf -extensions v3_req -in etcd.csr -CA etcd-ca.crt -CAkey etcd-ca.key -out etcd.crt -CAcreateserial
Signature ok
subject=CN = master
Getting CA Private Key
[root@master etcd]# openssl x509 -in etcd.crt -noout -text
Certificate:
Data:
Version: 3 (0x2)
Serial Number:
71:0d:f4:02:36:9e:08:d4:9c:a8:40:ee:56:ca:df:79:69:ff:3e:47
Signature Algorithm: sha256WithRSAEncryption
Issuer: CN = etcd-ca
Validity
Not Before: Sep 17 18:49:13 2022 GMT
Not After : Aug 24 18:49:13 2122 GMT
Subject: CN = master
Subject Public Key Info:
Public Key Algorithm: rsaEncryption
RSA Public-Key: (2048 bit)
Modulus:
00:d8:1d:78:c3:92:84:21:e9:fb:42:5b:90:51:b3:
56:4b:4b:ee:a6:95:52:48:6f:c2:89:c3:30:a8:33:
b0:a9:9d:22:c1:2d:b6:dd:75:c8:f2:81:16:86:c4:
ab:cd:2e:b5:dd:6d:ce:79:9d:24:bd:4a:4f:e3:0c:
48:5a:05:cb:40:28:91:db:43:0d:88:66:1a:ad:fc:
33:69:74:49:90:96:35:01:fa:5a:2d:b1:0c:e6:e6:
2c:7b:90:47:95:7c:13:c9:84:3e:f4:f3:d3:c4:8d:
b5:18:a5:22:73:ac:71:a4:ff:31:a4:1e:a8:ac:2b:
ab:69:aa:5c:5d:d7:93:d1:a4:c4:dd:87:f4:c8:e2:
09:ab:ca:0c:06:c5:02:46:60:3a:a6:37:f9:b4:fa:
b3:60:9d:75:58:30:5d:82:e9:a1:62:51:61:af:cd:
e8:b1:4a:b2:72:26:1a:59:6a:d3:46:76:80:7b:64:
de:61:70:46:45:87:b5:cb:dd:bb:2e:77:f3:00:1e:
16:32:8d:6b:65:c8:7a:c0:ce:0e:00:46:07:54:59:
e7:d6:d8:63:34:d9:0f:5b:84:d8:64:75:63:37:02:
c9:14:4c:05:8a:01:8b:46:60:ea:a1:38:a6:6c:75:
1d:3d:a1:41:53:92:b0:2c:e9:58:f9:fe:9e:ea:16:
22:31
Exponent: 65537 (0x10001)
X509v3 extensions:
X509v3 Key Usage: critical
Digital Signature, Key Encipherment
X509v3 Extended Key Usage:
TLS Web Server Authentication, TLS Web Client Authentication
X509v3 Basic Constraints: critical
CA:FALSE
X509v3 Authority Key Identifier:
keyid:99:DC:10:B3:F8:63:BA:F7:DB:B2:B5:97:24:77:D2:DC:6D:F2:E1:1B
X509v3 Subject Alternative Name:
DNS:localhost, DNS:master, IP Address:127.0.0.1, IP Address:192.168.64.11
Signature Algorithm: sha256WithRSAEncryption
1f:de:42:6b:49:8c:df:89:17:93:6c:c6:36:79:6b:87:d9:5f:
57:9e:2e:5c:d0:91:c7:3d:f5:af:f2:92:3c:72:44:c5:1b:f4:
d4:51:12:ca:5f:d6:88:10:fa:99:a5:b7:5b:bd:d7:51:71:0c:
36:76:82:55:2a:49:83:e7:84:ff:b4:fd:46:29:6f:73:59:9e:
8e:ba:29:cc:4c:37:79:a6:84:88:5d:6a:72:25:82:a2:dc:ed:
bb:3b:81:51:94:f6:1a:7a:ce:ee:be:cc:65:c5:e2:aa:ed:93:
59:17:15:6e:fa:6c:32:5a:64:98:6a:8d:c9:c4:2a:3d:2f:d1:
89:61:c7:df:a9:fa:ea:bf:1e:6f:59:c0:cc:48:e6:9c:63:20:
2e:32:f1:58:38:c6:54:de:cf:66:5d:ae:b8:c6:b0:ff:3d:25:
82:99:d7:a1:f3:9b:cb:de:d1:ca:c8:64:68:0d:da:6a:18:c9:
f6:23:10:84:ff:82:82:80:9e:c0:ba:e4:c8:a5:16:8b:6e:1e:
ff:e7:e8:5d:5f:08:7a:bd:60:2a:f8:37:bd:a4:ca:11:95:ea:
05:f9:d7:20:8a:a3:c4:34:b7:c1:2a:56:3d:2a:ef:ab:92:e4:
3f:75:9f:80:3c:b8:d5:d5:0b:93:67:88:0a:ce:ab:0f:aa:b9:
f3:24:be:25
|
peer证书详细信息
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
| # 此证书与etcd没啥差别
[root@master etcd]# openssl x509 -in peer.crt -noout -text
Certificate:
Data:
Version: 3 (0x2)
Serial Number: 5472109028630849635 (0x4bf0d62b47bfe863)
Signature Algorithm: sha256WithRSAEncryption
Issuer: CN = etcd-ca
Validity
Not Before: Sep 17 10:20:05 2022 GMT
Not After : Sep 17 10:20:05 2023 GMT
Subject: CN = master
Subject Public Key Info:
Public Key Algorithm: rsaEncryption
RSA Public-Key: (2048 bit)
Modulus:
00:ca:4c:e3:cd:af:4f:f4:11:0e:8a:2b:c3:b6:6d:
18:03:f1:90:29:a2:28:59:4c:3e:7c:5e:ec:47:0c:
bd:de:0a:7c:40:ef:9a:2b:bb:30:cb:98:1a:88:47:
c9:c6:b7:e4:81:d4:77:e2:88:d8:af:0a:49:a7:be:
ae:9c:31:95:fd:65:9a:ca:b1:1e:e1:66:68:37:60:
45:86:47:f6:b8:bd:06:92:50:02:96:3a:80:71:51:
9c:5c:88:cf:6b:50:e7:f6:6d:ab:6a:94:d6:6a:0d:
3a:a7:92:73:90:ce:1c:3c:67:e9:e2:e0:5c:d5:f9:
9a:1b:0d:64:97:0c:7e:3e:42:36:7a:24:e3:33:eb:
4e:6c:88:76:cd:ad:12:25:a4:53:20:25:64:c4:e9:
61:81:fe:c0:e4:05:4d:1a:ee:35:2d:da:b1:31:96:
5e:a9:04:6c:a1:45:a5:03:01:60:81:6e:6c:eb:07:
f5:79:42:87:f0:64:88:47:bf:86:2d:e4:3a:79:ea:
c6:95:d6:2b:4d:5c:2c:72:0d:f7:b9:c5:f3:da:00:
32:a9:ac:0d:31:9f:33:27:f0:46:a1:9a:cf:c2:c4:
63:da:1c:7b:b9:e2:b2:b0:d2:0c:4d:14:68:4f:83:
ca:88:33:02:ad:fe:d6:00:80:9b:66:65:9f:45:1a:
f1:ff
Exponent: 65537 (0x10001)
X509v3 extensions:
X509v3 Key Usage: critical
Digital Signature, Key Encipherment
X509v3 Extended Key Usage:
TLS Web Server Authentication, TLS Web Client Authentication
X509v3 Basic Constraints: critical
CA:FALSE
X509v3 Authority Key Identifier:
keyid:6A:87:F2:2F:84:67:97:88:97:A3:1B:55:18:AD:1E:AB:5C:33:5B:14
X509v3 Subject Alternative Name:
DNS:localhost, DNS:master, IP Address:192.168.64.11, IP Address:127.0.0.1, IP Address:0:0:0:0:0:0:0:1
Signature Algorithm: sha256WithRSAEncryption
31:3b:b9:eb:45:34:c9:48:e0:e2:27:f6:cf:56:48:37:2b:3d:
10:4f:fb:d8:ea:a2:9a:d4:56:79:d1:7e:09:8e:ec:cd:62:18:
57:31:43:05:b2:69:01:34:3a:48:ee:25:a1:8b:81:36:2b:11:
2a:93:06:ba:73:e3:c1:d9:a2:1d:3e:28:72:9c:11:b4:92:f1:
cc:9e:2d:4b:a2:c0:16:10:c6:e9:6c:68:99:15:53:49:bd:d5:
3b:57:d9:37:68:98:c6:7c:90:d0:53:f8:19:34:ff:2b:30:c4:
e2:40:32:b7:f8:f0:bd:74:c7:57:da:92:49:ed:85:f7:af:81:
b4:e2:ad:17:5b:d4:8a:d6:ea:55:1b:86:e8:3a:c9:5f:ea:fd:
1e:a7:ae:71:6e:89:70:08:3d:db:45:bf:94:bf:89:f2:c8:2a:
1b:16:78:34:89:8d:65:db:18:78:46:a3:ba:cb:40:c2:fa:6d:
bb:c1:dc:b7:e4:45:6c:a8:87:ef:bf:78:ac:c1:cd:96:d6:49:
08:75:ec:47:38:42:c4:c6:db:a4:f9:56:2c:81:9e:44:81:91:
c7:73:59:64:f5:79:e3:28:f8:1f:62:49:ee:2a:76:c9:e7:4a:
f8:4f:2f:0a:65:ef:3f:f6:8b:65:77:c2:90:aa:14:93:d3:18:
bf:f6:2f:6e
|
peer证书创建方法
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
| [root@master etcd]# cat xiaowangc.cnf
[ v3_req ]
keyUsage = critical, digitalSignature, keyEncipherment
extendedKeyUsage = serverAuth,clientAuth
basicConstraints = critical, CA:FALSE
authorityKeyIdentifier = keyid,issuer
subjectAltName = DNS:localhost, DNS:master,IP:127.0.0.1, IP:192.168.64.11
================================================================================================
[root@master etcd]# openssl req -new -newkey rsa:2048 -keyout peer.key -out peer.csr -nodes -subj '/CN=master'
[root@master etcd]# openssl x509 -req -sha256 -days 36500 -extfile xiaowangc.cnf -extensions v3_req -in peer.csr -CA etcd-ca.crt -CAkey etcd-ca.key -out peer.crt -CAcreateserial
Signature ok
subject=CN = master
Getting CA Private Key
[root@master etcd]# openssl x509 -in peer.crt -noout -text
Certificate:
Data:
Version: 3 (0x2)
Serial Number:
71:0d:f4:02:36:9e:08:d4:9c:a8:40:ee:56:ca:df:79:69:ff:3e:48
Signature Algorithm: sha256WithRSAEncryption
Issuer: CN = etcd-ca
Validity
Not Before: Sep 17 19:50:36 2022 GMT
Not After : Aug 24 19:50:36 2122 GMT
Subject: CN = master
Subject Public Key Info:
Public Key Algorithm: rsaEncryption
RSA Public-Key: (2048 bit)
Modulus:
00:e9:ef:71:77:f8:93:8e:1c:cb:d8:25:22:56:94:
1f:d7:55:34:63:a2:fe:42:33:7e:5d:c3:f0:d2:97:
b9:46:bf:03:42:83:2d:49:1e:6b:91:96:2c:22:21:
76:1e:0d:2f:c1:fb:c0:72:cf:ef:ae:08:fe:74:a3:
ee:0a:8a:c6:3a:bf:2a:aa:c7:ef:0c:9f:e4:2e:12:
70:6e:10:52:7c:a3:0b:d5:72:59:fd:41:7e:cf:f3:
ee:ed:7e:d9:87:5f:be:d3:b3:1c:d9:ed:d2:ef:8e:
7d:44:44:39:f7:bc:01:00:a7:ae:d7:6d:86:05:58:
df:9e:ed:cd:76:49:f1:63:71:2c:4e:d1:3f:e7:35:
e5:96:11:43:49:ba:ce:64:36:ef:81:f3:99:73:6c:
e2:04:0a:4d:f0:27:cf:41:e7:15:7e:8b:b2:ff:b6:
ae:d5:c8:f5:a5:f3:58:13:3d:97:0b:f3:63:48:ae:
61:1f:f7:73:82:86:64:3f:2e:36:f3:50:b8:ae:f6:
c2:48:cf:e0:00:0b:42:0e:09:9e:3b:c4:f1:28:e5:
c2:a7:51:98:a4:3b:dc:34:96:ec:9f:24:a4:71:26:
e0:de:c4:37:f3:1b:23:b9:c0:ed:a1:7f:8e:d5:32:
49:b5:b0:4e:1b:e0:66:6e:75:37:1d:e6:4d:dc:a6:
06:eb
Exponent: 65537 (0x10001)
X509v3 extensions:
X509v3 Key Usage: critical
Digital Signature, Key Encipherment
X509v3 Extended Key Usage:
TLS Web Server Authentication, TLS Web Client Authentication
X509v3 Basic Constraints: critical
CA:FALSE
X509v3 Authority Key Identifier:
keyid:99:DC:10:B3:F8:63:BA:F7:DB:B2:B5:97:24:77:D2:DC:6D:F2:E1:1B
X509v3 Subject Alternative Name:
DNS:localhost, DNS:master, IP Address:127.0.0.1, IP Address:192.168.64.11
Signature Algorithm: sha256WithRSAEncryption
a9:0e:22:f3:47:52:4f:61:3e:4a:3a:03:d2:51:3e:9c:f2:96:
ed:ff:00:6b:f8:cc:68:30:da:6e:b2:50:f9:10:78:70:de:60:
18:fc:b4:2c:7a:be:c3:48:65:b2:35:7e:79:ce:59:f1:74:bb:
4f:3e:58:ae:d3:90:e5:63:f2:f2:17:0c:ad:61:68:77:c2:7f:
13:37:c7:42:57:40:ce:a7:a7:b5:13:a4:56:ae:a7:14:b0:e8:
f3:b2:67:8b:25:e5:87:2d:f6:c8:40:eb:f1:d7:79:6d:45:45:
d9:4f:a9:a5:70:1c:78:fd:19:47:b2:6e:f5:39:7c:79:ee:c8:
6b:d1:12:9d:4c:4c:29:9b:f7:12:4d:32:56:8d:2e:db:c3:1a:
67:a1:00:f2:15:95:7c:c1:65:70:57:e5:99:90:8d:0d:9d:dc:
3f:e3:42:90:9a:6a:42:5e:24:19:da:65:56:37:39:9c:c5:84:
5e:37:21:89:f2:4a:2d:e0:8c:10:08:27:4d:ec:ea:e2:a9:4d:
c7:a3:ff:0d:21:0d:eb:db:3c:dc:4e:83:75:d7:75:15:43:0d:
33:74:f6:2d:b3:b2:e6:96:cb:22:19:5e:3b:34:57:4c:3f:9f:
e3:3f:b3:06:3c:f2:15:c1:54:cd:bb:62:3a:39:17:21:da:d6:
1d:79:5a:aa
|
healthehck-client证书
此证书在二进制部署方式不需要，用于ETCD通过pod创建时使用
controller-manager详细信息
controller-manager证书是存放在/etc/kubernetes/controller-manager.conf文件中
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
| [root@master kubernetes]# cat controller-manager.conf
apiVersion: v1
clusters:
- cluster: # 下面是CA证书信息
certificate-authority-data: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSUMvakNDQWVhZ0F3SUJBZ0lCQURBTkJna3Foa2lHOXcwQkFRc0ZBREFWTVJNd0VRWURWUVFERXdwcmRXSmwKY201bGRHVnpNQjRYRFRJeU1Ea3hOekV3TWpBd05Gb1hEVE15TURreE5ERXdNakF3TkZvd0ZURVRNQkVHQTFVRQpBeE1LYTNWaVpYSnVaWFJsY3pDQ0FTSXdEUVlKS29aSWh2Y05BUUVCQlFBRGdnRVBBRENDQVFvQ2dnRUJBS1NRCkVScnRRUHBPNzE0VGVueEQ5ZUZ0d25tNFFWWG56L1liUE5MNE5VdXdmcUNPTVg1MGJNTWxiblkya3poZmlSSmQKSWxVK3o4RVYrZGJ6WDJUd0JUWGRxN1pOeDFxdmx2bFpuZDlUY21Zd3l6eUpCRUROVjdmMG9lYWxUSUIwMGVRYQovYjFWeStPL1I0NUhuY3VXUDhMc2lwV3J5U3I1WjRpcnkvVmIrbnB4T2xVeXpTL3BtdVhBTmdGUGVpL0w3MUlpCkxha0NlNmZNRCtMMHpGektCdGVVeVpuWWZMOWxyVm0xeG1QUjVFdkdZN2NaNTl3YmtqbW94VGE1bjdVTzR6SjgKZndiak5oNHVLVzdqOHpvajVTWTJBMEZIZ0RSbnY5NlFxVk5SSkIraGMrRDBrTE1EdmRHcUM0QVpaUzJDbUNLUQpBTUZGUUlGSDIyMCtBRngvNGM4Q0F3RUFBYU5aTUZjd0RnWURWUjBQQVFIL0JBUURBZ0trTUE4R0ExVWRFd0VCCi93UUZNQU1CQWY4d0hRWURWUjBPQkJZRUZDdjNSOHRCVEttMDJwTVlNT0RxRUg0eEpnUktNQlVHQTFVZEVRUU8KTUF5Q0NtdDFZbVZ5Ym1WMFpYTXdEUVlKS29aSWh2Y05BUUVMQlFBRGdnRUJBR3hwamdwcjVOZmxxMkJBZC9vdQpTQW14WDIyVi9XTmJZZDNDYVA2dVAwY2F3QXdWMm8xY3lucjNwVk9reG8xaDZ6UjBPWkdvNEJpc2tlWUJKUHNkCjdjeVhwRGVseDh2b2QvUjc1NUQ5TmcwOWUybFlSQWlmSE9NZXkvbjdYb0JLNWNRUk9KUWtmZmxvYWFBRFZsNlAKdVBSNXJhUWd0c0hIZUUwVy9hTitqVTQrby92VFJ4TnZzdUtERVpXY1pyYnBOOUJRZjVGc09vRTAyV25XRi9uUQpVOXNwVjlmanJVU0I5MFhqTG1GdDRFUW1ucm5JWjRjMU42TnJqQ0szTk1NdFlidFE2VXo2M3FDVzRtZmRoK3FFCi9DcmVHTTR1T1JLMnBjVjYwYlFHOVhTOFVDWXc4bWN1SVFuTlRpc05NaXMwbCtkelV1Ui9qYVJZS1EydEdaMTAKWlVJPQotLS0tLUVORCBDRVJUSUZJQ0FURS0tLS0tCg==
server: https://192.168.64.11:6443
name: kubernetes
contexts:
- context:
cluster: kubernetes
user: system:kube-controller-manager
name: system:kube-controller-manager@kubernetes
current-context: system:kube-controller-manager@kubernetes
kind: Config
preferences: {}
users:
- name: system:kube-controller-manager
user: # controller-manager证书
client-certificate-data: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSURGakNDQWY2Z0F3SUJBZ0lJZlVjQTJvc3RGMmd3RFFZSktvWklodmNOQVFFTEJRQXdGVEVUTUJFR0ExVUUKQXhNS2EzVmlaWEp1WlhSbGN6QWVGdzB5TWpBNU1UY3hNREl3TURSYUZ3MHlNekE1TVRjeE1ESXdNRFphTUNreApKekFsQmdOVkJBTVRIbk41YzNSbGJUcHJkV0psTFdOdmJuUnliMnhzWlhJdGJXRnVZV2RsY2pDQ0FTSXdEUVlKCktvWklodmNOQVFFQkJRQURnZ0VQQURDQ0FRb0NnZ0VCQUwyWmlNKzEwOG93cVpsNVh2UUp6TkhRVmdkREV5T1IKakFhRC9tZXFWL2ZjaXdrU0pIS1U2bS9jaFdQdVpiVFE2UlNvMWYyK0o5cmpiWFhmWmNPQUJKUHRzZ3JvZGpwSgpqY0N6dmtBNDJWOVVkbmhDSk5JOGNudGhWdTRjd3FlMlFxZDVPNjZWSVpNMTNJZjhwcU1SRU5ScWZTeGg5eFl2CnRTTzB3cWtaYnRrK2lxbk5SaHpKODBBbU5PVFB0S2FFcGo3Wk4ybTV1WC90cGZoU0NuQzdPcjNMZDNxTzBlWlMKZTBHdlB4R3VWUitBMXg4dVNUQndhdHBhN2dHdDc4NHhhY1hhMDhRSDlPcUFQZXZwZWk2V1R6R2VRNEVUTGZMUQphQVJhNm1KSW1qSkQvTjNycHloWnhTL2ZiZE5HWnIxdjhzNDBDZTBVb3RNcWh0aHMycnptSitzQ0F3RUFBYU5XCk1GUXdEZ1lEVlIwUEFRSC9CQVFEQWdXZ01CTUdBMVVkSlFRTU1Bb0dDQ3NHQVFVRkJ3TUNNQXdHQTFVZEV3RUIKL3dRQ01BQXdId1lEVlIwakJCZ3dGb0FVSy9kSHkwRk1xYlRha3hndzRPb1FmakVtQkVvd0RRWUpLb1pJaHZjTgpBUUVMQlFBRGdnRUJBSU9ZZlczQjI5S1VzNEhPdWtxeUltbzBCeU5meHJRYVlLNzdJMWh0ZnZGZ09HVVNCcWRsCkc0YUR2NnZFRndHaWV0c2Q3RGJPc3ZxUnF5TFhOa1c4dll1SnFoMTh4c3MyZTdKWXlYUUtvbXI1VnVaeUFVaXAKMUJFZUJhcEZuaHdkNUcxZTYxajdKT0tMVHl1YUgyMVY1WmJYVnZrbVRUdWMyOHFYdWY5bUx2ME50dDN5SG1naApXcit6em1hSFU2OFhOdExkZEcxVHNjdFlSbXhyRVVTZTkrTmd1dzhnUWFJRlJnRHhoNjBBWERySmZhc2lLV0lmCks5VDNjME55c3d2ZmF0K0VNaXNIaDdiS29OZWhyNndsTE9iSFNGVU0wbHF0d3NRcCtRMVZTUXJRVVh2eE9vTlYKL09sNVVJSUd6VzdhMTBTRmkrWmJxL0FQOThRTnYvSlVzTm89Ci0tLS0tRU5EIENFUlRJRklDQVRFLS0tLS0K
# controller-manager私钥
client-key-data: LS0tLS1CRUdJTiBSU0EgUFJJVkFURSBLRVktLS0tLQpNSUlFcEFJQkFBS0NBUUVBdlptSXo3WFR5akNwbVhsZTlBbk0wZEJXQjBNVEk1R01Cb1ArWjZwWDk5eUxDUklrCmNwVHFiOXlGWSs1bHRORHBGS2pWL2I0bjJ1TnRkZDlsdzRBRWsrMnlDdWgyT2ttTndMTytRRGpaWDFSMmVFSWsKMGp4eWUyRlc3aHpDcDdaQ3AzazdycFVoa3pYY2gveW1veEVRMUdwOUxHSDNGaSsxSTdUQ3FSbHUyVDZLcWMxRwpITW56UUNZMDVNKzBwb1NtUHRrM2FibTVmKzJsK0ZJS2NMczZ2Y3QzZW83UjVsSjdRYTgvRWE1Vkg0RFhIeTVKCk1IQnEybHJ1QWEzdnpqRnB4ZHJUeEFmMDZvQTk2K2w2THBaUE1aNURnUk10OHRCb0JGcnFZa2lhTWtQODNldW4KS0ZuRkw5OXQwMFptdlcveXpqUUo3UlNpMHlxRzJHemF2T1luNndJREFRQUJBb0lCQVFDc0RQcFFlcENSQnUydwpmcW9DekMzWUs3VVZhL0dmTWtHZDNBTnRjTy9ZMVlJNW5nUURFazFYYXdhRXMxNEo0aFhRa0pGM2JDcGdnRWJoClV2TFdvSUlHOXdpOHkwd1dBbzhtMGpVUHRFYlZNaUU3YWRKZUVVcFYyZlAzcVpPZWUwOHJDR0YzUUk4eU5ndEUKUDZtN2lnMzZwQk9veGRGaGliTlhqbjJpMDVoNmU2MFE3TGUyc25PQWVHRlVHVlNYRHZCRjIzcjVkV0hDQVpZcwplV2Fjbm02MkF2b3VHNHVEYWF6c20zM1hJVkZOYXpkVHdVRGkwb2lmNi9od2ptSk05TTVJeTl0ZC9hTzlyME9OCjFPMVJUMk9ycGcrSWFYWk4zWnJJRFFnWUpSeXZOSm1wTUJud01GMHpaYU5MemNoRlV1QXA0V0xLNmhJN2NJRGgKbkxCK0wvbFpBb0dCQU9oY3VaZEh6LzFhdXdXZWZEbEMwRGMvd1hoTXEzbERwUzZzVGFCT2gvTktsRFBCQ1RXWApkNzR6YTZPQ3Y2c0Nsd3drT3c3L0dhK2UyeTA3NzA4SHcvbU50ak5uVUlxdFc1ZVdkaEZqSWlENmt4ampjSHR0CitiWGxqaE5vSzQzZnlnYUM0Q3IzRnV6ZnJCRUszRDhjTGhvTkFkN0JvUUZ0eWVMb3JlcHEvZDRuQW9HQkFORGoKSzlpb2U3QWZlS1ovYUNVL2dVZkdEYVlNUjI2N2VGemJrdVdvcXZXQlkxV2NLbVNkYzZEbDRvM0VtT2Z3K21ObgpGR01vMG93cDY3UGtDRjcrcUlTcDVYV3c3cGUrOGRMMnN5U1ZMWnM3ejF0NG5hZE82a01GQXhHWG5VSDAxQVVVCkR2UkFWYWVNR3JwNXJiVDFiZG5JMXE4WXJnanV6SjdRUW1qMEFBYWRBb0dCQUttM2NHY3FzS1FnclJHQm5NSkcKSnNiejdsL3J3Q01tWVhRaHJlRTArdCtjelhxdnVBWkl4OUZJeFluOGFmcUNQY2xFZlU2S3pUd1ZENG1PaVZCMApINVFiQ2NXcDVJNGw2UXhqZllGZG93UHJnWjFnSWp4Rksyck1iR1dJWktlUG1ZUC8rN1BtSGZ5TnNxUVFCcWFoCjhwcGNmYzB5S0dOZXlXTFBDSmg3NVVscEFvR0FIM0l6aFpoSGxvb0dWYnBVYVZjWUZVQUJpZi9MT1NaTHhsN2YKekdjSjVZK203cHBsMzJPOHBubzFFdmFIdGxNV3ZxUWo4NUdQc0w0VzE2djZmcUtEcUFVVG9CWVV0UTl2eER5VApWMnlGd3hyTDZvOUwzSVlLeWpBVStDOEU0NHNCNkFuTy9vSTQ0dEk2cTl2cGhKWjJCUlV4REljQW5DT205am1QCjVkRGx1QmtDZ1lCNDcrVUJhTkd4b3h2NFF0N3o5Z1F0d3hrR2Y1WDFHVW9lK2xDUlB6Ris0S2lmMzB2VE9ZdWIKK1RPYkNLSHFrV1drNDZiTXltaGdGcXhMdFFuY0QwaGNiYitiY0tXODdQTG9aK3VMQ1B5Smt5ZTdBZ3NCRUVSTQpGNzVRY21RVUNPZDhWMk5IaU41eHJKSWtIYWQxaXpPTDY4T0tqTDJ2YmFscm5SZHRCSDZkcnc9PQotLS0tLUVORCBSU0EgUFJJVkFURSBLRVktLS0tLQo=
|
controller-manager证书是通过base64加密存放与配置文件中，需要进行解密进行查看
将client-certificate-data的值通过base64 -d进行解密
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
| [root@master kubernetes]# echo LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSURGakNDQWY2Z0F3SUJBZ0lJZlVjQTJvc3RGMmd3RFFZSktvWklodmNOQVFFTEJRQXdGVEVUTUJFR0ExVUUKQXhNS2EzVmlaWEp1WlhSbGN6QWVGdzB5TWpBNU1UY3hNREl3TURSYUZ3MHlNekE1TVRjeE1ESXdNRFphTUNreApKekFsQmdOVkJBTVRIbk41YzNSbGJUcHJkV0psTFdOdmJuUnliMnhzWlhJdGJXRnVZV2RsY2pDQ0FTSXdEUVlKCktvWklodmNOQVFFQkJRQURnZ0VQQURDQ0FRb0NnZ0VCQUwyWmlNKzEwOG93cVpsNVh2UUp6TkhRVmdkREV5T1IKakFhRC9tZXFWL2ZjaXdrU0pIS1U2bS9jaFdQdVpiVFE2UlNvMWYyK0o5cmpiWFhmWmNPQUJKUHRzZ3JvZGpwSgpqY0N6dmtBNDJWOVVkbmhDSk5JOGNudGhWdTRjd3FlMlFxZDVPNjZWSVpNMTNJZjhwcU1SRU5ScWZTeGg5eFl2CnRTTzB3cWtaYnRrK2lxbk5SaHpKODBBbU5PVFB0S2FFcGo3Wk4ybTV1WC90cGZoU0NuQzdPcjNMZDNxTzBlWlMKZTBHdlB4R3VWUitBMXg4dVNUQndhdHBhN2dHdDc4NHhhY1hhMDhRSDlPcUFQZXZwZWk2V1R6R2VRNEVUTGZMUQphQVJhNm1KSW1qSkQvTjNycHloWnhTL2ZiZE5HWnIxdjhzNDBDZTBVb3RNcWh0aHMycnptSitzQ0F3RUFBYU5XCk1GUXdEZ1lEVlIwUEFRSC9CQVFEQWdXZ01CTUdBMVVkSlFRTU1Bb0dDQ3NHQVFVRkJ3TUNNQXdHQTFVZEV3RUIKL3dRQ01BQXdId1lEVlIwakJCZ3dGb0FVSy9kSHkwRk1xYlRha3hndzRPb1FmakVtQkVvd0RRWUpLb1pJaHZjTgpBUUVMQlFBRGdnRUJBSU9ZZlczQjI5S1VzNEhPdWtxeUltbzBCeU5meHJRYVlLNzdJMWh0ZnZGZ09HVVNCcWRsCkc0YUR2NnZFRndHaWV0c2Q3RGJPc3ZxUnF5TFhOa1c4dll1SnFoMTh4c3MyZTdKWXlYUUtvbXI1VnVaeUFVaXAKMUJFZUJhcEZuaHdkNUcxZTYxajdKT0tMVHl1YUgyMVY1WmJYVnZrbVRUdWMyOHFYdWY5bUx2ME50dDN5SG1naApXcit6em1hSFU2OFhOdExkZEcxVHNjdFlSbXhyRVVTZTkrTmd1dzhnUWFJRlJnRHhoNjBBWERySmZhc2lLV0lmCks5VDNjME55c3d2ZmF0K0VNaXNIaDdiS29OZWhyNndsTE9iSFNGVU0wbHF0d3NRcCtRMVZTUXJRVVh2eE9vTlYKL09sNVVJSUd6VzdhMTBTRmkrWmJxL0FQOThRTnYvSlVzTm89Ci0tLS0tRU5EIENFUlRJRklDQVRFLS0tLS0K | base64 -d > cm.crt
[root@master kubernetes]# cat cm.crt
-----BEGIN CERTIFICATE-----
MIIDFjCCAf6gAwIBAgIIfUcA2ostF2gwDQYJKoZIhvcNAQELBQAwFTETMBEGA1UE
AxMKa3ViZXJuZXRlczAeFw0yMjA5MTcxMDIwMDRaFw0yMzA5MTcxMDIwMDZaMCkx
JzAlBgNVBAMTHnN5c3RlbTprdWJlLWNvbnRyb2xsZXItbWFuYWdlcjCCASIwDQYJ
KoZIhvcNAQEBBQADggEPADCCAQoCggEBAL2ZiM+108owqZl5XvQJzNHQVgdDEyOR
jAaD/meqV/fciwkSJHKU6m/chWPuZbTQ6RSo1f2+J9rjbXXfZcOABJPtsgrodjpJ
jcCzvkA42V9UdnhCJNI8cnthVu4cwqe2Qqd5O66VIZM13If8pqMRENRqfSxh9xYv
tSO0wqkZbtk+iqnNRhzJ80AmNOTPtKaEpj7ZN2m5uX/tpfhSCnC7Or3Ld3qO0eZS
e0GvPxGuVR+A1x8uSTBwatpa7gGt784xacXa08QH9OqAPevpei6WTzGeQ4ETLfLQ
aARa6mJImjJD/N3rpyhZxS/fbdNGZr1v8s40Ce0UotMqhths2rzmJ+sCAwEAAaNW
MFQwDgYDVR0PAQH/BAQDAgWgMBMGA1UdJQQMMAoGCCsGAQUFBwMCMAwGA1UdEwEB
/wQCMAAwHwYDVR0jBBgwFoAUK/dHy0FMqbTakxgw4OoQfjEmBEowDQYJKoZIhvcN
AQELBQADggEBAIOYfW3B29KUs4HOukqyImo0ByNfxrQaYK77I1htfvFgOGUSBqdl
G4aDv6vEFwGietsd7DbOsvqRqyLXNkW8vYuJqh18xss2e7JYyXQKomr5VuZyAUip
1BEeBapFnhwd5G1e61j7JOKLTyuaH21V5ZbXVvkmTTuc28qXuf9mLv0Ntt3yHmgh
Wr+zzmaHU68XNtLddG1TsctYRmxrEUSe9+Nguw8gQaIFRgDxh60AXDrJfasiKWIf
K9T3c0Nyswvfat+EMisHh7bKoNehr6wlLObHSFUM0lqtwsQp+Q1VSQrQUXvxOoNV
/Ol5UIIGzW7a10SFi+Zbq/AP98QNv/JUsNo=
-----END CERTIFICATE-----
[root@master kubernetes]# openssl x509 -in cm.crt -noout -text
Certificate:
Data:
Version: 3 (0x2)
Serial Number: 9027184916725307240 (0x7d4700da8b2d1768)
Signature Algorithm: sha256WithRSAEncryption
Issuer: CN = kubernetes
Validity
Not Before: Sep 17 10:20:04 2022 GMT
Not After : Sep 17 10:20:06 2023 GMT
Subject: CN = system:kube-controller-manager
Subject Public Key Info:
Public Key Algorithm: rsaEncryption
RSA Public-Key: (2048 bit)
Modulus:
00:bd:99:88:cf:b5:d3:ca:30:a9:99:79:5e:f4:09:
cc:d1:d0:56:07:43:13:23:91:8c:06:83:fe:67:aa:
57:f7:dc:8b:09:12:24:72:94:ea:6f:dc:85:63:ee:
65:b4:d0:e9:14:a8:d5:fd:be:27:da:e3:6d:75:df:
65:c3:80:04:93:ed:b2:0a:e8:76:3a:49:8d:c0:b3:
be:40:38:d9:5f:54:76:78:42:24:d2:3c:72:7b:61:
56:ee:1c:c2:a7:b6:42:a7:79:3b:ae:95:21:93:35:
dc:87:fc:a6:a3:11:10:d4:6a:7d:2c:61:f7:16:2f:
b5:23:b4:c2:a9:19:6e:d9:3e:8a:a9:cd:46:1c:c9:
f3:40:26:34:e4:cf:b4:a6:84:a6:3e:d9:37:69:b9:
b9:7f:ed:a5:f8:52:0a:70:bb:3a:bd:cb:77:7a:8e:
d1:e6:52:7b:41:af:3f:11:ae:55:1f:80:d7:1f:2e:
49:30:70:6a:da:5a:ee:01:ad:ef:ce:31:69:c5:da:
d3:c4:07:f4:ea:80:3d:eb:e9:7a:2e:96:4f:31:9e:
43:81:13:2d:f2:d0:68:04:5a:ea:62:48:9a:32:43:
fc:dd:eb:a7:28:59:c5:2f:df:6d:d3:46:66:bd:6f:
f2:ce:34:09:ed:14:a2:d3:2a:86:d8:6c:da:bc:e6:
27:eb
Exponent: 65537 (0x10001)
X509v3 extensions:
X509v3 Key Usage: critical
Digital Signature, Key Encipherment
X509v3 Extended Key Usage:
TLS Web Client Authentication
X509v3 Basic Constraints: critical
CA:FALSE
X509v3 Authority Key Identifier:
keyid:2B:F7:47:CB:41:4C:A9:B4:DA:93:18:30:E0:EA:10:7E:31:26:04:4A
Signature Algorithm: sha256WithRSAEncryption
83:98:7d:6d:c1:db:d2:94:b3:81:ce:ba:4a:b2:22:6a:34:07:
23:5f:c6:b4:1a:60:ae:fb:23:58:6d:7e:f1:60:38:65:12:06:
a7:65:1b:86:83:bf:ab:c4:17:01:a2:7a:db:1d:ec:36:ce:b2:
fa:91:ab:22:d7:36:45:bc:bd:8b:89:aa:1d:7c:c6:cb:36:7b:
b2:58:c9:74:0a:a2:6a:f9:56:e6:72:01:48:a9:d4:11:1e:05:
aa:45:9e:1c:1d:e4:6d:5e:eb:58:fb:24:e2:8b:4f:2b:9a:1f:
6d:55:e5:96:d7:56:f9:26:4d:3b:9c:db:ca:97:b9:ff:66:2e:
fd:0d:b6:dd:f2:1e:68:21:5a:bf:b3:ce:66:87:53:af:17:36:
d2:dd:74:6d:53:b1:cb:58:46:6c:6b:11:44:9e:f7:e3:60:bb:
0f:20:41:a2:05:46:00:f1:87:ad:00:5c:3a:c9:7d:ab:22:29:
62:1f:2b:d4:f7:73:43:72:b3:0b:df:6a:df:84:32:2b:07:87:
b6:ca:a0:d7:a1:af:ac:25:2c:e6:c7:48:55:0c:d2:5a:ad:c2:
c4:29:f9:0d:55:49:0a:d0:51:7b:f1:3a:83:55:fc:e9:79:50:
82:06:cd:6e:da:d7:44:85:8b:e6:5b:ab:f0:0f:f7:c4:0d:bf:
f2:54:b0:da
|
controller-manager证书创建
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
| [root@master etcd]# cat xiaowangc.cnf
[ v3_req ]
keyUsage = critical, digitalSignature, keyEncipherment
extendedKeyUsage = clientAuth
basicConstraints = critical, CA:FALSE
authorityKeyIdentifier = keyid,issuer
==============================================================================================
[root@master pki]# openssl req -new -newkey rsa:2048 -keyout controller-manager.key -out controller-manager.csr -nodes -subj '/CN=system:kube-controller-manager'
Generating a RSA private key
.....................................+++++
........................+++++
writing new private key to 'controller-manager.key'
-----
[root@master pki]# openssl x509 -req -sha256 -days 36500 -extfile xiaowangc.cnf -extensions v3_req -in controller-manager.csr -CA ca.crt -CAkey ca.pem -out controller-manager.crt -CAcreateserial
Signature ok
subject=CN = system:kube-controller-manager
Getting CA Private Key
[root@master pki]# openssl x509 -in controller-manager.crt -noout -text
Certificate:
Data:
Version: 3 (0x2)
Serial Number:
19:39:ff:4c:dd:c2:d6:76:f3:cc:7e:f9:b8:8c:fb:4e:b5:17:5b:21
Signature Algorithm: sha256WithRSAEncryption
Issuer: CN = kubernetes
Validity
Not Before: Sep 17 21:55:00 2022 GMT
Not After : Aug 24 21:55:00 2122 GMT
Subject: CN = system:kube-controller-manager
Subject Public Key Info:
Public Key Algorithm: rsaEncryption
RSA Public-Key: (2048 bit)
Modulus:
00:a2:08:62:a6:6e:21:0e:1a:e2:73:1a:9b:d7:8b:
2c:c0:fe:72:85:77:a3:ca:62:80:5f:bf:f3:6c:14:
05:c2:1d:30:68:d7:c9:b0:d1:7f:cf:78:f5:41:8f:
a1:60:be:26:58:43:74:c4:af:45:c7:e2:1e:f8:df:
53:87:b4:46:20:ab:2e:d7:13:bd:35:f2:55:5b:bd:
3a:16:f4:d6:98:c5:a4:7a:57:56:40:ba:98:28:e0:
d6:78:11:bd:b5:58:18:8c:4c:ea:8a:88:3e:1b:9a:
8f:79:39:32:05:26:61:e1:5d:9c:f1:bb:91:49:8c:
39:76:e1:ac:43:a3:dd:5b:82:8b:72:ae:52:83:50:
12:20:10:13:3b:66:89:38:9b:de:4a:42:29:81:8a:
43:79:31:14:5c:cd:c7:bd:f0:ed:89:99:09:94:d0:
e6:43:18:3f:18:14:79:fc:be:85:f7:13:e9:a3:f8:
45:67:60:5a:e3:e6:a9:72:79:c4:ca:90:bb:05:89:
d3:52:13:f7:6d:b1:10:b7:8a:5a:3e:56:cd:d2:b3:
46:bd:fb:10:d3:ba:a0:05:ea:5d:22:c0:40:4e:ed:
95:15:7e:80:5b:9a:e7:89:bf:aa:18:1f:b6:ca:1f:
c1:a1:79:2c:4f:2c:c6:62:cd:5d:93:35:c7:bd:b6:
c8:43
Exponent: 65537 (0x10001)
X509v3 extensions:
X509v3 Key Usage: critical
Digital Signature, Key Encipherment
X509v3 Extended Key Usage:
TLS Web Client Authentication
X509v3 Basic Constraints: critical
CA:FALSE
X509v3 Authority Key Identifier:
keyid:33:AC:40:D4:C2:3E:E9:64:2B:F5:00:C7:EB:E9:78:45:62:DD:3E:15
Signature Algorithm: sha256WithRSAEncryption
31:91:9f:f1:f1:99:6c:81:cb:65:8c:df:1f:db:0d:61:b2:b7:
fb:34:51:7a:61:17:09:42:8e:19:a4:32:2b:de:23:d3:96:32:
9f:8f:9f:96:0a:65:1f:ae:3b:cc:db:e6:b6:20:99:c9:5e:58:
c6:da:ea:e3:9a:64:d2:ee:6c:37:f7:ff:66:1d:87:6e:e5:fc:
fd:87:db:8e:e4:af:f3:2a:e0:46:db:a7:59:94:74:80:ce:07:
1e:e6:a5:a4:72:26:c2:de:2b:e1:6d:5b:eb:c0:70:0c:3e:ca:
39:fe:60:ad:c5:44:7c:fe:6f:ae:b9:5d:08:5b:02:05:88:29:
d4:24:8c:1a:1b:88:fe:58:4a:d5:ee:6f:4b:37:ac:e0:77:23:
8d:5a:71:cf:f4:f8:5d:b4:36:df:29:aa:11:42:35:0b:39:b7:
74:e4:81:c6:f3:29:d6:8f:75:3b:50:53:59:43:1c:75:6e:14:
5e:64:eb:36:1c:1b:f4:6b:b3:9b:c3:42:98:60:eb:2e:ea:ed:
f3:65:3a:15:9e:7a:c6:99:99:01:aa:1e:08:73:10:3f:c9:06:
b3:45:b0:b5:3f:db:08:18:60:bd:3d:5d:fa:29:48:ba:21:34:
f8:16:51:b1:3e:89:2c:27:a4:55:6d:5f:a4:d1:e7:cd:2d:bd:
74:eb:17:e7
|
scheduler证书详细信息
scheduler证书同controller-manager证书一样存放在文件中
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
| [root@master kubernetes]# cat scheduler.conf
apiVersion: v1
clusters:
- cluster:
# CA证书
certificate-authority-data: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSUMvakNDQWVhZ0F3SUJBZ0lCQURBTkJna3Foa2lHOXcwQkFRc0ZBREFWTVJNd0VRWURWUVFERXdwcmRXSmwKY201bGRHVnpNQjRYRFRJeU1Ea3hOekV3TWpBd05Gb1hEVE15TURreE5ERXdNakF3TkZvd0ZURVRNQkVHQTFVRQpBeE1LYTNWaVpYSnVaWFJsY3pDQ0FTSXdEUVlKS29aSWh2Y05BUUVCQlFBRGdnRVBBRENDQVFvQ2dnRUJBS1NRCkVScnRRUHBPNzE0VGVueEQ5ZUZ0d25tNFFWWG56L1liUE5MNE5VdXdmcUNPTVg1MGJNTWxiblkya3poZmlSSmQKSWxVK3o4RVYrZGJ6WDJUd0JUWGRxN1pOeDFxdmx2bFpuZDlUY21Zd3l6eUpCRUROVjdmMG9lYWxUSUIwMGVRYQovYjFWeStPL1I0NUhuY3VXUDhMc2lwV3J5U3I1WjRpcnkvVmIrbnB4T2xVeXpTL3BtdVhBTmdGUGVpL0w3MUlpCkxha0NlNmZNRCtMMHpGektCdGVVeVpuWWZMOWxyVm0xeG1QUjVFdkdZN2NaNTl3YmtqbW94VGE1bjdVTzR6SjgKZndiak5oNHVLVzdqOHpvajVTWTJBMEZIZ0RSbnY5NlFxVk5SSkIraGMrRDBrTE1EdmRHcUM0QVpaUzJDbUNLUQpBTUZGUUlGSDIyMCtBRngvNGM4Q0F3RUFBYU5aTUZjd0RnWURWUjBQQVFIL0JBUURBZ0trTUE4R0ExVWRFd0VCCi93UUZNQU1CQWY4d0hRWURWUjBPQkJZRUZDdjNSOHRCVEttMDJwTVlNT0RxRUg0eEpnUktNQlVHQTFVZEVRUU8KTUF5Q0NtdDFZbVZ5Ym1WMFpYTXdEUVlKS29aSWh2Y05BUUVMQlFBRGdnRUJBR3hwamdwcjVOZmxxMkJBZC9vdQpTQW14WDIyVi9XTmJZZDNDYVA2dVAwY2F3QXdWMm8xY3lucjNwVk9reG8xaDZ6UjBPWkdvNEJpc2tlWUJKUHNkCjdjeVhwRGVseDh2b2QvUjc1NUQ5TmcwOWUybFlSQWlmSE9NZXkvbjdYb0JLNWNRUk9KUWtmZmxvYWFBRFZsNlAKdVBSNXJhUWd0c0hIZUUwVy9hTitqVTQrby92VFJ4TnZzdUtERVpXY1pyYnBOOUJRZjVGc09vRTAyV25XRi9uUQpVOXNwVjlmanJVU0I5MFhqTG1GdDRFUW1ucm5JWjRjMU42TnJqQ0szTk1NdFlidFE2VXo2M3FDVzRtZmRoK3FFCi9DcmVHTTR1T1JLMnBjVjYwYlFHOVhTOFVDWXc4bWN1SVFuTlRpc05NaXMwbCtkelV1Ui9qYVJZS1EydEdaMTAKWlVJPQotLS0tLUVORCBDRVJUSUZJQ0FURS0tLS0tCg==
server: https://192.168.64.11:6443
name: kubernetes
contexts:
- context:
cluster: kubernetes
user: system:kube-scheduler
name: system:kube-scheduler@kubernetes
current-context: system:kube-scheduler@kubernetes
kind: Config
preferences: {}
users:
- name: system:kube-scheduler
user:
# scheduler证书
client-certificate-data: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSUREVENDQWZXZ0F3SUJBZ0lJUVg2RExrcWJFZGd3RFFZSktvWklodmNOQVFFTEJRQXdGVEVUTUJFR0ExVUUKQXhNS2EzVmlaWEp1WlhSbGN6QWVGdzB5TWpBNU1UY3hNREl3TURSYUZ3MHlNekE1TVRjeE1ESXdNRFphTUNBeApIakFjQmdOVkJBTVRGWE41YzNSbGJUcHJkV0psTFhOamFHVmtkV3hsY2pDQ0FTSXdEUVlKS29aSWh2Y05BUUVCCkJRQURnZ0VQQURDQ0FRb0NnZ0VCQU5BanA2M3llTkZtRzV6YTRsWDU0dmwycXFScWdFckNPdU01TGhSL2FRS3YKS3BCV01KREZmM1J6Q2hoYk1GMVpHQ0dLYzRkT2ZCMzM3NStqaXY3eHZ4dlpxOU84Ymw4eHl3WDdSOFAyQWgwaQpxc3ZlNVNtUkFUc0ZOa29qTVlXZ0Q2RjhRL29QT3MyWkRJZTJycXJTbzRYRlVFVEtONTBUVFhzb1NqdEt4TlNkCkNKNmZtR1dQcytCSlBRekIzdXN6eFFGbTR4UFR5YytOclI2cXo2UDJucUlEMkpUUXlYUUo5ZkszUkhsMWY5Q00Kc2lVWGFiTlA3QkhIa2NYalEyclRkcll4d3Vsb2xNWSt4ZzhpMDE2MEZMV1ZRaDRSQjlXWmYwc2MxcDdQNzFuQwpKWlFLL0NHeWRhNzUya3BuSTJ4dm1hcEpUU0RxUVF5VWFoYXZVRmcwK1RrQ0F3RUFBYU5XTUZRd0RnWURWUjBQCkFRSC9CQVFEQWdXZ01CTUdBMVVkSlFRTU1Bb0dDQ3NHQVFVRkJ3TUNNQXdHQTFVZEV3RUIvd1FDTUFBd0h3WUQKVlIwakJCZ3dGb0FVSy9kSHkwRk1xYlRha3hndzRPb1FmakVtQkVvd0RRWUpLb1pJaHZjTkFRRUxCUUFEZ2dFQgpBQ3ovaVd0eWo3VWU1elhoUDh4UHBaNGZYdHNuTGxXbzdWRUVnVFA0N2JaL2t2T1BiM2hXZ2RhL0xPc3Z1QWdoCkZHdHhFSWk5UEljYnZXWnhFWkdMOUZnV1dzSk0vK3NmRG84QnlmUGUraXFhWUdxQ2YrWTNvcGlqYVVwYndzaGcKeWVTZDkzSlZzWWVVN2Z6VElTNTJuS0tVaWdvN3dNNUhzbmx0YklOL21lOGZkWW9hWURneVF0bU1hd3BKYjdiNgpFbXM2VEFxVWtqNjV0MXdnUGNRUWtsUGxEVW5qcVhMS1kvd2V2SHpUcmJGOXRCVUlsRE1nZXA4TEZSTzBidWhsClFyeUZRYTJUTEpMdnZHOU1iVjM3ZTd0TjNlSzBDcEY0LzBFRCtUdExBVCs3MmRKRG9rYkpCbkdGbHFhZ0JxazcKd3ZxYkc3TGRESzBDcGFTdDJaSFZncDA9Ci0tLS0tRU5EIENFUlRJRklDQVRFLS0tLS0K
# scheduler私钥
client-key-data: LS0tLS1CRUdJTiBSU0EgUFJJVkFURSBLRVktLS0tLQpNSUlFcFFJQkFBS0NBUUVBMENPbnJmSjQwV1libk5yaVZmbmkrWGFxcEdxQVNzSTY0emt1Rkg5cEFxOHFrRll3CmtNVi9kSE1LR0Zzd1hWa1lJWXB6aDA1OEhmZnZuNk9LL3ZHL0c5bXIwN3h1WHpITEJmdEh3L1lDSFNLcXk5N2wKS1pFQk93VTJTaU14aGFBUG9YeEQrZzg2elprTWg3YXVxdEtqaGNWUVJNbzNuUk5OZXloS08wckUxSjBJbnArWQpaWSt6NEVrOURNSGU2elBGQVdiakU5UEp6NDJ0SHFyUG8vYWVvZ1BZbE5ESmRBbjE4cmRFZVhWLzBJeXlKUmRwCnMwL3NFY2VSeGVORGF0TjJ0akhDNldpVXhqN0dEeUxUWHJRVXRaVkNIaEVIMVpsL1N4elducy92V2NJbGxBcjgKSWJKMXJ2bmFTbWNqYkcrWnFrbE5JT3BCREpScUZxOVFXRFQ1T1FJREFRQUJBb0lCQVFDTFhYUm5LcFh2VC9scApPNzZWWnU2dHJ1RnZtY2d4Um9CN3FNdkwrY3ZzZWpGNzE5cEk5WlR6K2h0bVY1aTR5SEU1OUNTTEV1aFVnTEU0CktSOW11YVFIRitiUHJib1JqNXVyYzZlSDlPOVJadWNKLzBOZVk3TjVPM0l3amdRWXZ5WDRNT2FyUnd0T293NGEKeVIySFQrY2lLUTRvSVdhL2pDOHpLYlVhb21QTkgrdG9XOEFkbjJoa1ZLNCtMdDZkT3F6bHB0SWRNdGRHVTRRLwpvaTF0QzVYV0lvTHN4L1Y4ZldvSXlHZk10U291NlRCa0pSMnBieEV0ZWh5aEg5K2FScEtRMlZmeERzMHBGbFJVClRYMi9rU0t4VThrd24wNUJCdklPZWtNVjhnZUFJUXg2VnJIUTEzNHg5emVSYzZ2ZkRjYTlaZjI3V0ZpZzU0cXQKaUdGMTJJOEJBb0dCQU9Cc3BTUThMUUFYQzNyWTlld1FzNEs4WHN3aC9XdWJodnhadWkvQ2VsVjRvSUdxK1ZDYgpJQ21YcmFIaHJPa3I0ZzN4dXRJdHBPMXAwUUdIK2t6SUxQZDVmdzh1N25CYy8yK1N5QWFjWHJXOWdJSDR1REMvClBrMnZ2VURSWU9EQmRUTmlvMUt5YU5ja1p3RzEzSkdueTd4MzFIekhYU016TnozUU1HQXhBbldKQW9HQkFPMXMKY3lvZlZMQjVXTGdkenU1UWNSb1Ntd3VMbHBFRlRlSVg2dldrZ1NKblFuUXhGRWhGc24yVEVDcGwzUnROMCsvegpiLzhPeFRKZExYaUdwS3NjR1JTRU5hcTMrZFR1aExHYlFHNCt0SnpPRUNPS1Rlb0ZvU1dPdjBNeHUvQThHWHo0CnZXNE1qMWJTeWNTMDBZWThld3BHS0tFUWp0VDNNbmpHSDBUcTFDb3hBb0dCQUxkSW81b3pOd0V5ME9KVVhJdWQKbkMxeVQrMWcrUW12N0E4ZDdJdml4V3dXWnVkZlRkd0J4TU9USjIvazBnVmdIRzhNODJtQmM0ZWRldDlJUVNnQgo5NDlvLzFiVUdsRlQ4aDBhQUJnK0RxOVlnNklpRWJObURLai9sSTFpTWo5OFg0NUd5V0haYVB3RHM4aFcwVHQzCmtWRnJmL01rRXJHVHUxTFZPeHprQ2NFWkFvR0FlMmlnbitkekxOdVdTdlZyaHlJVzkvZHQwZDEzb04vQjhPQi8KeDdqL1NuT2o3aU5JcUp4WnY3MytiQnRRaDQyM3VRU3ZWVU5IS3Z1VjFBMGdjTFNGTU0zYjIyWVBuU2R4bjZQVQpKTG5CUmJReVhWYlpVdWdrTUJKM3hpU0d6TU5nZUQ0T3NMSWttM3VyVnV5cDcvMWw4eHd1cURHa0hIeDFKcVBNCnd4VFF2VEVDZ1lFQXdvKzlRUGdGL0txVVF5akpIemZQS0VEbTZ2R0o3YnUxMTBlM2IvNCtsbmVqTktLc0pCT2QKOWVSKzdkU1ozVUlDaDZIUHNGbzBxMnJRQ2R5OVpZZ3EwV2VTUnZYcTRoZ2xpWlhnTGpaQjVzY3BzenkyTm9zWQp2VHFvYVFHRGFqT2pia0V3RUc5ZjQzZ2VTRTRCeDJ6eWg4YlQ2Wm1waGsxT0lsNFY2ekNmSHBNPQotLS0tLUVORCBSU0EgUFJJVkFURSBLRVktLS0tLQo=
|
对文件的证书进行解密
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
| [root@master kubernetes]# echo LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSUREVENDQWZXZ0F3SUJBZ0lJUVg2RExrcWJFZGd3RFFZSktvWklodmNOQVFFTEJRQXdGVEVUTUJFR0ExVUUKQXhNS2EzVmlaWEp1WlhSbGN6QWVGdzB5TWpBNU1UY3hNREl3TURSYUZ3MHlNekE1TVRjeE1ESXdNRFphTUNBeApIakFjQmdOVkJBTVRGWE41YzNSbGJUcHJkV0psTFhOamFHVmtkV3hsY2pDQ0FTSXdEUVlKS29aSWh2Y05BUUVCCkJRQURnZ0VQQURDQ0FRb0NnZ0VCQU5BanA2M3llTkZtRzV6YTRsWDU0dmwycXFScWdFckNPdU01TGhSL2FRS3YKS3BCV01KREZmM1J6Q2hoYk1GMVpHQ0dLYzRkT2ZCMzM3NStqaXY3eHZ4dlpxOU84Ymw4eHl3WDdSOFAyQWgwaQpxc3ZlNVNtUkFUc0ZOa29qTVlXZ0Q2RjhRL29QT3MyWkRJZTJycXJTbzRYRlVFVEtONTBUVFhzb1NqdEt4TlNkCkNKNmZtR1dQcytCSlBRekIzdXN6eFFGbTR4UFR5YytOclI2cXo2UDJucUlEMkpUUXlYUUo5ZkszUkhsMWY5Q00Kc2lVWGFiTlA3QkhIa2NYalEyclRkcll4d3Vsb2xNWSt4ZzhpMDE2MEZMV1ZRaDRSQjlXWmYwc2MxcDdQNzFuQwpKWlFLL0NHeWRhNzUya3BuSTJ4dm1hcEpUU0RxUVF5VWFoYXZVRmcwK1RrQ0F3RUFBYU5XTUZRd0RnWURWUjBQCkFRSC9CQVFEQWdXZ01CTUdBMVVkSlFRTU1Bb0dDQ3NHQVFVRkJ3TUNNQXdHQTFVZEV3RUIvd1FDTUFBd0h3WUQKVlIwakJCZ3dGb0FVSy9kSHkwRk1xYlRha3hndzRPb1FmakVtQkVvd0RRWUpLb1pJaHZjTkFRRUxCUUFEZ2dFQgpBQ3ovaVd0eWo3VWU1elhoUDh4UHBaNGZYdHNuTGxXbzdWRUVnVFA0N2JaL2t2T1BiM2hXZ2RhL0xPc3Z1QWdoCkZHdHhFSWk5UEljYnZXWnhFWkdMOUZnV1dzSk0vK3NmRG84QnlmUGUraXFhWUdxQ2YrWTNvcGlqYVVwYndzaGcKeWVTZDkzSlZzWWVVN2Z6VElTNTJuS0tVaWdvN3dNNUhzbmx0YklOL21lOGZkWW9hWURneVF0bU1hd3BKYjdiNgpFbXM2VEFxVWtqNjV0MXdnUGNRUWtsUGxEVW5qcVhMS1kvd2V2SHpUcmJGOXRCVUlsRE1nZXA4TEZSTzBidWhsClFyeUZRYTJUTEpMdnZHOU1iVjM3ZTd0TjNlSzBDcEY0LzBFRCtUdExBVCs3MmRKRG9rYkpCbkdGbHFhZ0JxazcKd3ZxYkc3TGRESzBDcGFTdDJaSFZncDA9Ci0tLS0tRU5EIENFUlRJRklDQVRFLS0tLS0K | base64 -d > scheduler.crt
[root@master kubernetes]# cat scheduler.crt
-----BEGIN CERTIFICATE-----
MIIDDTCCAfWgAwIBAgIIQX6DLkqbEdgwDQYJKoZIhvcNAQELBQAwFTETMBEGA1UE
AxMKa3ViZXJuZXRlczAeFw0yMjA5MTcxMDIwMDRaFw0yMzA5MTcxMDIwMDZaMCAx
HjAcBgNVBAMTFXN5c3RlbTprdWJlLXNjaGVkdWxlcjCCASIwDQYJKoZIhvcNAQEB
BQADggEPADCCAQoCggEBANAjp63yeNFmG5za4lX54vl2qqRqgErCOuM5LhR/aQKv
KpBWMJDFf3RzChhbMF1ZGCGKc4dOfB3375+jiv7xvxvZq9O8bl8xywX7R8P2Ah0i
qsve5SmRATsFNkojMYWgD6F8Q/oPOs2ZDIe2rqrSo4XFUETKN50TTXsoSjtKxNSd
CJ6fmGWPs+BJPQzB3uszxQFm4xPTyc+NrR6qz6P2nqID2JTQyXQJ9fK3RHl1f9CM
siUXabNP7BHHkcXjQ2rTdrYxwulolMY+xg8i0160FLWVQh4RB9WZf0sc1p7P71nC
JZQK/CGyda752kpnI2xvmapJTSDqQQyUahavUFg0+TkCAwEAAaNWMFQwDgYDVR0P
AQH/BAQDAgWgMBMGA1UdJQQMMAoGCCsGAQUFBwMCMAwGA1UdEwEB/wQCMAAwHwYD
VR0jBBgwFoAUK/dHy0FMqbTakxgw4OoQfjEmBEowDQYJKoZIhvcNAQELBQADggEB
ACz/iWtyj7Ue5zXhP8xPpZ4fXtsnLlWo7VEEgTP47bZ/kvOPb3hWgda/LOsvuAgh
FGtxEIi9PIcbvWZxEZGL9FgWWsJM/+sfDo8ByfPe+iqaYGqCf+Y3opijaUpbwshg
yeSd93JVsYeU7fzTIS52nKKUigo7wM5HsnltbIN/me8fdYoaYDgyQtmMawpJb7b6
Ems6TAqUkj65t1wgPcQQklPlDUnjqXLKY/wevHzTrbF9tBUIlDMgep8LFRO0buhl
QryFQa2TLJLvvG9MbV37e7tN3eK0CpF4/0ED+TtLAT+72dJDokbJBnGFlqagBqk7
wvqbG7LdDK0CpaSt2ZHVgp0=
-----END CERTIFICATE-----
[root@master kubernetes]# openssl x509 -in scheduler.crt -noout -text
Certificate:
Data:
Version: 3 (0x2)
Serial Number: 4719353694374269400 (0x417e832e4a9b11d8)
Signature Algorithm: sha256WithRSAEncryption
Issuer: CN = kubernetes
Validity
Not Before: Sep 17 10:20:04 2022 GMT
Not After : Sep 17 10:20:06 2023 GMT
Subject: CN = system:kube-scheduler
Subject Public Key Info:
Public Key Algorithm: rsaEncryption
RSA Public-Key: (2048 bit)
Modulus:
00:d0:23:a7:ad:f2:78:d1:66:1b:9c:da:e2:55:f9:
e2:f9:76:aa:a4:6a:80:4a:c2:3a:e3:39:2e:14:7f:
69:02:af:2a:90:56:30:90:c5:7f:74:73:0a:18:5b:
30:5d:59:18:21:8a:73:87:4e:7c:1d:f7:ef:9f:a3:
8a:fe:f1:bf:1b:d9:ab:d3:bc:6e:5f:31:cb:05:fb:
47:c3:f6:02:1d:22:aa:cb:de:e5:29:91:01:3b:05:
36:4a:23:31:85:a0:0f:a1:7c:43:fa:0f:3a:cd:99:
0c:87:b6:ae:aa:d2:a3:85:c5:50:44:ca:37:9d:13:
4d:7b:28:4a:3b:4a:c4:d4:9d:08:9e:9f:98:65:8f:
b3:e0:49:3d:0c:c1:de:eb:33:c5:01:66:e3:13:d3:
c9:cf:8d:ad:1e:aa:cf:a3:f6:9e:a2:03:d8:94:d0:
c9:74:09:f5:f2:b7:44:79:75:7f:d0:8c:b2:25:17:
69:b3:4f:ec:11:c7:91:c5:e3:43:6a:d3:76:b6:31:
c2:e9:68:94:c6:3e:c6:0f:22:d3:5e:b4:14:b5:95:
42:1e:11:07:d5:99:7f:4b:1c:d6:9e:cf:ef:59:c2:
25:94:0a:fc:21:b2:75:ae:f9:da:4a:67:23:6c:6f:
99:aa:49:4d:20:ea:41:0c:94:6a:16:af:50:58:34:
f9:39
Exponent: 65537 (0x10001)
X509v3 extensions:
X509v3 Key Usage: critical
Digital Signature, Key Encipherment
X509v3 Extended Key Usage:
TLS Web Client Authentication
X509v3 Basic Constraints: critical
CA:FALSE
X509v3 Authority Key Identifier:
keyid:2B:F7:47:CB:41:4C:A9:B4:DA:93:18:30:E0:EA:10:7E:31:26:04:4A
Signature Algorithm: sha256WithRSAEncryption
2c:ff:89:6b:72:8f:b5:1e:e7:35:e1:3f:cc:4f:a5:9e:1f:5e:
db:27:2e:55:a8:ed:51:04:81:33:f8:ed:b6:7f:92:f3:8f:6f:
78:56:81:d6:bf:2c:eb:2f:b8:08:21:14:6b:71:10:88:bd:3c:
87:1b:bd:66:71:11:91:8b:f4:58:16:5a:c2:4c:ff:eb:1f:0e:
8f:01:c9:f3:de:fa:2a:9a:60:6a:82:7f:e6:37:a2:98:a3:69:
4a:5b:c2:c8:60:c9:e4:9d:f7:72:55:b1:87:94:ed:fc:d3:21:
2e:76:9c:a2:94:8a:0a:3b:c0:ce:47:b2:79:6d:6c:83:7f:99:
ef:1f:75:8a:1a:60:38:32:42:d9:8c:6b:0a:49:6f:b6:fa:12:
6b:3a:4c:0a:94:92:3e:b9:b7:5c:20:3d:c4:10:92:53:e5:0d:
49:e3:a9:72:ca:63:fc:1e:bc:7c:d3:ad:b1:7d:b4:15:08:94:
33:20:7a:9f:0b:15:13:b4:6e:e8:65:42:bc:85:41:ad:93:2c:
92:ef:bc:6f:4c:6d:5d:fb:7b:bb:4d:dd:e2:b4:0a:91:78:ff:
41:03:f9:3b:4b:01:3f:bb:d9:d2:43:a2:46:c9:06:71:85:96:
a6:a0:06:a9:3b:c2:fa:9b:1b:b2:dd:0c:ad:02:a5:a4:ad:d9:
91:d5:82:9d
|
scheduler证书创建
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
| [root@master etcd]# cat xiaowangc.cnf
[ v3_req ]
keyUsage = critical, digitalSignature, keyEncipherment
extendedKeyUsage = clientAuth
basicConstraints = critical, CA:FALSE
authorityKeyIdentifier = keyid,issuer
================================================================
[root@master pki]# openssl req -new -newkey rsa:2048 -keyout scheduler.key -out scheduler.csr -nodes -subj '/CN=system:kube-scheduler'
Generating a RSA private key
..................+++++
......+++++
writing new private key to 'scheduler.key'
-----
[root@master pki]# openssl x509 -req -sha256 -days 36500 -extfile xiaowangc.cnf -extensions v3_req -in scheduler.csr -CA ca.crt -CAkey ca.pem -out scheduler.crt -CAcreateserial
Signature ok
subject=CN = system:kube-scheduler
Getting CA Private Key
[root@master pki]# openssl x509 -in controller-manager.crt -noout -text
Certificate:
Data:
Version: 3 (0x2)
Serial Number:
19:39:ff:4c:dd:c2:d6:76:f3:cc:7e:f9:b8:8c:fb:4e:b5:17:5b:21
Signature Algorithm: sha256WithRSAEncryption
Issuer: CN = kubernetes
Validity
Not Before: Sep 17 21:55:00 2022 GMT
Not After : Aug 24 21:55:00 2122 GMT
Subject: CN = system:kube-controller-manager
Subject Public Key Info:
Public Key Algorithm: rsaEncryption
RSA Public-Key: (2048 bit)
Modulus:
00:a2:08:62:a6:6e:21:0e:1a:e2:73:1a:9b:d7:8b:
2c:c0:fe:72:85:77:a3:ca:62:80:5f:bf:f3:6c:14:
05:c2:1d:30:68:d7:c9:b0:d1:7f:cf:78:f5:41:8f:
a1:60:be:26:58:43:74:c4:af:45:c7:e2:1e:f8:df:
53:87:b4:46:20:ab:2e:d7:13:bd:35:f2:55:5b:bd:
3a:16:f4:d6:98:c5:a4:7a:57:56:40:ba:98:28:e0:
d6:78:11:bd:b5:58:18:8c:4c:ea:8a:88:3e:1b:9a:
8f:79:39:32:05:26:61:e1:5d:9c:f1:bb:91:49:8c:
39:76:e1:ac:43:a3:dd:5b:82:8b:72:ae:52:83:50:
12:20:10:13:3b:66:89:38:9b:de:4a:42:29:81:8a:
43:79:31:14:5c:cd:c7:bd:f0:ed:89:99:09:94:d0:
e6:43:18:3f:18:14:79:fc:be:85:f7:13:e9:a3:f8:
45:67:60:5a:e3:e6:a9:72:79:c4:ca:90:bb:05:89:
d3:52:13:f7:6d:b1:10:b7:8a:5a:3e:56:cd:d2:b3:
46:bd:fb:10:d3:ba:a0:05:ea:5d:22:c0:40:4e:ed:
95:15:7e:80:5b:9a:e7:89:bf:aa:18:1f:b6:ca:1f:
c1:a1:79:2c:4f:2c:c6:62:cd:5d:93:35:c7:bd:b6:
c8:43
Exponent: 65537 (0x10001)
X509v3 extensions:
X509v3 Key Usage: critical
Digital Signature, Key Encipherment
X509v3 Extended Key Usage:
TLS Web Client Authentication
X509v3 Basic Constraints: critical
CA:FALSE
X509v3 Authority Key Identifier:
keyid:33:AC:40:D4:C2:3E:E9:64:2B:F5:00:C7:EB:E9:78:45:62:DD:3E:15
Signature Algorithm: sha256WithRSAEncryption
31:91:9f:f1:f1:99:6c:81:cb:65:8c:df:1f:db:0d:61:b2:b7:
fb:34:51:7a:61:17:09:42:8e:19:a4:32:2b:de:23:d3:96:32:
9f:8f:9f:96:0a:65:1f:ae:3b:cc:db:e6:b6:20:99:c9:5e:58:
c6:da:ea:e3:9a:64:d2:ee:6c:37:f7:ff:66:1d:87:6e:e5:fc:
fd:87:db:8e:e4:af:f3:2a:e0:46:db:a7:59:94:74:80:ce:07:
1e:e6:a5:a4:72:26:c2:de:2b:e1:6d:5b:eb:c0:70:0c:3e:ca:
39:fe:60:ad:c5:44:7c:fe:6f:ae:b9:5d:08:5b:02:05:88:29:
d4:24:8c:1a:1b:88:fe:58:4a:d5:ee:6f:4b:37:ac:e0:77:23:
8d:5a:71:cf:f4:f8:5d:b4:36:df:29:aa:11:42:35:0b:39:b7:
74:e4:81:c6:f3:29:d6:8f:75:3b:50:53:59:43:1c:75:6e:14:
5e:64:eb:36:1c:1b:f4:6b:b3:9b:c3:42:98:60:eb:2e:ea:ed:
f3:65:3a:15:9e:7a:c6:99:99:01:aa:1e:08:73:10:3f:c9:06:
b3:45:b0:b5:3f:db:08:18:60:bd:3d:5d:fa:29:48:ba:21:34:
f8:16:51:b1:3e:89:2c:27:a4:55:6d:5f:a4:d1:e7:cd:2d:bd:
74:eb:17:e7
|
admin证书详细信息
通常当我们通过kubeadm初始化集群成功之后会得到提示信息，也就是为KUBECONFIG配置环境变量，而这个环境变量指向的文件即是admin.conf，此文件通常用于连接kubernetes集群，里面包含集群地址，CA证书，client证书，client私钥等信息
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
| [root@master kubernetes]# cat admin.conf
apiVersion: v1
clusters:
- cluster:
certificate-authority-data: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSUMvakNDQWVhZ0F3SUJBZ0lCQURBTkJna3Foa2lHOXcwQkFRc0ZBREFWTVJNd0VRWURWUVFERXdwcmRXSmwKY201bGRHVnpNQjRYRFRJeU1Ea3hOekV3TWpBd05Gb1hEVE15TURreE5ERXdNakF3TkZvd0ZURVRNQkVHQTFVRQpBeE1LYTNWaVpYSnVaWFJsY3pDQ0FTSXdEUVlKS29aSWh2Y05BUUVCQlFBRGdnRVBBRENDQVFvQ2dnRUJBS1NRCkVScnRRUHBPNzE0VGVueEQ5ZUZ0d25tNFFWWG56L1liUE5MNE5VdXdmcUNPTVg1MGJNTWxiblkya3poZmlSSmQKSWxVK3o4RVYrZGJ6WDJUd0JUWGRxN1pOeDFxdmx2bFpuZDlUY21Zd3l6eUpCRUROVjdmMG9lYWxUSUIwMGVRYQovYjFWeStPL1I0NUhuY3VXUDhMc2lwV3J5U3I1WjRpcnkvVmIrbnB4T2xVeXpTL3BtdVhBTmdGUGVpL0w3MUlpCkxha0NlNmZNRCtMMHpGektCdGVVeVpuWWZMOWxyVm0xeG1QUjVFdkdZN2NaNTl3YmtqbW94VGE1bjdVTzR6SjgKZndiak5oNHVLVzdqOHpvajVTWTJBMEZIZ0RSbnY5NlFxVk5SSkIraGMrRDBrTE1EdmRHcUM0QVpaUzJDbUNLUQpBTUZGUUlGSDIyMCtBRngvNGM4Q0F3RUFBYU5aTUZjd0RnWURWUjBQQVFIL0JBUURBZ0trTUE4R0ExVWRFd0VCCi93UUZNQU1CQWY4d0hRWURWUjBPQkJZRUZDdjNSOHRCVEttMDJwTVlNT0RxRUg0eEpnUktNQlVHQTFVZEVRUU8KTUF5Q0NtdDFZbVZ5Ym1WMFpYTXdEUVlKS29aSWh2Y05BUUVMQlFBRGdnRUJBR3hwamdwcjVOZmxxMkJBZC9vdQpTQW14WDIyVi9XTmJZZDNDYVA2dVAwY2F3QXdWMm8xY3lucjNwVk9reG8xaDZ6UjBPWkdvNEJpc2tlWUJKUHNkCjdjeVhwRGVseDh2b2QvUjc1NUQ5TmcwOWUybFlSQWlmSE9NZXkvbjdYb0JLNWNRUk9KUWtmZmxvYWFBRFZsNlAKdVBSNXJhUWd0c0hIZUUwVy9hTitqVTQrby92VFJ4TnZzdUtERVpXY1pyYnBOOUJRZjVGc09vRTAyV25XRi9uUQpVOXNwVjlmanJVU0I5MFhqTG1GdDRFUW1ucm5JWjRjMU42TnJqQ0szTk1NdFlidFE2VXo2M3FDVzRtZmRoK3FFCi9DcmVHTTR1T1JLMnBjVjYwYlFHOVhTOFVDWXc4bWN1SVFuTlRpc05NaXMwbCtkelV1Ui9qYVJZS1EydEdaMTAKWlVJPQotLS0tLUVORCBDRVJUSUZJQ0FURS0tLS0tCg==
server: https://192.168.64.11:6443
name: kubernetes
contexts:
- context:
cluster: kubernetes
user: kubernetes-admin
name: kubernetes-admin@kubernetes
current-context: kubernetes-admin@kubernetes
kind: Config
preferences: {}
users:
- name: kubernetes-admin
user:
client-certificate-data: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSURJVENDQWdtZ0F3SUJBZ0lJS2NpSGVBWHNnNHd3RFFZSktvWklodmNOQVFFTEJRQXdGVEVUTUJFR0ExVUUKQXhNS2EzVmlaWEp1WlhSbGN6QWVGdzB5TWpBNU1UY3hNREl3TURSYUZ3MHlNekE1TVRjeE1ESXdNRFZhTURReApGekFWQmdOVkJBb1REbk41YzNSbGJUcHRZWE4wWlhKek1Sa3dGd1lEVlFRREV4QnJkV0psY201bGRHVnpMV0ZrCmJXbHVNSUlCSWpBTkJna3Foa2lHOXcwQkFRRUZBQU9DQVE4QU1JSUJDZ0tDQVFFQTNmV0NHbFo2cWc1bEtOWXYKMXdyb0FpZWgwbXFiMFpibGc0eVVEOXJQQ3FSd3Z4Q29oUkJvWnkxZFdCL2NLZ0IwR1pxQjUvZzhPNE8rMG5XKwpaVTZjU0U2S0txVi9zYW1sMGhiaktPZno3R2FrYldvK2dzVFMvSzlCbk8zMVlvRUYwNTZGcUF3T3FlV2RWb3loCllPZWRQV1JVZWdtVU5GVkxYMWJhWkdsblZCYkNFelRLV081b3VyeWxUbEpqcHFrZHJkZDdtcTNzRU45M2VyZ1IKR1l4YnZSOXdRNk1PQjY5MWt0ZWw2WmowU202UDNNK0Jxb3RxNWZFbGdwd29TWHAwNms3Rzd4SElPayt0K3VlYwp2eHR0Qlp3TExqTzZDUmNSeS9UREE0U1NyWERDdjB6UGpWOEJxeUhOY29SYkVDNVFVNm9COFdOYmhQN0ZnRWdrCnBWdWtSUUlEQVFBQm8xWXdWREFPQmdOVkhROEJBZjhFQkFNQ0JhQXdFd1lEVlIwbEJBd3dDZ1lJS3dZQkJRVUgKQXdJd0RBWURWUjBUQVFIL0JBSXdBREFmQmdOVkhTTUVHREFXZ0JRcjkwZkxRVXlwdE5xVEdERGc2aEIrTVNZRQpTakFOQmdrcWhraUc5dzBCQVFzRkFBT0NBUUVBSWVqM1VLMzhpNlBtME5HeXRQRUNqMTc4bnRMaTFnQ3BTOVlsCkJRL29jUmtWSnpwVUFoVUxtV3NVRzNTSU1JeVEzUUpmQytnUXdnS1A0SWhGSksweFg0T3RNNld5aE55MWZFRmEKM3l3aXRHQ3pqN2NwL1BNc3U2NUJnTm9pRVB5Mkhjc3dGODJna2xaVXJidVdrYm9yYXNrVHV0TkptbkgwSEpzZwp3UDJYaVhOaVYwRVFXVHErZVJPdWIyaUl6L3Rlb1NHYStPUHFrWTMwN2JpTk9xTm1DeldlWGczV0VYaG9IZ2NQCmJ3L1hPcHoyZmlUWHV2NVM1c0MzRjZNR1RGcmM0d0RZK0szdTlBZVpleXpySUVvdXRCMitPS3ROZkFSb0dtNncKeTZIQ2pIazBVSjgzclVwYXVXMlBwVHFQYjZDT2xLcW1JZXJmNWhrcFVHWjEzNHBHSlE9PQotLS0tLUVORCBDRVJUSUZJQ0FURS0tLS0tCg==
client-key-data: LS0tLS1CRUdJTiBSU0EgUFJJVkFURSBLRVktLS0tLQpNSUlFb3dJQkFBS0NBUUVBM2ZXQ0dsWjZxZzVsS05ZdjF3cm9BaWVoMG1xYjBaYmxnNHlVRDlyUENxUnd2eENvCmhSQm9aeTFkV0IvY0tnQjBHWnFCNS9nOE80TyswblcrWlU2Y1NFNktLcVYvc2FtbDBoYmpLT2Z6N0dha2JXbysKZ3NUUy9LOUJuTzMxWW9FRjA1NkZxQXdPcWVXZFZveWhZT2VkUFdSVWVnbVVORlZMWDFiYVpHbG5WQmJDRXpUSwpXTzVvdXJ5bFRsSmpwcWtkcmRkN21xM3NFTjkzZXJnUkdZeGJ2Ujl3UTZNT0I2OTFrdGVsNlpqMFNtNlAzTStCCnFvdHE1ZkVsZ3B3b1NYcDA2azdHN3hISU9rK3QrdWVjdnh0dEJad0xMak82Q1JjUnkvVERBNFNTclhEQ3YwelAKalY4QnF5SE5jb1JiRUM1UVU2b0I4V05iaFA3RmdFZ2twVnVrUlFJREFRQUJBb0lCQUdHdGpsRGE1K1o0cVVuOApZRmRKWkdxMldEK0tUUUpDWHNTeWsrSWFUKzBHQ3R2Nmo3N25ScHJKV3YvU0hZaWFaSDEwQW1FOFcvMXc4QVFjCmJ1cVVXckJ6WjloMnRxaFAyVHFJZWZWaGhuWHRnY1RvOFpPSTNMVDR4MjR4UmtEUU9PazFKT3FjUzhPMjJiUGgKOVk3NHZyanFzMFoxZXJSQktRZE82Sk14MDVnc0RjNkEvdlJwdll4YjhCajlBZmtsT1FmL050NmRDT21jcCt3OQphRGUvaU9PYTEwdW5qYUxUQkR6L0g5N0FHYmtwakhQRmtQUlZzeGR5S1lEMStoMlNJQjhMTmRId2dpb1NZQVJZCnppakE0NHM5K01GODNrVDJkRlo5ay9jdDcvYUErOXdJYUpYNUY1MGpObm0wTVdnZFd2ZnE5WkdVK2RQcGhNQnMKcmFYeVFrRUNnWUVBNVpsY05rSlZjNXVySU9ONlFWUkl4MTdQYmhsTUpmcm51YWQ5RFFxWFEySVdUSlRxK25legpDbmhGR3gvVXFIUW9KVzRGZkNYblRMQmVVQkd6dEhIcnFITzIxU0J6UUtkWDZuOXRiNUVxSWFTN0h3bWRjSTJOClQ0WkxYN0ZtQ2x0WmswTFFXNlA5R0Q3SkdHV3Z1MzIvSDY5Um9vbSt2aTk1RUNLUmFyZ3JURkVDZ1lFQTkzdEEKRGNLanhPVlM5M2pWRW5Wa01sM241M2FiWk12ZEhldWNWTDMvMGlTcGhETE8wdHd1enUwUGg2TmdrNEtxejBGWgorRjFKYnpadzhkWElTTWRKRmx0SFFyakJEcXBlcGIvVnVMNmtqbjJZK3YwaXJRN1F1eENwalhWZ2FTaytGajMzCjQ2dE9DRjBpVi9jeGRZWEFsYUl3WFBOQXRXOGdrUWs4RXRXYS83VUNnWUJPa080Ryt5ZjJpWHhEb3RQQTZ6Q0UKV0tNdWo2V0pFWlNkNlB4WHJCb2F5c1BLck9MRGxwWkRyT2dvNGZtSk0wWlJtSlp6NXh5QkY1RU9ZU0JYVE94UgpGbGVvRXBTZHVTWFNib3hxTXdoeHZzYnhWZjd6OXR3MkxFUTZtSi9NUjNvZGRDMk1UazliTHBEdHNrNHlJRk40CmFpdkxMTXVDbFFnZVIxWHZhTm9ZSVFLQmdRQ0JjOFlBcktTUHRNa2VTK1ZnbjJsRzgxbi8rRW0yZ3ZEcDJybk8KbGdnLyt3OTA2RUxKaDRVd2xrNCtUQmFUY3BFNGtsMm1qZDJBd0FCNmI3SXhaNVR5amRLTHN5ckJLaHNTSm5OOApETFQxRi91eXBrRENOM0sxdHpTSm16RlFNTk9hUE5YekVFTmtHcHVCV2Z0VUZ4K3k1Y0RZamlGMkJtZ0psY1FICnNoWSsxUUtCZ0Y0bFYydERUYUtDcEtIS2hXQTRKZm82WVkzL0k3MGgwdFFDTW8rOEZpZmlRdk9tdkV1MVNzOEUKQldPa2FmQmJvUll2akVCV3FuTllINlVIN3BwdTNMTk9HRjdISUZWZXBNNFdSejNyQW9Ybzk0VjIyUjF1K3MxYwo1aGFwZkRuOW1kTEZyaVpQYXlRVmVndW1TWGo3OHpXRDZOKzhhQVFqSDZJREFCaGUwT3BRCi0tLS0tRU5EIFJTQSBQUklWQVRFIEtFWS0tLS0tCg==
|
对证书部分进行解密
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
| [root@master kubernetes]# echo LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSURJVENDQWdtZ0F3SUJBZ0lJS2NpSGVBWHNnNHd3RFFZSktvWklodmNOQVFFTEJRQXdGVEVUTUJFR0ExVUUKQXhNS2EzVmlaWEp1WlhSbGN6QWVGdzB5TWpBNU1UY3hNREl3TURSYUZ3MHlNekE1TVRjeE1ESXdNRFZhTURReApGekFWQmdOVkJBb1REbk41YzNSbGJUcHRZWE4wWlhKek1Sa3dGd1lEVlFRREV4QnJkV0psY201bGRHVnpMV0ZrCmJXbHVNSUlCSWpBTkJna3Foa2lHOXcwQkFRRUZBQU9DQVE4QU1JSUJDZ0tDQVFFQTNmV0NHbFo2cWc1bEtOWXYKMXdyb0FpZWgwbXFiMFpibGc0eVVEOXJQQ3FSd3Z4Q29oUkJvWnkxZFdCL2NLZ0IwR1pxQjUvZzhPNE8rMG5XKwpaVTZjU0U2S0txVi9zYW1sMGhiaktPZno3R2FrYldvK2dzVFMvSzlCbk8zMVlvRUYwNTZGcUF3T3FlV2RWb3loCllPZWRQV1JVZWdtVU5GVkxYMWJhWkdsblZCYkNFelRLV081b3VyeWxUbEpqcHFrZHJkZDdtcTNzRU45M2VyZ1IKR1l4YnZSOXdRNk1PQjY5MWt0ZWw2WmowU202UDNNK0Jxb3RxNWZFbGdwd29TWHAwNms3Rzd4SElPayt0K3VlYwp2eHR0Qlp3TExqTzZDUmNSeS9UREE0U1NyWERDdjB6UGpWOEJxeUhOY29SYkVDNVFVNm9COFdOYmhQN0ZnRWdrCnBWdWtSUUlEQVFBQm8xWXdWREFPQmdOVkhROEJBZjhFQkFNQ0JhQXdFd1lEVlIwbEJBd3dDZ1lJS3dZQkJRVUgKQXdJd0RBWURWUjBUQVFIL0JBSXdBREFmQmdOVkhTTUVHREFXZ0JRcjkwZkxRVXlwdE5xVEdERGc2aEIrTVNZRQpTakFOQmdrcWhraUc5dzBCQVFzRkFBT0NBUUVBSWVqM1VLMzhpNlBtME5HeXRQRUNqMTc4bnRMaTFnQ3BTOVlsCkJRL29jUmtWSnpwVUFoVUxtV3NVRzNTSU1JeVEzUUpmQytnUXdnS1A0SWhGSksweFg0T3RNNld5aE55MWZFRmEKM3l3aXRHQ3pqN2NwL1BNc3U2NUJnTm9pRVB5Mkhjc3dGODJna2xaVXJidVdrYm9yYXNrVHV0TkptbkgwSEpzZwp3UDJYaVhOaVYwRVFXVHErZVJPdWIyaUl6L3Rlb1NHYStPUHFrWTMwN2JpTk9xTm1DeldlWGczV0VYaG9IZ2NQCmJ3L1hPcHoyZmlUWHV2NVM1c0MzRjZNR1RGcmM0d0RZK0szdTlBZVpleXpySUVvdXRCMitPS3ROZkFSb0dtNncKeTZIQ2pIazBVSjgzclVwYXVXMlBwVHFQYjZDT2xLcW1JZXJmNWhrcFVHWjEzNHBHSlE9PQotLS0tLUVORCBDRVJUSUZJQ0FURS0tLS0tCg== | base64 -d > admin.crt
[root@master kubernetes]# cat admin.crt
-----BEGIN CERTIFICATE-----
MIIDITCCAgmgAwIBAgIIKciHeAXsg4wwDQYJKoZIhvcNAQELBQAwFTETMBEGA1UE
AxMKa3ViZXJuZXRlczAeFw0yMjA5MTcxMDIwMDRaFw0yMzA5MTcxMDIwMDVaMDQx
FzAVBgNVBAoTDnN5c3RlbTptYXN0ZXJzMRkwFwYDVQQDExBrdWJlcm5ldGVzLWFk
bWluMIIBIjANBgkqhkiG9w0BAQEFAAOCAQ8AMIIBCgKCAQEA3fWCGlZ6qg5lKNYv
1wroAieh0mqb0Zblg4yUD9rPCqRwvxCohRBoZy1dWB/cKgB0GZqB5/g8O4O+0nW+
ZU6cSE6KKqV/saml0hbjKOfz7GakbWo+gsTS/K9BnO31YoEF056FqAwOqeWdVoyh
YOedPWRUegmUNFVLX1baZGlnVBbCEzTKWO5ourylTlJjpqkdrdd7mq3sEN93ergR
GYxbvR9wQ6MOB691ktel6Zj0Sm6P3M+Bqotq5fElgpwoSXp06k7G7xHIOk+t+uec
vxttBZwLLjO6CRcRy/TDA4SSrXDCv0zPjV8BqyHNcoRbEC5QU6oB8WNbhP7FgEgk
pVukRQIDAQABo1YwVDAOBgNVHQ8BAf8EBAMCBaAwEwYDVR0lBAwwCgYIKwYBBQUH
AwIwDAYDVR0TAQH/BAIwADAfBgNVHSMEGDAWgBQr90fLQUyptNqTGDDg6hB+MSYE
SjANBgkqhkiG9w0BAQsFAAOCAQEAIej3UK38i6Pm0NGytPECj178ntLi1gCpS9Yl
BQ/ocRkVJzpUAhULmWsUG3SIMIyQ3QJfC+gQwgKP4IhFJK0xX4OtM6WyhNy1fEFa
3ywitGCzj7cp/PMsu65BgNoiEPy2HcswF82gklZUrbuWkboraskTutNJmnH0HJsg
wP2XiXNiV0EQWTq+eROub2iIz/teoSGa+OPqkY307biNOqNmCzWeXg3WEXhoHgcP
bw/XOpz2fiTXuv5S5sC3F6MGTFrc4wDY+K3u9AeZeyzrIEoutB2+OKtNfARoGm6w
y6HCjHk0UJ83rUpauW2PpTqPb6COlKqmIerf5hkpUGZ134pGJQ==
-----END CERTIFICATE-----
[root@master kubernetes]# openssl x509 -in admin.crt -noout -text
Certificate:
Data:
Version: 3 (0x2)
Serial Number: 3010805300462388108 (0x29c8877805ec838c)
Signature Algorithm: sha256WithRSAEncryption
Issuer: CN = kubernetes
Validity
Not Before: Sep 17 10:20:04 2022 GMT
Not After : Sep 17 10:20:05 2023 GMT
Subject: O = system:masters, CN = kubernetes-admin
Subject Public Key Info:
Public Key Algorithm: rsaEncryption
RSA Public-Key: (2048 bit)
Modulus:
00:dd:f5:82:1a:56:7a:aa:0e:65:28:d6:2f:d7:0a:
e8:02:27:a1:d2:6a:9b:d1:96:e5:83:8c:94:0f:da:
cf:0a:a4:70:bf:10:a8:85:10:68:67:2d:5d:58:1f:
dc:2a:00:74:19:9a:81:e7:f8:3c:3b:83:be:d2:75:
be:65:4e:9c:48:4e:8a:2a:a5:7f:b1:a9:a5:d2:16:
e3:28:e7:f3:ec:66:a4:6d:6a:3e:82:c4:d2:fc:af:
41:9c:ed:f5:62:81:05:d3:9e:85:a8:0c:0e:a9:e5:
9d:56:8c:a1:60:e7:9d:3d:64:54:7a:09:94:34:55:
4b:5f:56:da:64:69:67:54:16:c2:13:34:ca:58:ee:
68:ba:bc:a5:4e:52:63:a6:a9:1d:ad:d7:7b:9a:ad:
ec:10:df:77:7a:b8:11:19:8c:5b:bd:1f:70:43:a3:
0e:07:af:75:92:d7:a5:e9:98:f4:4a:6e:8f:dc:cf:
81:aa:8b:6a:e5:f1:25:82:9c:28:49:7a:74:ea:4e:
c6:ef:11:c8:3a:4f:ad:fa:e7:9c:bf:1b:6d:05:9c:
0b:2e:33:ba:09:17:11:cb:f4:c3:03:84:92:ad:70:
c2:bf:4c:cf:8d:5f:01:ab:21:cd:72:84:5b:10:2e:
50:53:aa:01:f1:63:5b:84:fe:c5:80:48:24:a5:5b:
a4:45
Exponent: 65537 (0x10001)
X509v3 extensions:
X509v3 Key Usage: critical
Digital Signature, Key Encipherment
X509v3 Extended Key Usage:
TLS Web Client Authentication
X509v3 Basic Constraints: critical
CA:FALSE
X509v3 Authority Key Identifier:
keyid:2B:F7:47:CB:41:4C:A9:B4:DA:93:18:30:E0:EA:10:7E:31:26:04:4A
Signature Algorithm: sha256WithRSAEncryption
21:e8:f7:50:ad:fc:8b:a3:e6:d0:d1:b2:b4:f1:02:8f:5e:fc:
9e:d2:e2:d6:00:a9:4b:d6:25:05:0f:e8:71:19:15:27:3a:54:
02:15:0b:99:6b:14:1b:74:88:30:8c:90:dd:02:5f:0b:e8:10:
c2:02:8f:e0:88:45:24:ad:31:5f:83:ad:33:a5:b2:84:dc:b5:
7c:41:5a:df:2c:22:b4:60:b3:8f:b7:29:fc:f3:2c:bb:ae:41:
80:da:22:10:fc:b6:1d:cb:30:17:cd:a0:92:56:54:ad:bb:96:
91:ba:2b:6a:c9:13:ba:d3:49:9a:71:f4:1c:9b:20:c0:fd:97:
89:73:62:57:41:10:59:3a:be:79:13:ae:6f:68:88:cf:fb:5e:
a1:21:9a:f8:e3:ea:91:8d:f4:ed:b8:8d:3a:a3:66:0b:35:9e:
5e:0d:d6:11:78:68:1e:07:0f:6f:0f:d7:3a:9c:f6:7e:24:d7:
ba:fe:52:e6:c0:b7:17:a3:06:4c:5a:dc:e3:00:d8:f8:ad:ee:
f4:07:99:7b:2c:eb:20:4a:2e:b4:1d:be:38:ab:4d:7c:04:68:
1a:6e:b0:cb:a1:c2:8c:79:34:50:9f:37:ad:4a:5a:b9:6d:8f:
a5:3a:8f:6f:a0:8e:94:aa:a6:21:ea:df:e6:19:29:50:66:75:
df:8a:46:25
|
admin证书创建
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
| [root@master etcd]# cat xiaowangc.cnf
[ v3_req ]
keyUsage = critical, digitalSignature, keyEncipherment
extendedKeyUsage = clientAuth
basicConstraints = critical, CA:FALSE
authorityKeyIdentifier = keyid,issuer
================================================================
[root@master pki]# openssl req -new -newkey rsa:2048 -keyout admin.key -out admin.csr -nodes -subj '/CN=kubernetes-admin/O=system:masters'
[root@master pki]# openssl x509 -req -sha256 -days 36500 -extfile xiaowangc.cnf -extensions v3_req -in admin.csr -CA ca.crt -CAkey ca.pem -out admin.crt -CAcreateserial
Signature ok
subject=CN = kubernetes-admin, O = system:masters
Getting CA Private Key
[root@master pki]# openssl x509 -in admin.crt -noout -text
Certificate:
Data:
Version: 3 (0x2)
Serial Number:
19:39:ff:4c:dd:c2:d6:76:f3:cc:7e:f9:b8:8c:fb:4e:b5:17:5b:23
Signature Algorithm: sha256WithRSAEncryption
Issuer: CN = kubernetes
Validity
Not Before: Sep 17 22:28:12 2022 GMT
Not After : Aug 24 22:28:12 2122 GMT
Subject: CN = kubernetes-admin, O = system:masters
Subject Public Key Info:
Public Key Algorithm: rsaEncryption
RSA Public-Key: (2048 bit)
Modulus:
00:b7:de:2f:2b:1c:be:e3:7f:dd:e5:04:b3:18:8a:
e1:d6:7c:b8:4f:ed:87:c2:21:ca:12:bd:7e:35:ef:
69:75:6e:38:69:07:18:9e:e6:c4:12:99:03:72:4d:
20:96:ab:d4:ac:8e:4d:b0:2b:3a:69:36:aa:82:a2:
a3:04:fb:1a:60:b7:5e:26:26:08:5b:c1:b5:58:b2:
55:4b:ed:a1:fc:6b:8f:84:d0:04:4f:d6:47:3e:b1:
99:eb:ed:91:f0:f0:f4:d8:9f:5c:af:13:36:68:3b:
f8:a3:31:fd:de:b6:c2:81:98:65:ca:db:a1:46:80:
b7:18:bd:5c:02:de:21:a1:3f:19:cc:da:a7:c2:09:
6b:dd:a7:40:95:2f:7f:b7:ff:ba:89:43:03:02:46:
6e:12:95:51:37:f4:4c:4c:ac:b0:50:65:59:1d:e5:
31:a1:ce:f8:6b:08:74:91:2e:89:5e:5f:b6:db:b8:
60:07:b2:c9:00:8e:bb:04:cd:6c:a0:e8:9c:e7:21:
5d:6a:45:04:cb:47:70:95:30:a7:ba:da:13:b1:2b:
5f:cd:5e:d4:39:4d:37:63:ad:45:87:46:57:4e:3a:
df:8a:c1:83:e3:b1:88:b5:9b:f9:68:fb:ef:b1:47:
32:06:9a:9e:41:35:0a:cf:1c:57:51:1d:15:f1:f6:
10:3d
Exponent: 65537 (0x10001)
X509v3 extensions:
X509v3 Key Usage: critical
Digital Signature, Key Encipherment
X509v3 Extended Key Usage:
TLS Web Client Authentication
X509v3 Basic Constraints: critical
CA:FALSE
X509v3 Authority Key Identifier:
keyid:33:AC:40:D4:C2:3E:E9:64:2B:F5:00:C7:EB:E9:78:45:62:DD:3E:15
Signature Algorithm: sha256WithRSAEncryption
82:7b:b4:e6:22:a1:bb:3c:79:4d:8c:7c:5d:2f:b2:9e:d2:ac:
e4:67:15:91:03:b3:66:47:6c:ec:82:fa:6b:6e:29:3a:60:0d:
3b:3d:82:7a:df:11:a7:3a:a5:44:66:1f:a6:21:d6:7d:22:32:
8b:5c:69:cb:3d:2e:9f:4e:ba:bb:7b:b0:ea:29:c7:32:5b:35:
7c:9c:e2:b5:69:c5:50:ab:6c:1b:99:2b:4d:1d:1f:b7:0c:1f:
39:e3:fd:ee:a8:8b:b6:38:9f:af:c2:cd:16:f5:d2:be:8e:c3:
97:59:7e:0e:d8:9f:ca:22:2b:02:c0:06:fa:e1:96:1d:90:55:
55:3c:c4:90:b3:22:32:89:8c:22:59:77:9d:87:31:4a:c6:5a:
57:35:c6:c3:5a:f4:6a:2f:60:b3:3b:60:06:35:c7:e4:5f:80:
3d:9e:58:28:6b:8e:3a:1b:a9:0e:ac:79:09:8f:c5:fd:ff:4f:
22:78:db:ad:36:69:15:94:86:f1:e4:3f:84:ec:99:93:4a:95:
dc:3e:ea:9d:94:e6:11:73:24:9a:88:12:2d:73:28:97:15:00:
31:5d:ed:11:42:80:00:20:b5:6c:ce:32:14:57:dc:c6:aa:5d:
90:cb:12:8b:5b:fa:14:3f:48:34:35:0d:5f:a8:84:f5:db:5b:
a8:22:0e:12
|
kubeconfig文件
1
2
3
4
5
6
| [root@master kubernetes]# tree
.
├── admin.conf # 用于kubectl与apiserver进行认证/控制集群
├── controller-manager.conf # 用于cm组件与apiserver进行认证
├── kubelet.conf # 用于kubelet组件与apiserver进行认证
└── scheduler.conf # 用于scheduler与apiserver进行认证
|
kubeconfig文件格式
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
| apiVersion: v1
kind: Config
clusters: # 集群配置
- cluster:
certificate-authority: */ca.crt # ca证书信息
server: https://****** # 集群地址
name: demo # 集群名称
contexts:
- context:
cluster: demo # 集群名称
user: demo # 对应证书CN值
name: demo
current-context: demo
preferences: {}
users:
- name: demo # 对应证书CN值
user:
client-certificate: */client.crt # 客户端证书
client-key: */client.key # 客户端私钥
|
