Keepalived概念

前置知识LVS，点我转到LVS

Keepalived最初是为LVS而设计，用于避免LVS的单点故障(只有一台LVS服务器，当它Down之后整个集群就崩溃了)。该项目主要是为了Linux系统和基础设施提供简单而强大的负载均衡和高可用性，Keepalived中的负载均衡框架依赖与LVS(IPVS)内核模块，提供4层(OSI七层模型中的第四层)负载均衡。

简单来说，Keepalived是LVS的升级版，在此基础上增加了故障检测和**高可用(VRRP)**功能，之前我们配置LVS的时候是使用ipvsadm软件包来进行设置的，但使用keepalived之后就无需通过ipvsadm进行配置管理，更多的是用来查看LVS的配置。

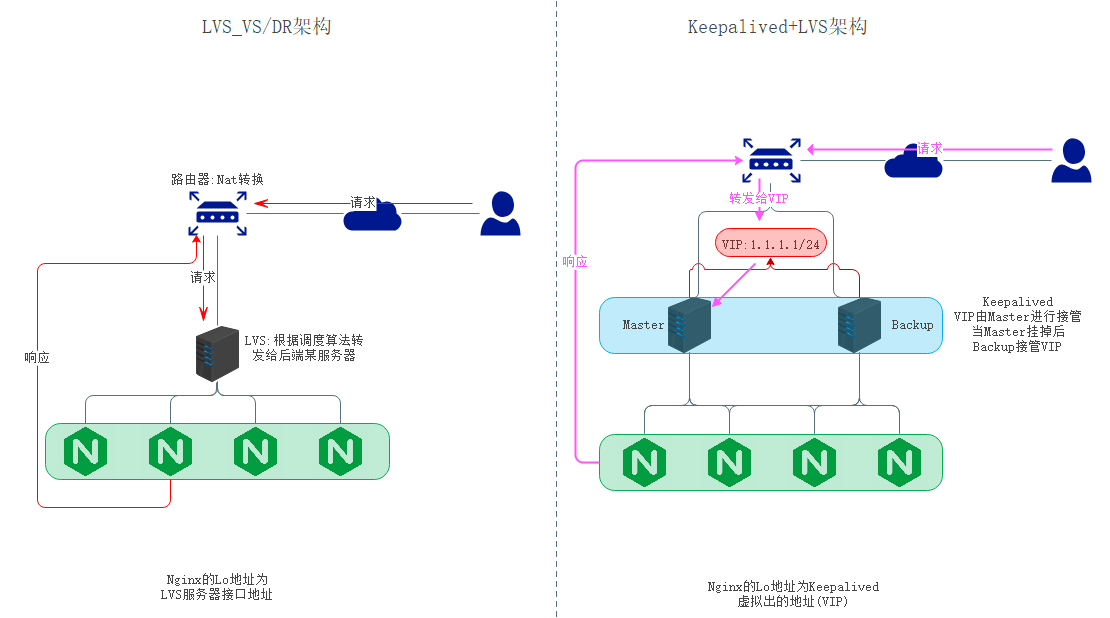

image-20220212070236487

如上图所示：

  • 传统LVS实现Web应用的高可用，但是LVS存在单点故障。当LVS服务器Down掉之后，整个集群将瘫痪无法对外提供服务。
  • Keepalived+LVS架构解决了LVS存在的单点故障并提供负载均衡、高可用性。当Master节点Down掉之后，Backup发现之后就会代替Master接管VIP的工作
  • Keepalived节点可以任意台(大于等于2)

配置文件解析

Keepalived配置分为三大模块

1
2
3
4
5
6
7
8
9
10
11
global_defs{
	# 全局配置块
}

vrrp_instance VI_1 {
	# VRRP配置块
}

virtual_server 192.168.1.1 80 {
	# LVS配置块
}

默认配置文件：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
! Configuration File for keepalived
# keepalived配置文件

#####################全局配置块##########################
global_defs {
   # 定义邮箱列表
   notification_email {
     acassen@firewall.loc
     failover@firewall.loc
     sysadmin@firewall.loc
   }
   # 定义邮件发送者
   notification_email_from Alexandre.Cassen@firewall.loc
   # 设置邮件服务器地址
   smtp_server 192.168.200.1
   # 邮件服务器连接超时30s
   smtp_connect_timeout 30
   # 路由ID(设备标识)
   router_id LVS_DEVEL
   # 如果通告与接收的上一个通告来自相同的master路由器，则不执行检查(跳过检查),默认开启
   vrrp_skip_check_adv_addr
   # 配置VRRP检测脚本
   vrrp_strict
   # 在接口上配置免费ARP发送时间
   vrrp_garp_interval 0
   # 在接口上发送未经请求的NA消息之间的延迟
   vrrp_gna_interval 0
}
#####################VRRP配置块##########################
# 定义VRRP实例
vrrp_instance VI_1 {
	# 设置VRRP状态(MASTER为主，BACKUP为备)
    state MASTER
    # VRRP绑定的网络接口
    interface eth0
    # 虚拟路由ID(相同的VRID为一个组，主从服务器需设为一致；该值为0-255)
    virtual_router_id 51
    # 优先级(越大越优)
    priority 100
    # 检查时间为1s
    advert_int 1
    # 验证方式
    authentication {
    	# 认证类型(PASS或AH)
        auth_type PASS
        # 验证密码
        auth_pass 1111
    }
    # 定义VIP，只有VRRP实例中MASTER拥有
    virtual_ipaddress {
        192.168.200.16
        192.168.200.17
        192.168.200.18
    }
}
################### LVS配置块############################
# 定义LVS虚拟服务
virtual_server 192.168.200.100 443 {
	# 服务器轮询间隔时间
    delay_loop 6
    # LVS调度算法(rr,wrr,lc,wlc,lblc,sh,dh)
    lb_algo rr
    # LVS工作模式(NAT,DR,TUN)
    lb_kind NAT
    # 会话保持时间
    persistence_timeout 50
    # 数据转发协议
    protocol TCP

	# 定义后端真实服务器IP及端口
    real_server 192.168.201.100 443 {
    	# 权重
        weight 1
        # 健康检测器(HTTP_GET\SSL_GET)
        SSL_GET {
        	# 统一资源定位器
            url {
              # 路径
              path /
              # 摘要(监控检测需要设置摘要或status_code)
              digest ff20ad2481f97b1754ef3e12ecd3a9cc
              # status_code 200
            }
            url {
              path /mrtg/
              digest 9b3a0c85a887a256d6939da88aabd8cd
            }
            # 连接超时3s
            connect_timeout 3
            # 重试3次
            retry 3
            # 失败后重试之前的延迟
            delay_before_retry 3
        }
    }
}

virtual_server 10.10.10.2 1358 {
    delay_loop 6
    lb_algo rr
    lb_kind NAT
    persistence_timeout 50
    protocol TCP

    sorry_server 192.168.200.200 1358

    real_server 192.168.200.2 1358 {
        weight 1
        HTTP_GET {
            url {
              path /testurl/test.jsp
              digest 640205b7b0fc66c1ea91c463fac6334d
            }
            url {
              path /testurl2/test.jsp
              digest 640205b7b0fc66c1ea91c463fac6334d
            }
            url {
              path /testurl3/test.jsp
              digest 640205b7b0fc66c1ea91c463fac6334d
            }
            connect_timeout 3
            retry 3
            delay_before_retry 3
        }
    }

    real_server 192.168.200.3 1358 {
        weight 1
        HTTP_GET {
            url {
              path /testurl/test.jsp
              digest 640205b7b0fc66c1ea91c463fac6334c
            }
            url {
              path /testurl2/test.jsp
              digest 640205b7b0fc66c1ea91c463fac6334c
            }
            connect_timeout 3
            retry 3
            delay_before_retry 3
        }
    }
}

virtual_server 10.10.10.3 1358 {
    delay_loop 3
    lb_algo rr
    lb_kind NAT
    persistence_timeout 50
    protocol TCP

    real_server 192.168.200.4 1358 {
        weight 1
        HTTP_GET {
            url {
              path /testurl/test.jsp
              digest 640205b7b0fc66c1ea91c463fac6334d
            }
            url {
              path /testurl2/test.jsp
              digest 640205b7b0fc66c1ea91c463fac6334d
            }
            url {
              path /testurl3/test.jsp
              digest 640205b7b0fc66c1ea91c463fac6334d
            }
            connect_timeout 3
            retry 3
            delay_before_retry 3
        }
    }

    real_server 192.168.200.5 1358 {
        weight 1
        HTTP_GET {
            url {
              path /testurl/test.jsp
              digest 640205b7b0fc66c1ea91c463fac6334d
            }
            url {
              path /testurl2/test.jsp
              digest 640205b7b0fc66c1ea91c463fac6334d
            }
            url {
              path /testurl3/test.jsp
              digest 640205b7b0fc66c1ea91c463fac6334d
            }
            connect_timeout 3
            retry 3
            delay_before_retry 3
        }
    }
}

实验

keepalived部署及配置

  • 实验拓扑

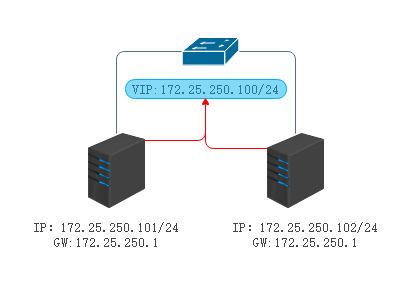

    由两台服务器共同维护一个VIP，VIP正常情况下由Master接管，当Master发生故障后由Backup代替接管

    image-20220212165741955

  • IP地址配置(略)

  • Master配置

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    [root@backup ~]# systemctl disable --now firewalld
    [root@master ~]# ip add
    1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
        link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
        inet 127.0.0.1/8 scope host lo
           valid_lft forever preferred_lft forever
        inet6 ::1/128 scope host
           valid_lft forever preferred_lft forever
    2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
        link/ether 00:0c:29:73:6d:58 brd ff:ff:ff:ff:ff:ff
        inet 172.25.250.101/24 brd 172.25.250.255 scope global noprefixroute ens33
           valid_lft forever preferred_lft forever
        inet6 fe80::20c:29ff:fe73:6d58/64 scope link noprefixroute
           valid_lft forever preferred_lft forever
    [root@master ~]# dnf -y install keepalived
    [root@master ~]# cd /etc/keepalived/
    [root@master keepalived]# cp keepalived.conf keepalived.conf.bak
    [root@master keepalived]# vim keepalived.conf
    ! Configuration File for keepalived

    global_defs {
       notification_email {
           # 邮箱列表没有不写
       }
       router_id master	# 路由表示设置为主机名
       vrrp_skip_check_adv_addr
       vrrp_garp_interval 0
       vrrp_gna_interval 0
    }

    vrrp_instance VI_1 {
        state MASTER	# 状态设置为master
        interface ens33		# 绑定接口为ens33
        virtual_router_id 51	# 虚拟路由IP
        priority 100	# 优先级
        advert_int 1
        authentication {
            auth_type PASS
            auth_pass 1111
        }
        virtual_ipaddress {
            172.25.250.100	# VIP
        }
    }
    [root@master keepalived]# systemctl enable --now keepalived

  • Backup配置

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    [root@backup ~]# systemctl disable --now firewalld
    [root@backup ~]# dnf -y install keepalived
    [root@backup ~]# cd /etc/keepalived/
    [root@backup keepalived]# ls
    keepalived.conf
    [root@backup keepalived]# mv keepalived.conf keepalived.conf.bak
    # 这里我就不修改了直接拷贝Master的配置文件过来
    [root@backup keepalived]# scp root@172.25.250.101:/etc/keepalived/keepalived.conf .
    root@172.25.250.101's password:
    keepalived.conf                                                                       100%  424   233.5KB/s   00:00
    [root@backup keepalived]# vim keepalived.conf
    ! Configuration File for keepalived

    global_defs {
       notification_email {
       }
       router_id backup		# 路由ID改为主机名
       vrrp_skip_check_adv_addr
       vrrp_garp_interval 0
       vrrp_gna_interval 0
    }

    vrrp_instance VI_1 {
        state BACKUP	# 状态为备用
        interface ens33		# 接口
        virtual_router_id 51	# 虚拟路由ID，同于一个vrrp组需一样
        priority 99				# 备节点需比Master优先级低
        advert_int 1
        authentication {
            auth_type PASS
            auth_pass 1111		# 密码验证
        }
        virtual_ipaddress {
            172.25.250.100		# VIP
        }
    }
    [root@backup ~]# systemctl enable --now keepalived

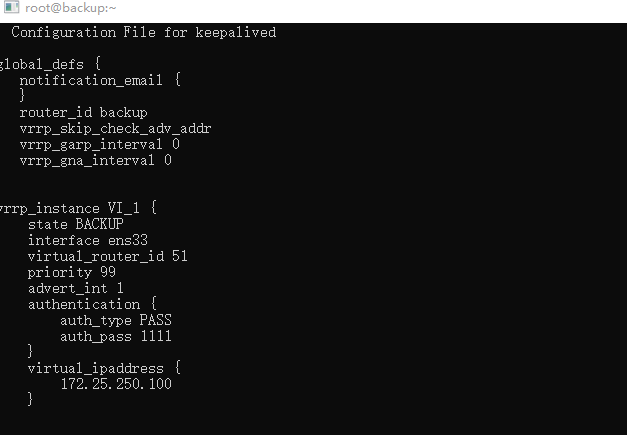

    image-20220212171839534

  • 验证阶段

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    [root@master ~]# ip add
    1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
        link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
        inet 127.0.0.1/8 scope host lo
           valid_lft forever preferred_lft forever
        inet6 ::1/128 scope host
           valid_lft forever preferred_lft forever
    2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
        link/ether 00:0c:29:73:6d:58 brd ff:ff:ff:ff:ff:ff
        inet 172.25.250.101/24 brd 172.25.250.255 scope global noprefixroute ens33
           valid_lft forever preferred_lft forever
        inet 172.25.250.100/32 scope global ens33		# VIP
           valid_lft forever preferred_lft forever
        inet6 fe80::20c:29ff:fe73:6d58/64 scope link noprefixroute
           valid_lft forever preferred_lft forever
    -------------------------------------------------------------------------------------------
    [root@backup ~]# ip add
    1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
        link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
        inet 127.0.0.1/8 scope host lo
           valid_lft forever preferred_lft forever
        inet6 ::1/128 scope host
           valid_lft forever preferred_lft forever
    2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
        link/ether 00:0c:29:b7:ea:f8 brd ff:ff:ff:ff:ff:ff
        inet 172.25.250.102/24 brd 172.25.250.255 scope global noprefixroute ens33
           valid_lft forever preferred_lft forever
        inet6 fe80::20c:29ff:feb7:eaf8/64 scope link noprefixroute
           valid_lft forever preferred_lft forever
    [root@backup ~]#
    # 通过ipadd命令查看，可以发现VIP由master接管
    ------------------------------------------------------------------------------------------

    image-20220212183851781

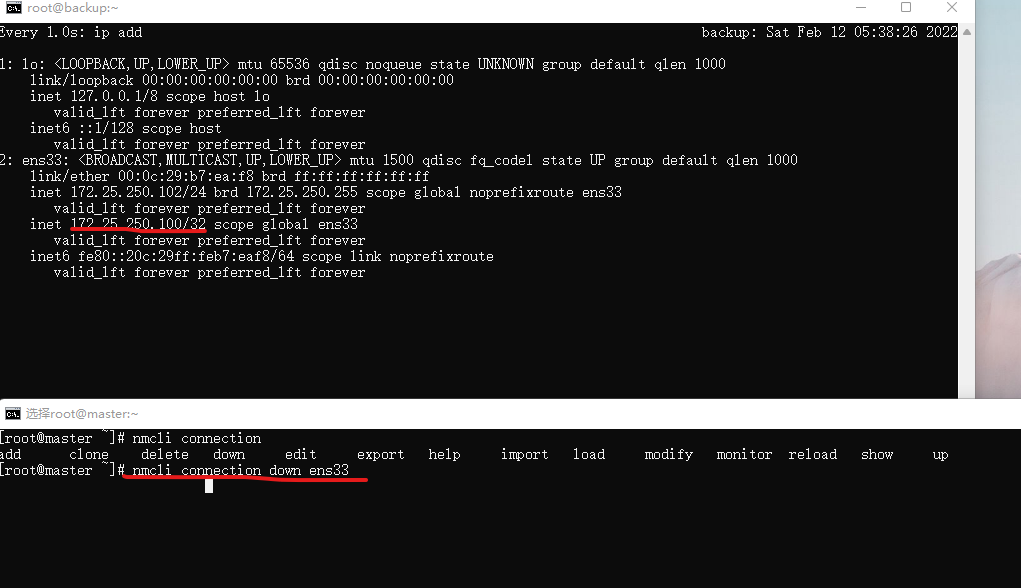

    当我主动断开master网卡接口之后，172.25.250.100被backup接管

  • 分析日志

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    [root@backup ~]# tail -n 50 /var/log/messages
    Feb 12 05:30:02 backup Keepalived_vrrp[1141]: (VI_1) Sending/queueing gratuitous ARPs on ens33 for 172.25.250.100
    Feb 12 05:30:02 backup Keepalived_vrrp[1141]: Sending gratuitous ARP on ens33 for 172.25.250.100
    Feb 12 05:30:02 backup Keepalived_vrrp[1141]: Sending gratuitous ARP on ens33 for 172.25.250.100
    Feb 12 05:30:02 backup Keepalived_vrrp[1141]: Sending gratuitous ARP on ens33 for 172.25.250.100
    Feb 12 05:30:02 backup Keepalived_vrrp[1141]: Sending gratuitous ARP on ens33 for 172.25.250.100
    Feb 12 05:30:02 backup Keepalived_vrrp[1141]: Sending gratuitous ARP on ens33 for 172.25.250.100
    Feb 12 05:30:16 backup Keepalived_vrrp[1141]: (VI_1) Master received advert from 172.25.250.101 with higher priority 255, ours 99
    Feb 12 05:30:16 backup Keepalived_vrrp[1141]: (VI_1) Entering BACKUP STATE	# 此时服务器还是backup状态
    Feb 12 05:30:16 backup Keepalived_vrrp[1141]: (VI_1) removing VIPs.	# 并移除VIP
    Feb 12 05:30:53 backup kernel: perf: interrupt took too long (4036 > 3271), lowering kernel.perf_event_max_sample_rate to 49000
    Feb 12 05:36:40 backup systemd[1]: Starting Cleanup of Temporary Directories...
    Feb 12 05:36:40 backup systemd[1]: systemd-tmpfiles-clean.service: Succeeded.
    Feb 12 05:36:40 backup systemd[1]: Started Cleanup of Temporary Directories.
    Feb 12 05:37:59 backup Keepalived_vrrp[1141]: (VI_1) Backup received priority 0 advertisement
    Feb 12 05:38:00 backup Keepalived_vrrp[1141]: (VI_1) Receive advertisement timeout	# 检查超时，此时因为我们关闭了master的网卡
    Feb 12 05:38:00 backup Keepalived_vrrp[1141]: (VI_1) Entering MASTER STATE	# 服务器进入master状态进行接管
    Feb 12 05:38:00 backup Keepalived_vrrp[1141]: (VI_1) setting VIPs.	# 添加VIP
    Feb 12 05:38:00 backup Keepalived_vrrp[1141]: (VI_1) Sending/queueing gratuitous ARPs on ens33 for 172.25.250.100
    Feb 12 05:38:00 backup Keepalived_vrrp[1141]: Sending gratuitous ARP on ens33 for 172.25.250.100
    Feb 12 05:38:00 backup Keepalived_vrrp[1141]: Sending gratuitous ARP on ens33 for 172.25.250.100
    Feb 12 05:38:00 backup Keepalived_vrrp[1141]: Sending gratuitous ARP on ens33 for 172.25.250.100
    Feb 12 05:38:00 backup Keepalived_vrrp[1141]: Sending gratuitous ARP on ens33 for 172.25.250.100
    Feb 12 05:38:00 backup Keepalived_vrrp[1141]: Sending gratuitous ARP on ens33 for 172.25.250.100
    Feb 12 05:38:05 backup Keepalived_vrrp[1141]: (VI_1) Sending/queueing gratuitous ARPs on ens33 for 172.25.250.100
    Feb 12 05:38:05 backup Keepalived_vrrp[1141]: Sending gratuitous ARP on ens33 for 172.25.250.100
    Feb 12 05:38:05 backup Keepalived_vrrp[1141]: Sending gratuitous ARP on ens33 for 172.25.250.100
    Feb 12 05:38:05 backup Keepalived_vrrp[1141]: Sending gratuitous ARP on ens33 for 172.25.250.100
    Feb 12 05:38:05 backup Keepalived_vrrp[1141]: Sending gratuitous ARP on ens33 for 172.25.250.100
    Feb 12 05:38:05 backup Keepalived_vrrp[1141]: Sending gratuitous ARP on ens33 for 172.25.250.100

LVS+Keepalived实践

采用LVS VS/DR模式+Keepalived

  • 实验拓扑

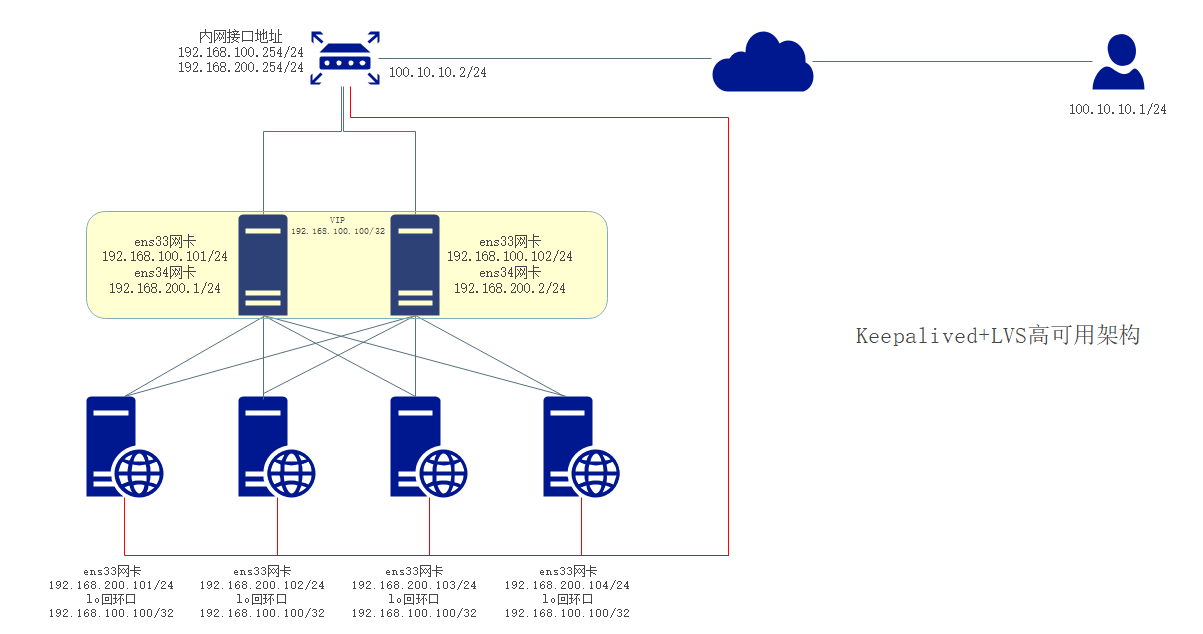

    image-20220212204324934

  • 配置环境

    • 四台Web服务器

      1
      2
      3
      4
      5
      6
      7
      8
      [root@web01 ~]# vi /etc/sysctl.conf
      net.ipv4.conf.all.arp_ignore = 1
      net.ipv4.conf.lo.arp_ignore = 1
      net.ipv4.conf.all.announce = 2
      net.ipv4.conf.lo.announce = 2
      [root@web01 ~]# sysctl -p
      [root@web01 ~]# ip address add 192.168.100.100/32 dev lo

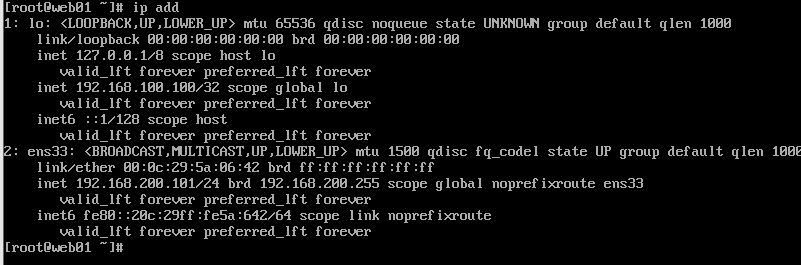

      [root@web01 ~]# ip address

      image-20220212210709887

      1
      2
      3
      4
      5
      6
      7
      8
      9
      10
      11
      12
      13
      14
      15
      16
      17
      18
      19
      [root@web01 ~]# mount /dev/sr0 /mnt/
      [root@web01 ~]# tee > /etc/yum.repos.d/a.repo << EOF
      [BaseOS]
      name = BaseOS
      baseurl = file:///mnt/BaseOS
      enabled = 1
      gpgcheck = 0

      [AppStream]
      name = AppStream
      baseurl = file:///mnt/AppStream
      enabled = 1
      gpgcheck = 0
      EOF
      [root@web01 ~]# dnf -y install httpd
      [root@web01 ~]# systemctl enable --now httpd
      [root@web01 ~]# systemctl disable --now firewalld
      [root@web01 ~]# echo "web01" > /var/www/html/index.html
      [root@web01 ~]# curl http://localhost

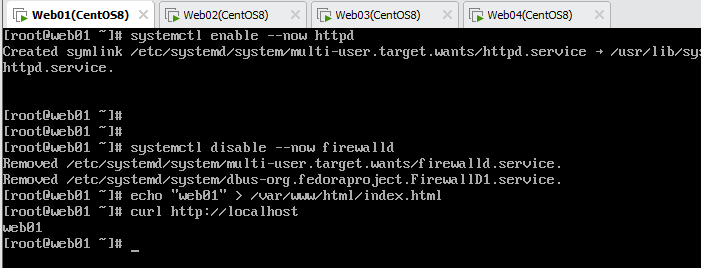

      image-20220212211319941

      1
      2
      3
      4
      5
      6
      7
      8
      9
      10
      11
      12
      13
      14
      [root@web01 ~]# scp /etc/sysctl.conf 192.168.200.102:/etc/sysctl.conf
      [root@web01 ~]# scp /etc/sysctl.conf 192.168.200.103:/etc/sysctl.conf
      [root@web01 ~]# scp /etc/sysctl.conf 192.168.200.104:/etc/sysctl.conf
      [root@web01 ~]# scp /etc/yum.repos.d/a.repo 192.168.200.102:/etc/yum.repos.d/a.repo
      [root@web01 ~]# scp /etc/yum.repos.d/a.repo 192.168.200.103:/etc/yum.repos.d/a.repo
      [root@web01 ~]# scp /etc/yum.repos.d/a.repo 192.168.200.104:/etc/yum.repos.d/a.repo
      [root@web01 ~]# ssh 192.168.200.102
      [root@web02 ~]# sysctl -p
      [root@web02 ~]# ip address add 192.168.100.100/32 dev lo
      [root@web02 ~]# mount /dev/sr0 /mnt
      [root@web02 ~]# dnf -y install httpd
      [root@web02 ~]# systemctl enable --now httpd
      [root@web02 ~]# systemctl disable --now firewalld

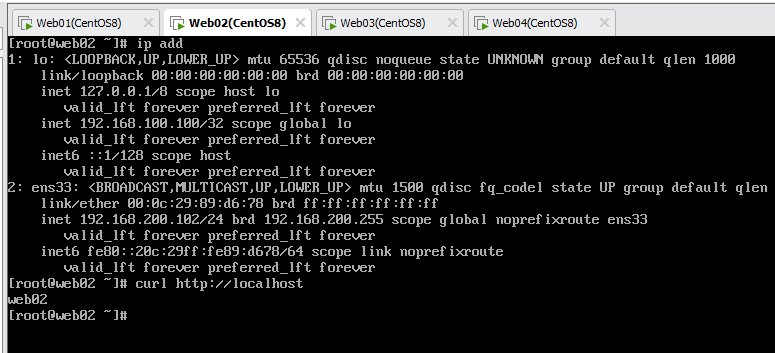

      [root@web02 ~]# curl http://localhost

    image-20220212212042834

    1
    2
    3
    4
    5
    6
    7
    8
    9
    [root@web02 ~]# ssh 192.168.200.103
    [root@web03 ~]# sysctl -p
    [root@web03 ~]# ip address add 192.168.100.100/32 dev lo
    [root@web03 ~]# mount /dev/sr0 /mnt/
    [root@web03 ~]# dnf -y install httpd
    [root@web03 ~]# systemctl enable --now httpd
    [root@web03 ~]# systemctl disable --now firewalld
    [root@web03 ~]# echo "web03" > /var/www/html/index.html

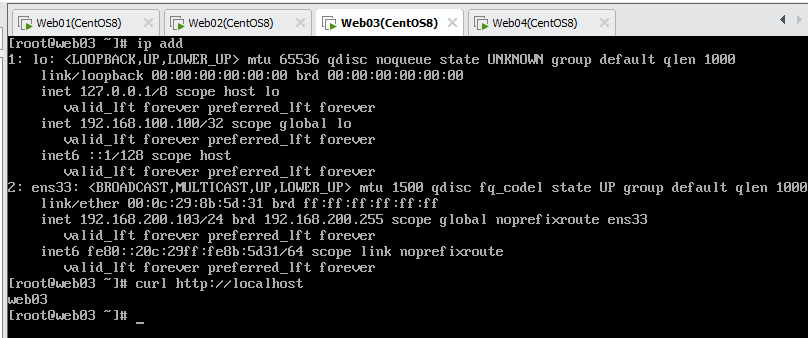

    [root@web03 ~]# curl http://localhost

    image-20220212212600468

    1
    2
    3
    4
    5
    6
    7
    8
    9
    [root@web03 ~]# ssh 192.168.200.104
    [root@web04 ~]# mount /dev/sr0 /mnt
    [root@web04 ~]# sysctl -p
    [root@web04 ~]# ip add add 192.168.100.100/32 dev lo
    [root@web04 ~]# dnf -y install httpd
    [root@web04 ~]# systemctl enable --now httpd
    [root@web04 ~]# systemctl disable --now firewalld
    [root@web04 ~]# echo "web04" > /var/www/html/index.html
    [root@web04 ~]# curl http://localhost

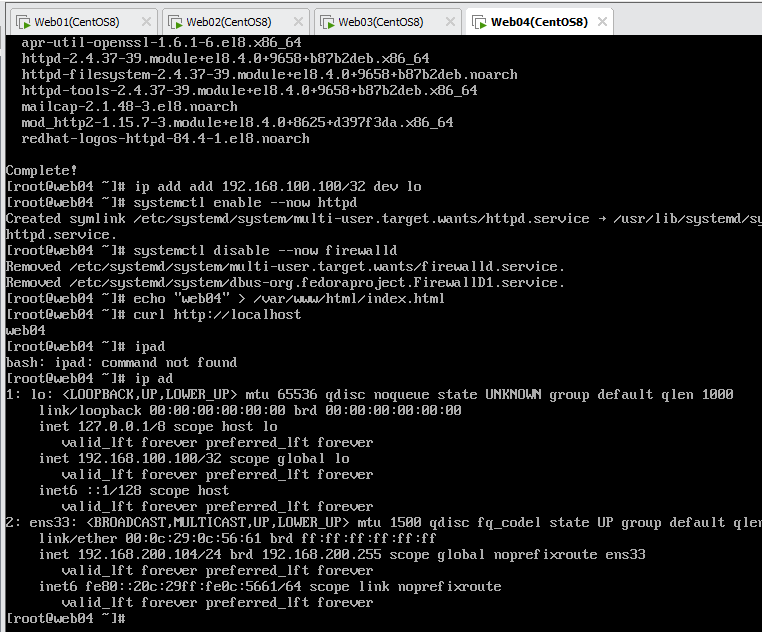

    image-20220212212940769

    • 配置Keepalived(Master)+LVS

      IP配置略

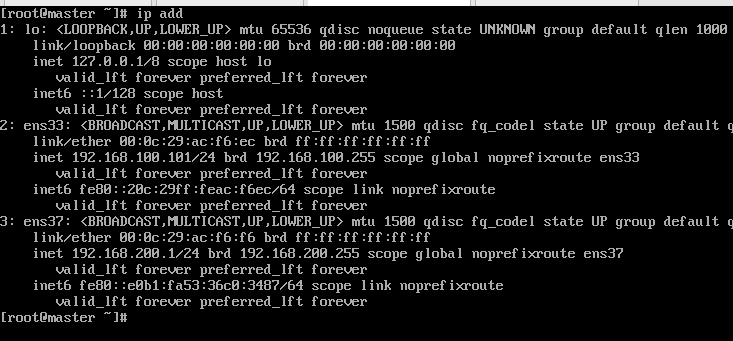

      image-20220212214708348

      1
      2
      3
      4
      5
      6
      7
      8
      9
      10
      11
      12
      13
      14
      15
      16
      17
      18
      19
      20
      21
      22
      23
      24
      25
      26
      27
      28
      29
      30
      31
      32
      33
      34
      35
      36
      37
      38
      39
      40
      41
      42
      43
      44
      45
      46
      47
      48
      49
      50
      [root@master ~]# scp 192.168.200.101:/etc/yum.repos.d/a.repo /etc/yum.repos.d/a.repo
      [root@master ~]# mount /dev/sr0 /mnt
      [root@master ~]# systemctl disable --now firewalld
      [root@master ~]# echo "1" > /proc/sys/net/ipv4/ip_forward
      [root@master ~]# dnf -y install keepalived
      [root@master ~]# dnf -y install vim
      [root@master ~]# cp /etc/keepalived/keepalived.conf /etc/keepalived/keepalived.conf.bak
      [root@master ~]# vim /etc/keepalived/keepalived.conf
      ! Configuration File for keepalived

      global_defs {
      	router_id master
      }

      vrrp_instance VI_1 {
      	state MASTER
      	interface ens33
      	virtual_router_id 51
      	priority 100
      	advert_int 1
      	authentication {
      		auth_type PASS
      		auth_pass 1111
      	}
      	virtual_ipaddress {
      		192.168.100.100
      	}
      }

      virtual_server 192.168.100.100 80 {
      	delay_loop 6
      	lb_algo rr
      	lb_kind DR
      	persistence_timeout 50

      	real_server 192.168.200.101 80 {
      		weight 1
      	}
      	real_server 192.168.200.102 80 {
      		weight 1
      	}
      	real_server 192.168.200.103 80 {
      		weight 1
      	}
      	real_server 192.168.200.104 80 {
      		weight 1
      	}
      }
      [root@master ~]# systemctl enable --now keepalived

    • 配置Keepalived(Backup)+LVS

      1
      2
      3
      4
      5
      6
      7
      8
      9
      10
      11
      12
      13
      14
      15
      16
      17
      18
      19
      20
      21
      22
      23
      24
      25
      26
      27
      28
      29
      30
      31
      32
      33
      34
      35
      36
      37
      38
      39
      40
      41
      42
      43
      44
      45
      46
      47
      48
      [root@backup ~]# mount /dev/sr0 /mnt/
      [root@backup ~]# scp 192.168.100.101:/etc/yum.repos.d/a.repo /etc/yum.repos.d/a.repo
      [root@backup ~]# systemctl disable --now firewalld
      [root@backup ~]# echo "1" > /proc/sys/net/ipv4/ip_forward
      [root@backup ~]# dnf -y install vim keepalived
      [root@backup ~]# scp 192.168.100.101:/etc/keepalived/keepalived.conf /etc/keepalived/keepalived.conf
      [root@backup ~]# vim /etc/keepalived/keepalived.conf
      ! Configuration File for keepalived

      global_defs {
      	router_id backup
      }

      vrrp_instance VI_1 {
      	state BACKUP
      	interface ens33
      	virtual_router_id 51
      	priority 99
      	advert_int 1
      	authentication {
      		auth_type PASS
      		auth_pass 1111
      	}
      	virtual_ipaddress {
      		192.168.100.100
      	}
      }

      virtual_server 192.168.100.100 80 {
      	delay_loop 6
      	lb_algo rr
      	lb_kind DR
      	persistence_timeout 50

      	real_server 192.168.200.101 80 {
      		weight 1
      	}
      	real_server 192.168.200.102 80 {
      		weight 1
      	}
      	real_server 192.168.200.103 80 {
      		weight 1
      	}
      	real_server 192.168.200.104 80 {
      		weight 1
      	}
      }
      [root@backup ~]# systemctl enable --now keepalived

    • 配置网关及Nat

      • 配置网卡

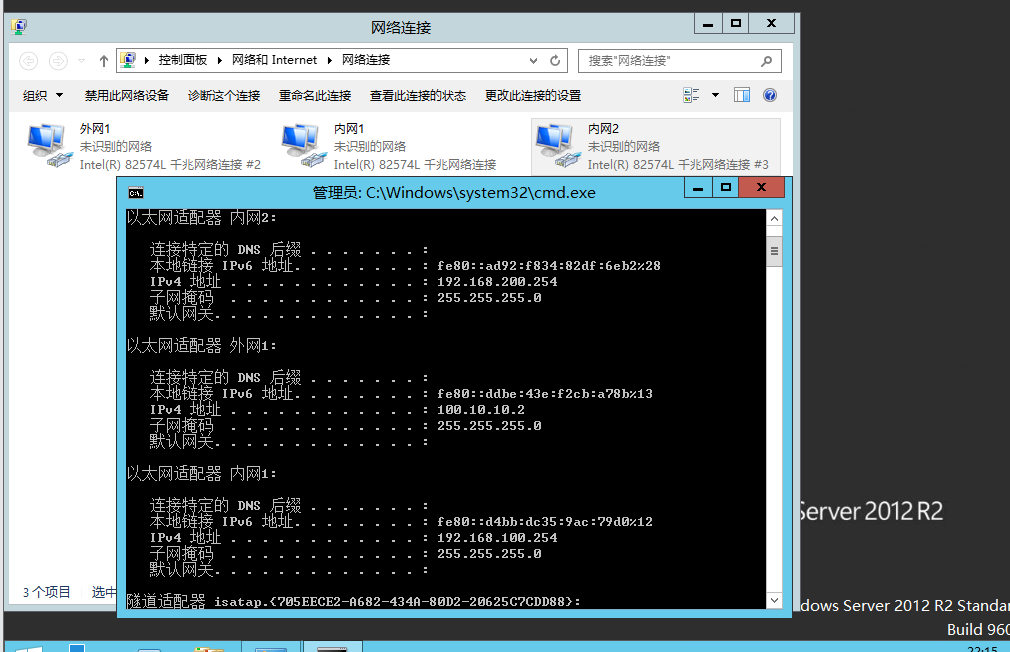

      image-20220212221601562

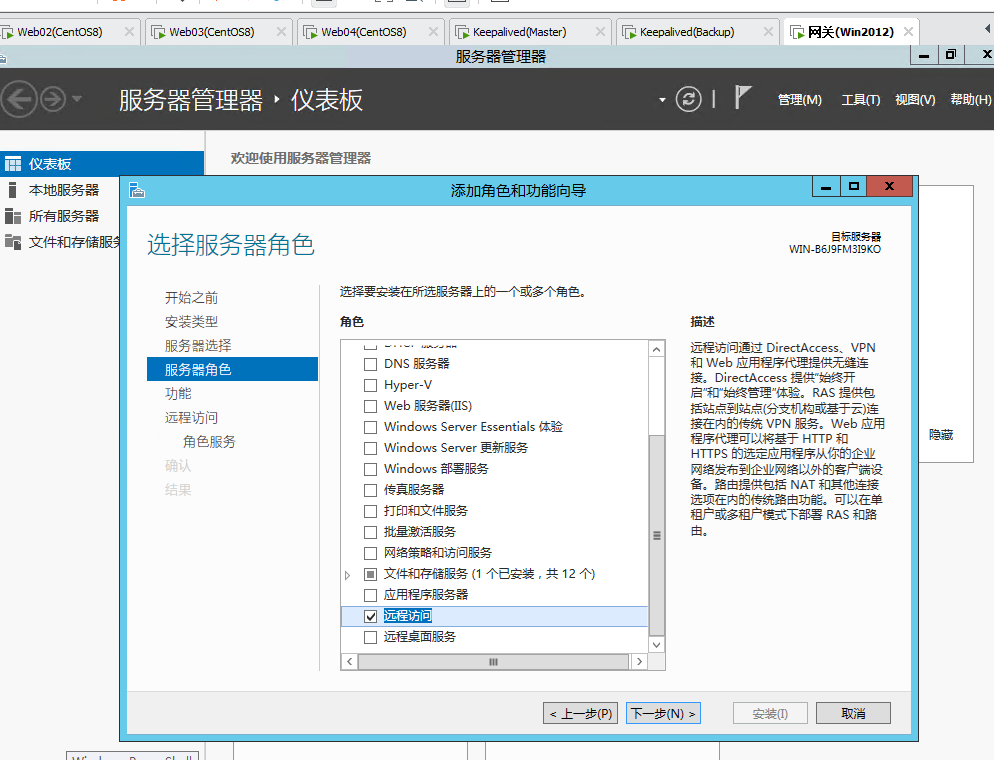

      • 安装服务

        image-20220212221808032

        选择路由然后一下步直至安装完毕

        image-20220212221823741

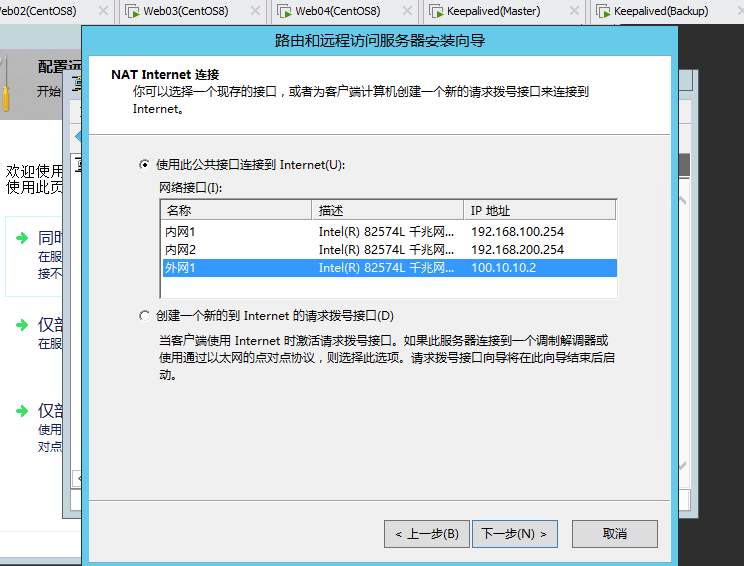

      • 安装好之后配置NAT

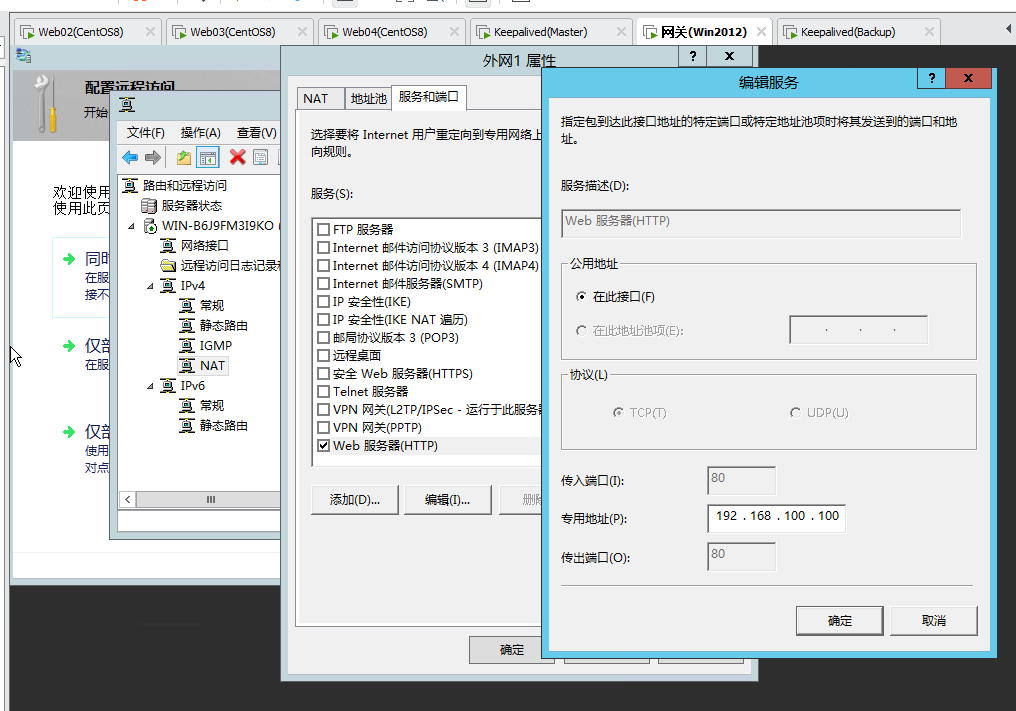

        image-20220212222047738

        image-20220212222248554

  • 测试

    IP地址随意，不一定按照拓扑图上来

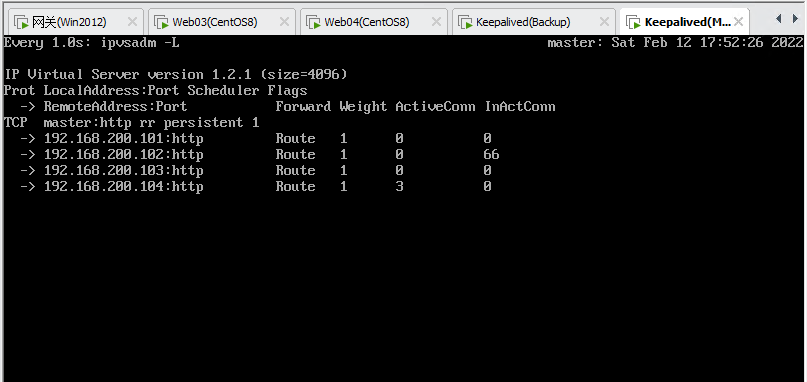

    我这测试的情况是一台主机发送请求后一直对应后端的Web02服务器，更换IP后后端Web才变

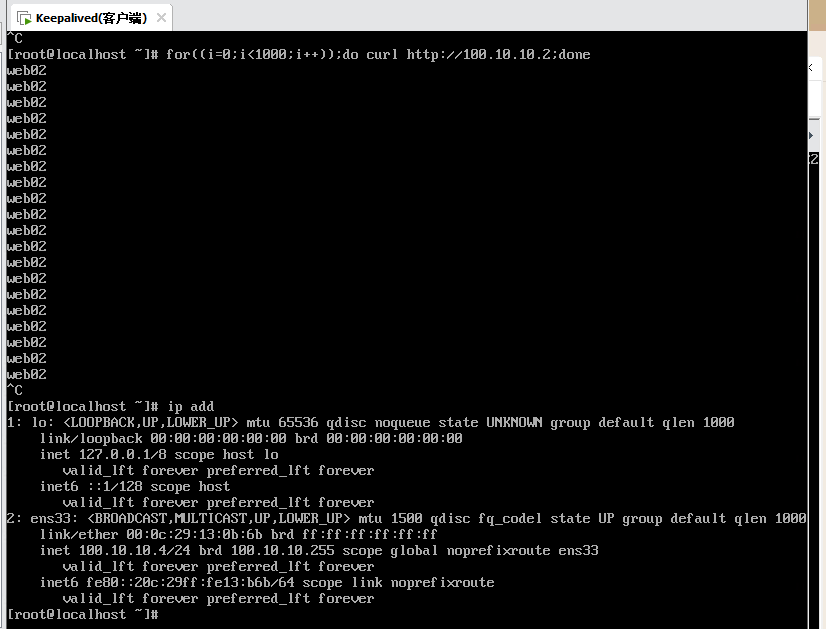

    image-20220212225053422

    image-20220212225231668

  • 断开Master网卡

    1
    [root@master ~]# nmcli connection down ens33

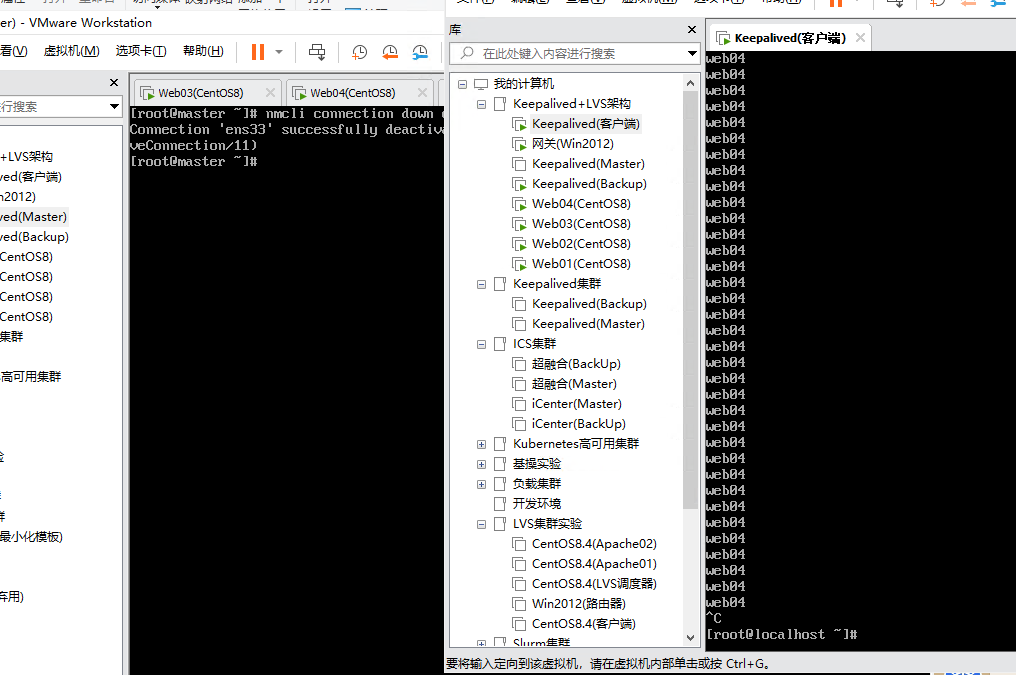

    再次访问(结果正常，实现了LVS的高可用)

    image-20220212225440861

    • Backup正常接管VIP

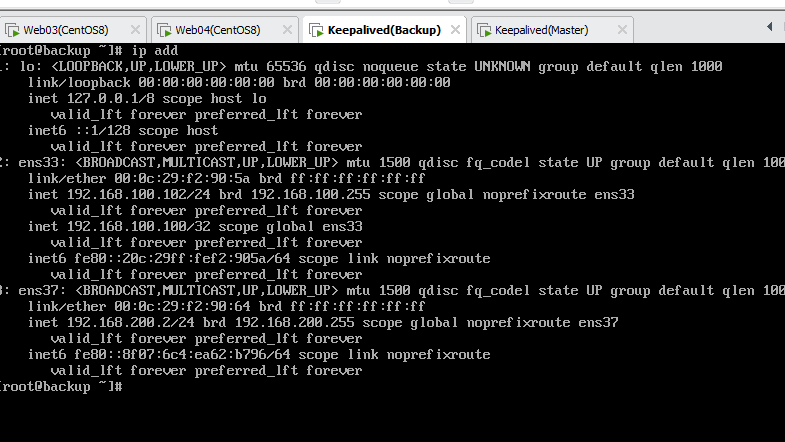

image-20220212225536408
