概念

网络策略

在kubernetes集群中可以使用网络策略(NetworkPolicy)对Pod的IP或端口进行网络流量控制，NetworkPolicy是一种以应用为中心的结构，允许Pod与网络上的各类实体通信，NetworkPolicies适用于一端或者两端与Pod的连接，与其他连接无关

Pod是通过如下三个标识符的组合来辨识的：

  • 被允许的Pods
  • 被允许的名称空间
  • IP组

隔离类型

Pod有两种隔离：

  • 出口隔离
  • 入口隔离

默认情况下，一个Pod的出口是非隔离的，所有向外的连接都是被允许的。如果有网络策略选择改Pod并在其policyTypes中包含了Egress，则改Pod的出口是隔离的；这样的策略适用于该Pod的出口，当Pod的出口被隔离时，则Pod的连接必须符合NetworkPolicy中的egress的策略，egress列表中的策略效果是相加的

Ingress同理，Pod的入口是非隔离的，所有向内的连接都是被允许的。如果有网络策略选择改Pod并在其policyTypes中包含了Ingress，则改Pod的入口是隔离的；这样的策略适用于该Pod的入口，当Pod的入口被隔离时，则Pod的连接必须符合NetworkPolicy中的Ingress的策略，Ingress列表中的策略效果是相加的

选择器

两种行为：

  • from(源)：从哪来
  • to(目的)：到哪去

四种选择器：

  • PodSelector

    此选择器在Network的名称空间中选择特定的Pod，将其作为流量的入站目的地或出站来源

  • namespaceSelector

    此选择器将选择特定的名称空间，将所有的Pod的流量作为入站目的地或出站来源

  • namespaceSelector和podselector

    此选择器将特定名称空间下特定的Pod作为流量作为入站目的地或出站来源

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    # 这种写法from列表包含一个元素，只允许来自标有role=client的Pod且该Pod所在的名称空间标有user=alice的连接
    ...
     ingress:
     - from:
       - namespaceSelector:
           matchLabels:
             user: alice
         podSelector:
           matchLabels:
             role: client
     ...

     #######################################################################
     # 这种写法from列表包含两个元素，允许来自标有role=client的Pod的连接，或来自名称空间标有user=alice
     ...
     ingress:
     - from:
       - namespaceSelector:
           matchLabels:
             user: alice
       - podSelector:
           matchLabels:
             role: client
     ...

  • ipBlock

    此选择器将选择特定的IP CIDR范围以作为入站流量来源或出站流量的目的地

例子

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
apiVersion: networking.k8s.io/v1
kind: NetworkPolicy
metadata:
  name: test-network-policy策略
  namespace: default		# 在默认名称空间创建test-network-policy策略
spec:
  podSelector:				# pod选择器用于作为流量入站或出站的目的地
    matchLabels:
      role: db					# 带有role: db标签的Pod作为流量的目的地
  policyTypes:				# 策略类型,对进站和出站进行限制
    - Ingress
    - Egress
  ingress:					# 进站规则
    - from:						# 来源
        - ipBlock:					# (进站流量)来源必须符合172.17.0.0/16IP段的,且不是172.17.1.0/24段的IP的流量进入默认名称空间
            cidr: 172.17.0.0/16
            except:
              - 172.17.1.0/24
        - namespaceSelector:		# (进站流量)来源必须是project: myproject名称空间的流量进入默认名称空间
            matchLabels:
              project: myproject
        - podSelector:				# (进站流量)来源必须是标签为role: frontend的Pod的流量进入默认名称空间
            matchLabels:
              role: frontend
      ports:						# (进站流量)来自符合上面条件且目的端口是6379/TCP的流量
        - protocol: TCP
          port: 6379
  egress:					# 出站规则
    - to:						# 到哪
        - ipBlock:					# (出站流量)只允许默认名称空间的流量到10.0.0.0/24网络
            cidr: 10.0.0.0/24
      ports:						# (出站流量)来自符合上面条件且目的端口是5978/TCP的流量
        - protocol: TCP
          port: 5978

实验

实验环境

image-20221119015610802

1
2
3
4
5
6
7
8
9
10
11
12
[root@master networkpolicy]# kubectl get pod -o wide
NAME    READY   STATUS    RESTARTS   AGE   IP               NODE     NOMINATED NODE   READINESS GATES
app01   1/1     Running   0          11m   172.11.196.133   node01   <none>           <none>
app02   1/1     Running   0          10m   172.11.196.134   node01   <none>           <none>
[root@master networkpolicy]# kubectl get pod -o wide -n app02
NAME    READY   STATUS    RESTARTS   AGE     IP               NODE     NOMINATED NODE   READINESS GATES
app01   1/1     Running   0          6m18s   172.11.196.135   node01   <none>           <none>
app02   1/1     Running   0          5m46s   172.11.196.136   node01   <none>           <none>
[root@master networkpolicy]# kubectl get pod -o wide -n app03
NAME    READY   STATUS    RESTARTS   AGE     IP               NODE     NOMINATED NODE   READINESS GATES
app01   1/1     Running   0          4m36s   172.11.140.73    node02   <none>           <none>
app02   1/1     Running   0          4m13s   172.11.196.137   node01   <none>           <none>

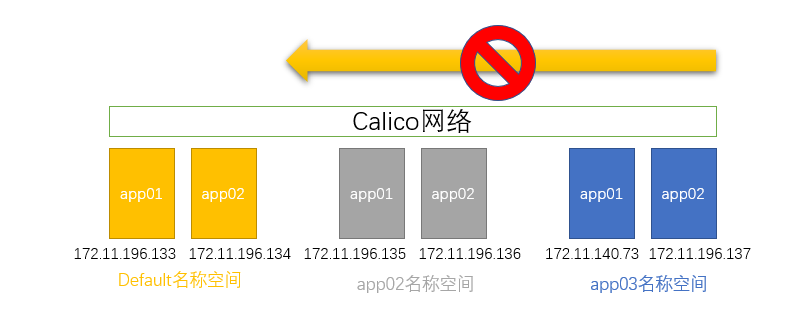

禁止访问Default

image-20221119015904520

  1. 测试默认情况下是否能访问

    下面实验结论在没有策略的情况下不同名称空间的Pod网络是互通的

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    [root@master networkpolicy]# kubectl exec -it app01 -n app02 -- sh
    / # ping 172.11.196.133
    PING 172.11.196.133 (172.11.196.133): 56 data bytes
    64 bytes from 172.11.196.133: seq=0 ttl=63 time=0.102 ms
    64 bytes from 172.11.196.133: seq=1 ttl=63 time=0.095 ms
    ^C
    --- 172.11.196.133 ping statistics ---
    2 packets transmitted, 2 packets received, 0% packet loss
    round-trip min/avg/max = 0.095/0.098/0.102 ms
    / # ping 172.11.196.134
    PING 172.11.196.134 (172.11.196.134): 56 data bytes
    64 bytes from 172.11.196.134: seq=0 ttl=63 time=0.108 ms
    64 bytes from 172.11.196.134: seq=1 ttl=63 time=0.092 ms
    ^C
    --- 172.11.196.134 ping statistics ---
    2 packets transmitted, 2 packets received, 0% packet loss
    round-trip min/avg/max = 0.092/0.100/0.108 ms

    ==================================================================================================
    [root@master networkpolicy]# kubectl exec -it app02 -n app03 -- sh
    / # ping 172.11.196.133
    PING 172.11.196.133 (172.11.196.133): 56 data bytes
    64 bytes from 172.11.196.133: seq=0 ttl=63 time=0.102 ms
    ^C
    --- 172.11.196.133 ping statistics ---
    1 packets transmitted, 1 packets received, 0% packet loss
    round-trip min/avg/max = 0.102/0.102/0.102 ms
    / # ping 172.11.196.134
    PING 172.11.196.134 (172.11.196.134): 56 data bytes
    64 bytes from 172.11.196.134: seq=0 ttl=63 time=0.086 ms
    ^C
    --- 172.11.196.134 ping statistics ---
    1 packets transmitted, 1 packets received, 0% packet loss
    round-trip min/avg/max = 0.086/0.086/0.086 ms

  2. 创建网络策略

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    [root@master networkpolicy]# vi network01.yaml
    apiVersion: networking.k8s.io/v1
    kind: NetworkPolicy
    metadata:
      name: deny-all-in
    spec:
      podSelector: {}
      policyTypes:
      - Ingress

    [root@master networkpolicy]# kubectl apply -f network01.yaml
    networkpolicy.networking.k8s.io/deny-all-in created

  3. 测试

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    [root@master networkpolicy]# kubectl exec -it app01 -n app02 -- sh
    / # ping 172.11.196.133
    PING 172.11.196.133 (172.11.196.133): 56 data bytes

    --- 172.11.196.133 ping statistics ---
    33 packets transmitted, 0 packets received, 100% packet loss
    # 无响应
    / # ping 172.11.196.134
    PING 172.11.196.134 (172.11.196.134): 56 data bytes

    --- 172.11.196.134 ping statistics ---
    24 packets transmitted, 0 packets received, 100% packet loss
    # 无响应

    注意：

    只是禁止了所有流量进入default名称空间，不是真的所有的流量都无法进入，default名称空间下Pod的响应流量是可以回来的

    禁止所有流量出站，同理将策略的Ingress改成Egress。同理，自己的请求流量无法出站，但是响应可以

    同时拒绝进站出站流量，需要将两个一起加上即可

  4. 清除策略

    1
    2
    [root@master networkpolicy]# kubectl delete -f network01.yaml
    networkpolicy.networking.k8s.io "deny-all-in" deleted

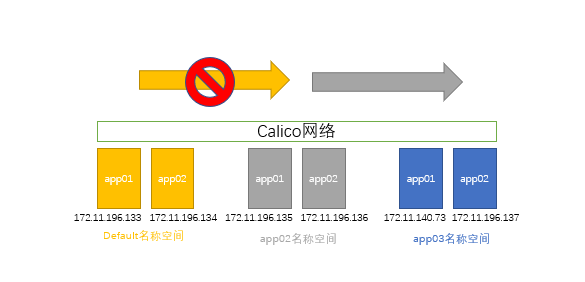

只允许app02空间访问app03名称空间的80端口

image-20221119023505044

  1. 确保之前测试的网络策略删除了

  2. 查看namespace标签

    1
    2
    3
    4
    5
    6
    7
    8
    [root@master networkpolicy]# kubectl get ns --show-labels
    NAME              STATUS   AGE   LABELS
    app02             Active   96m   kubernetes.io/metadata.name=app02
    app03             Active   96m   kubernetes.io/metadata.name=app03
    default           Active   32d   kubernetes.io/metadata.name=default
    kube-node-lease   Active   32d   kubernetes.io/metadata.name=kube-node-lease
    kube-public       Active   32d   kubernetes.io/metadata.name=kube-public
    kube-system       Active   32d   kubernetes.io/metadata.name=kube-system

  3. 创建网络策略

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    [root@master networkpolicy]# kubectl get ns --show-labels
    NAME              STATUS   AGE   LABELS
    app02             Active   96m   kubernetes.io/metadata.name=app02
    app03             Active   96m   kubernetes.io/metadata.name=app03
    default           Active   32d   kubernetes.io/metadata.name=default
    kube-node-lease   Active   32d   kubernetes.io/metadata.name=kube-node-lease
    kube-public       Active   32d   kubernetes.io/metadata.name=kube-public
    kube-system       Active   32d   kubernetes.io/metadata.name=kube-system
    [root@master networkpolicy]# vi network02.yaml
    apiVersion: networking.k8s.io/v1
    kind: NetworkPolicy
    metadata:
      name: allow-app02-in
      namespace: app03
    spec:
      podSelector: {}
      policyTypes:
        - Ingress
      ingress:
        - from:
            - namespaceSelector:
                matchLabels:
                  kubernetes.io/metadata.name: app02
          ports:
            - protocol: TCP
              port: 80
    [root@master networkpolicy]# kubectl apply -f network02.yaml
    networkpolicy.networking.k8s.io/allow-app02-in created

  4. 测试

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    58
    59
    60
    61
    62
    63
    64
    65
    66
    #### app02名称空间的Pod可以访问app03名称空间的Pod

    [root@master networkpolicy]# kubectl exec -it app01 -n app02 -- sh
    / # curl 172.11.140.73
    <!DOCTYPE html>
    <html>
    <head>
    <title>Welcome to nginx!</title>
    <style>
    html { color-scheme: light dark; }
    body { width: 35em; margin: 0 auto;
    font-family: Tahoma, Verdana, Arial, sans-serif; }
    </style>
    </head>
    <body>
    <h1>Welcome to nginx!</h1>
    <p>If you see this page, the nginx web server is successfully installed and
    working. Further configuration is required.</p>

    <p>For online documentation and support please refer to
    <a href="http://nginx.org/">nginx.org</a>.<br/>
    Commercial support is available at
    <a href="http://nginx.com/">nginx.com</a>.</p>

    <p><em>Thank you for using nginx.</em></p>
    </body>
    </html>

    / # curl 172.11.196.137
    <!DOCTYPE html>
    <html>
    <head>
    <title>Welcome to nginx!</title>
    <style>
    html { color-scheme: light dark; }
    body { width: 35em; margin: 0 auto;
    font-family: Tahoma, Verdana, Arial, sans-serif; }
    </style>
    </head>
    <body>
    <h1>Welcome to nginx!</h1>
    <p>If you see this page, the nginx web server is successfully installed and
    working. Further configuration is required.</p>

    <p>For online documentation and support please refer to
    <a href="http://nginx.org/">nginx.org</a>.<br/>
    Commercial support is available at
    <a href="http://nginx.com/">nginx.com</a>.</p>

    <p><em>Thank you for using nginx.</em></p>
    </body>
    </html>
    / #


    #### default名称空间的Pod不可以访问app03名称空间的Pod

    [root@master networkpolicy]# kubectl exec -it app01 -- sh
    / # curl 172.11.196.137
    # 卡死(超时)
    / # ping 172.11.196.137
    PING 172.11.196.137 (172.11.196.137): 56 data bytes
    ^C
    --- 172.11.196.137 ping statistics ---
    8 packets transmitted, 0 packets received, 100% packet loss
    # 同样无法ping通
